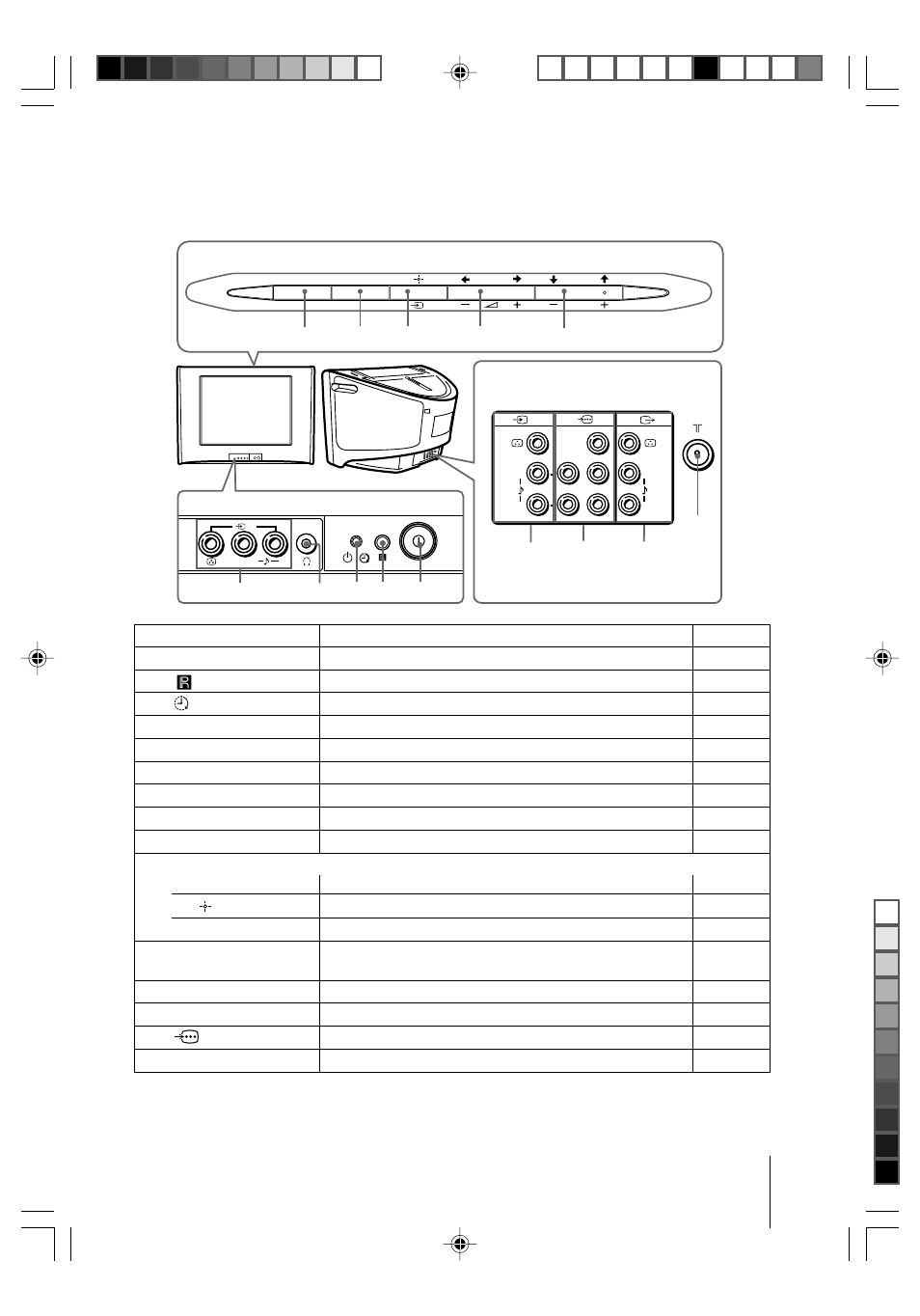

TV front panel
TV rear panel
TV top control panel
Button/Terminal Function Page
1 ! Turn off or turn on the TV. 4
2 Remote control sensor. -
3 Wake Up indicator. 11
3 1 Standby indicator. 4
4 i Headphone jack. -
5 t2 Video input terminal 2. 8
6 PROG +/– Select program number. -
7 2 +/– Adjust volume. -
8 t Select TV or video input. 8
WEGA GATE menu operations
6 , 7 V,v,B,b Select and adjust items. 12
8 Confirm selected items. 12
9 WEGA GATE Display or cancel WEGA GATE menu. 12
0 SOUND MODE Select sound mode options with a 5-Band Graphic 10
Equalizer display.
qa 8 Antenna input terminal. 8
qs T Monitor output terminal. 8
qd Component video input terminal. 9
qf t1 Video input terminal 1. 8
x TV top control, front and rear
panels
