15
Pr
ep
ar
at
io
ns
Connecting to a TV
You can view stored images on a TV. If you have a TV with a component
connection, you can enjoy clearer images by using the supplied component
video cable.
1

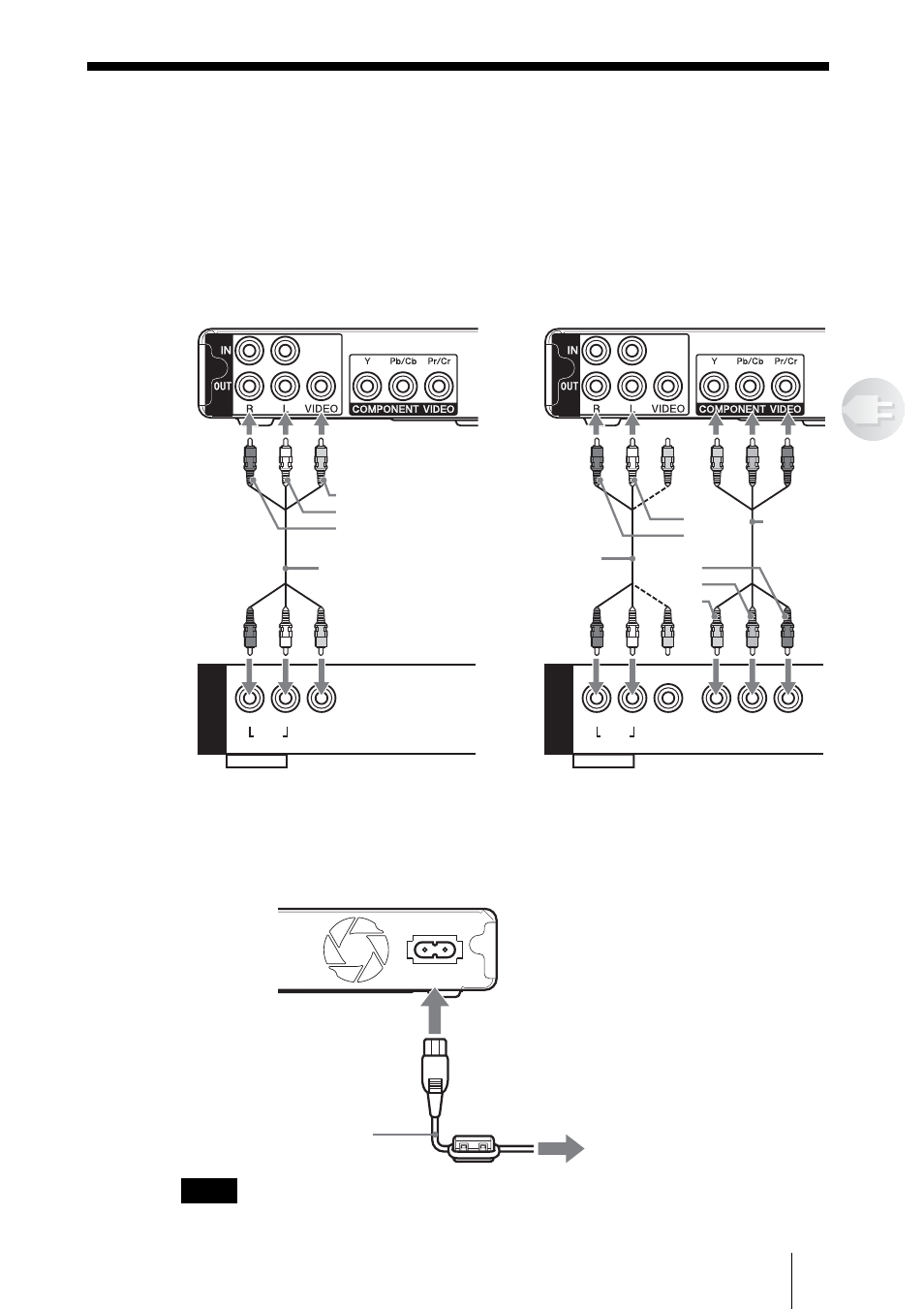

Connect the unit to a TV using the supplied cable as illustrated.
2
Connect the power cord.
Connect the power cord to the AC IN connector of the unit, then connect
the other end to a wall outlet.
Note
Only use the supplied power cord; other power cords are not guaranteed.
TV (without component connection) TV (with component connection)
R L VIDEO
AUDIO
Yellow
White
Red
Audio/video cable
(supplied)
IN
Rear of the unit
TV
Component
video cable
(supplied)
Audio/video
cable (supplied)
R L VIDEO
AUDIO
Y P b/ C b P r/ C r
Y
P b /C b
P r /C r
IN
White
Red
Rear of the unit
TV
AC IN
100-240V
Power cord
(supplied)
To wall outlet
