Arm assembly page 8 – Innovative Office Products 7000 User Manual
Page 9

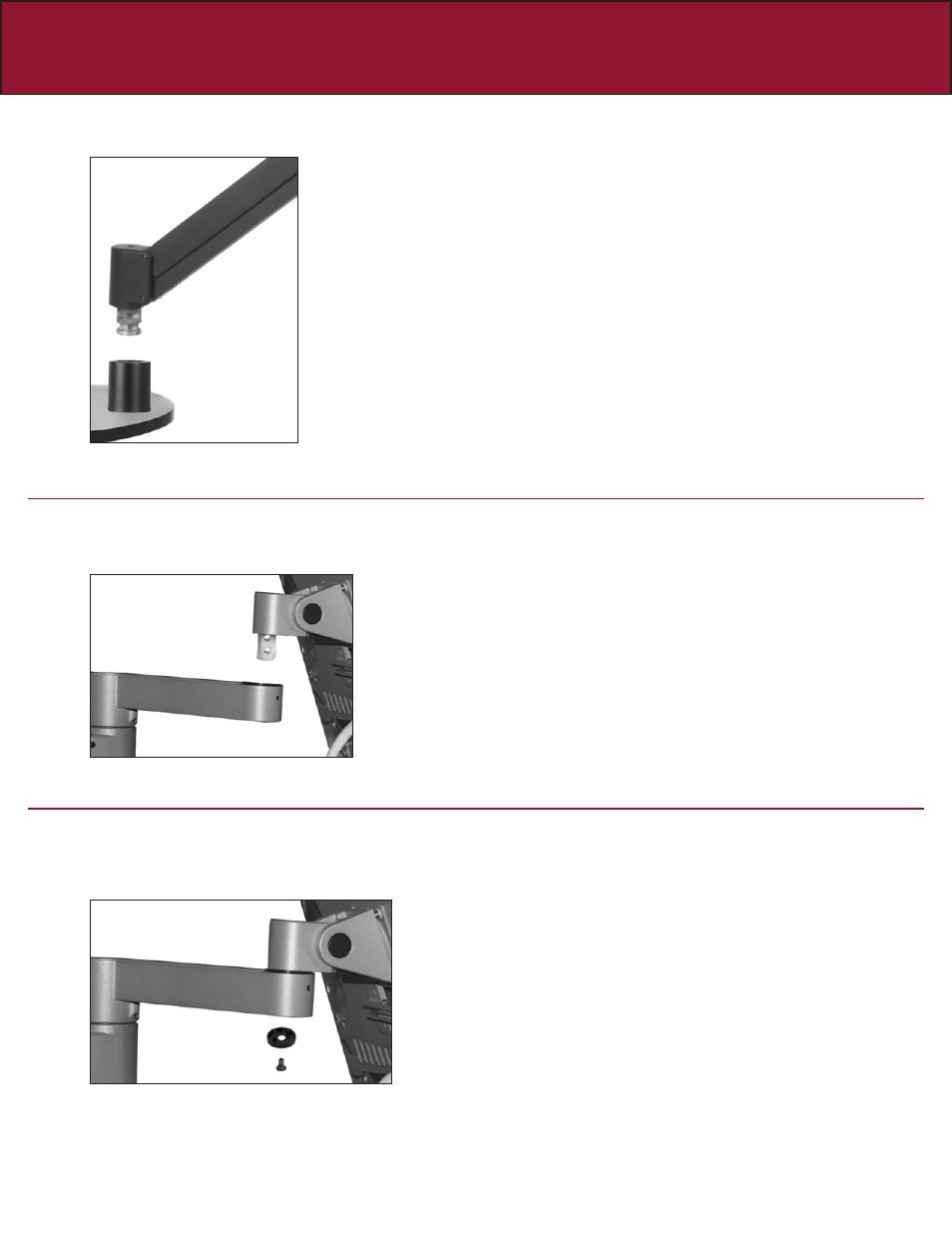

After the mount is securely fastened, insert the shaft of the arm into the mount
cup. For the example the Through-Desk configuration was used.
Step 1
Step 2
After securing the bracket to the flat panel monitor, insert the shaft of the
tilt mechanism into the forearm.
Fasten the 10-32 x 3/8" Philips Flat Head screw and washer into the
hole in the bottom of the tilt mechanism to secure the monitor onto
the arm.
Step 3
Arm Assembly Page 8
