Technical Specifications
OUTPUT POWER RATING 300 Watts RMS minimum continuous @ <3% THD into 2 or 4 ohms, 0.4VRMS input
TOTAL SYSTEM GAIN 76dB, @1kHz w/levels up, tones flat; -3dB @30Hz, 15kHz
TONE CONTROL RANGE
Bass: ±12dB @ 40Hz
Midrange: +12dB, -15dB @ Frequency selected (220, 450, 800, 1.6k or 3kHz)
Treble: ±12dB @ 4kHz
Ultra Low: +3dB @ 40Hz, -12dB @ 500Hz
Ultra High: +8dB @ 8kHz
Bright: +7dB @ 2kHz
GRAPHIC EQ RANGE ±12dB @ 40Hz, 90Hz, 180Hz, 300Hz, 500Hz, 1kHz, 2kHz, 4kHz, 10kHz
GRAPHIC EQ LEVEL +8dB, -10dB
SIGNAL TO NOISE RATIO 80dB typical
TUBE COMPLEMENT 12AX7 (5), 12AU7 (3), 6550 (6)
POWER REQUIREMENTS
Domestic: 120VAC, 60Hz, 460VA
Export: 100/115VAC 50/60Hz, 460VA
230VAC, 50/60Hz, 460VA
SIZE AND WEIGHT 19”W x 3.75”H x 15.75”D; 70 lbs
SVT-2 PRO Bass Amplifier

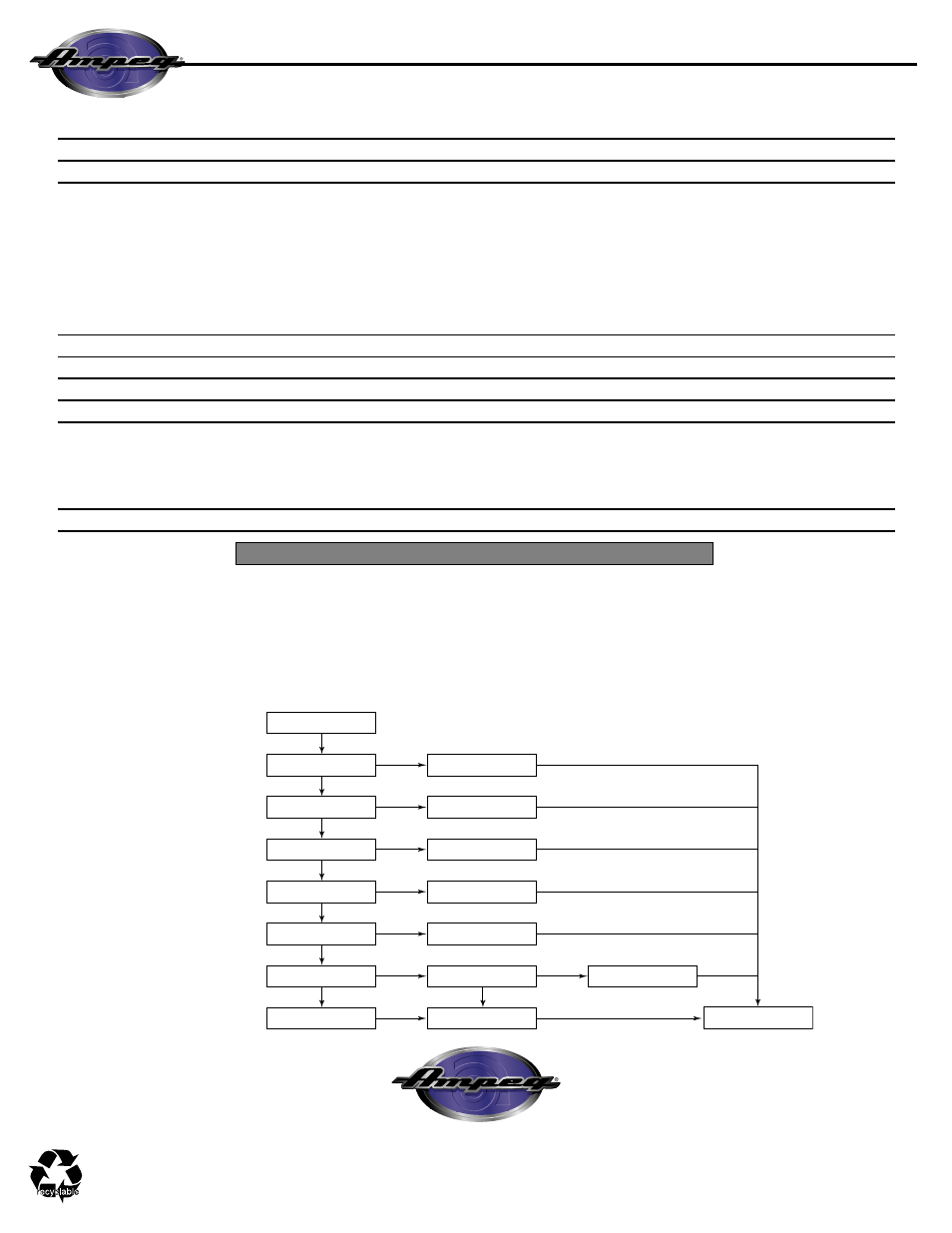

Troubleshooting
In the unlikely event that your SVT-2 PRO should stop working properly (or just stop working), take a few minutes to trou-
bleshoot it before you call for service. You can save yourself a lot of time and sometimes money by doing it yourself, and
often the cure for the problem is something quite simple. If you think the problem may be worn out tubes, see page 7 for
symptoms of tube failure.
If the problem isn’t
covered here, or if
the steps led you to
“Service Amp”,
then contact your
Ampeg dealer for
service information.
Also, you should
refer your amp for
servicing if it gets
dropped, has liquid
spilled into it, or
sustains damage to
its power cord.
Disconnect all external devices
except bass and speaker cabinet
No sound, bad sound?
YES
LEDs on?
YES
NO Check AC outlet, power cord,
power switch, fuses; retry.
Check standby switch (20
second delay); retry.
Power LED green?
YES
NO
Green bias LEDs on?
YES
NO
Inst. volume & amp gain
to max – peak LED flashes?
YES
NO
Check bass cable; retry.
All controls set properly?
YES
NO
Sound OK?
YES
NO NO
YES
Go for it!
NO
Check speaker cable; retry.
Set controls; retry.
Re-bias or see page 7 for
possible faults; retry.
Bias LEDs flash
with signal?
Possible power
amp problem.
If these steps fail to solve
problem, service amp.
