Arkon CM983 - Manual

SM283 - CM983 | Lighter Socket Mobile Phone or PDA Mount
Consumer Hotline:
(USA) (800) 841-0884
(INT'L) (626) 254-9005
Mon-Fri. 9am-5pm, PST www.arkon.com
Arcadia, CA 91006 USA
Designed in USA | Made in Taiwan
© Copyright 2008 Arkon Resources, Inc.
The Mobile Mounting Specialists TM
Safety Precautions
Do not install Arkon products over an air bag cover or within the air
bag deployment zone. Arkon Resources, Inc. assumes no responsi-
bility of liability for injury or death as a result of car crashes and/or
air bag deployment.
Arkon Resources, Inc. is not responsible for any damages caused to
your car, your device, or yourself due to the installation or use of
this mounting solution.
SM020
CM083 CM083
CM090
Step 1.
Step 2.
Step 3.
Step 4.
Step 5.
Insert the lighter socket plug
(A) completely into the vehicle's
12V / lighter socket.
Rotate the adjustment tightening ring (B) until the inserted
end of the pedestal expands and is held securely in the 12V /
lighter socket.
Using both hands, carefully bend the pedestal to desired angle.
Adjust the angle of the pedestal arm by tightening the wing
nut
(C) to the desired placement angle.
Attach your cradle or device to the pedestal by inserting the
single T-tab
(D) into the T-slot (E). Readjust the angle and
rotation of the head by tightening the wing nut (C).

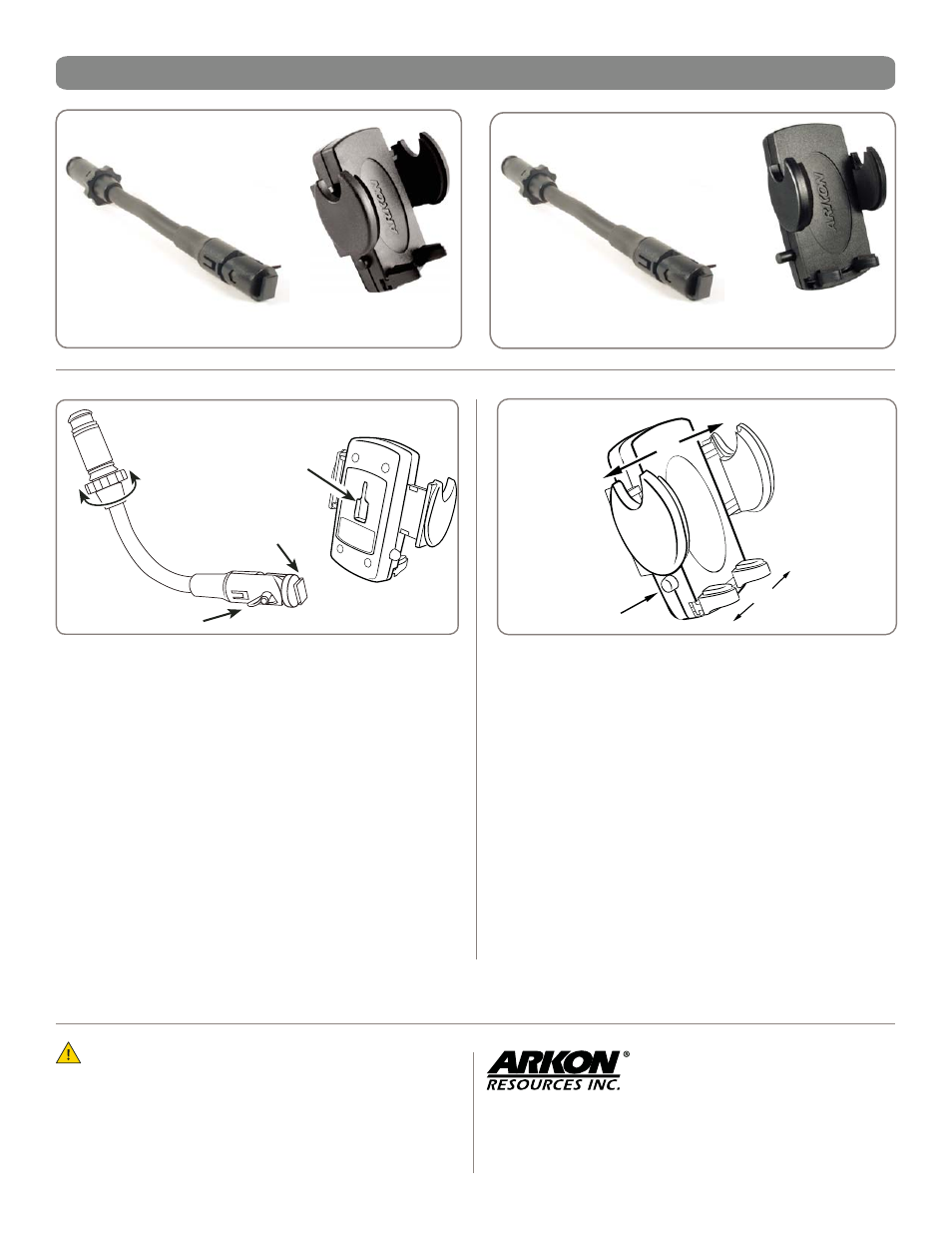

Installation Instructions
(H)
(G)
(F)
(A)
(B)
(C)
(D)
(E)
Step 1.
Step 2.
Step 3.
Universal Cradle Instructions (Sold Separately)
If necessary, adjust the support legs (G) by sliding them laterally.
These provide support for your device.
Place device on the support legs (G) and squeeze the side grip
arms (F) until they fit securely to the device.
Push the release button (H) in order to release the device from
the cradle.
(Sold Separately)
(Sold Separately)
(Sold Separately)
