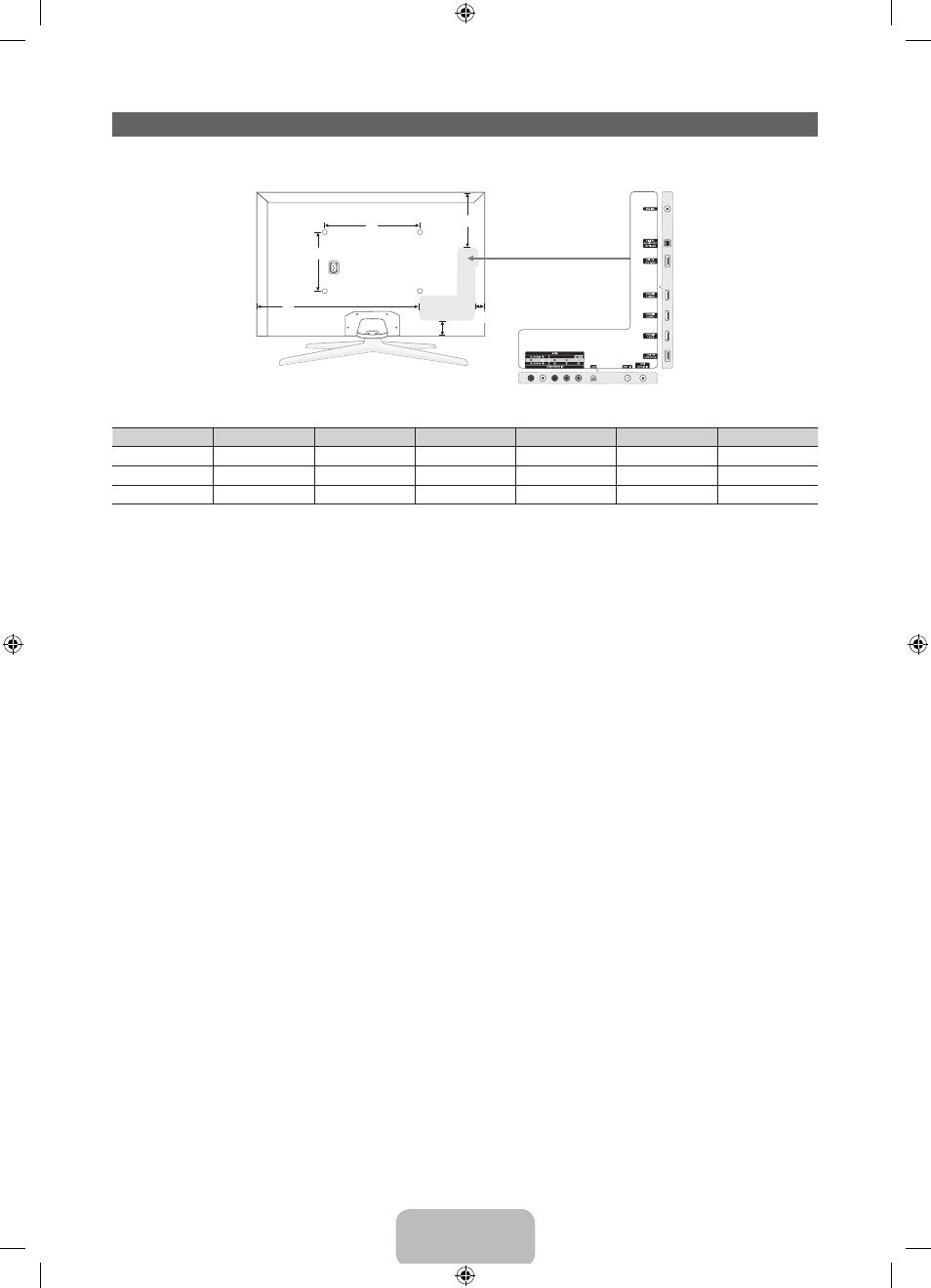

Dimensions
■ Jack panel detail / Rear view
6
4
5
3
1
2
(Unit: inches)
Model name 1 2 3 4 5 6
PN51E7000 15.7 15.7 33.1 3.2 4.8 11.3
PN60E7000 15.7 23.6 39.8 2.8 4.3 14.2
PN64E7000 15.7 23.6 42.9 5.5 6.3 16.1
NOTE: All drawings are not necessarily to scale. Some dimensions are subject to change without prior
notice. Refer to the dimensions prior to performing installation of your TV. Not responsible for typographical
or printed errors.
