Connecting a Digital Audio System

There are many types of digital audio systems on the market today.

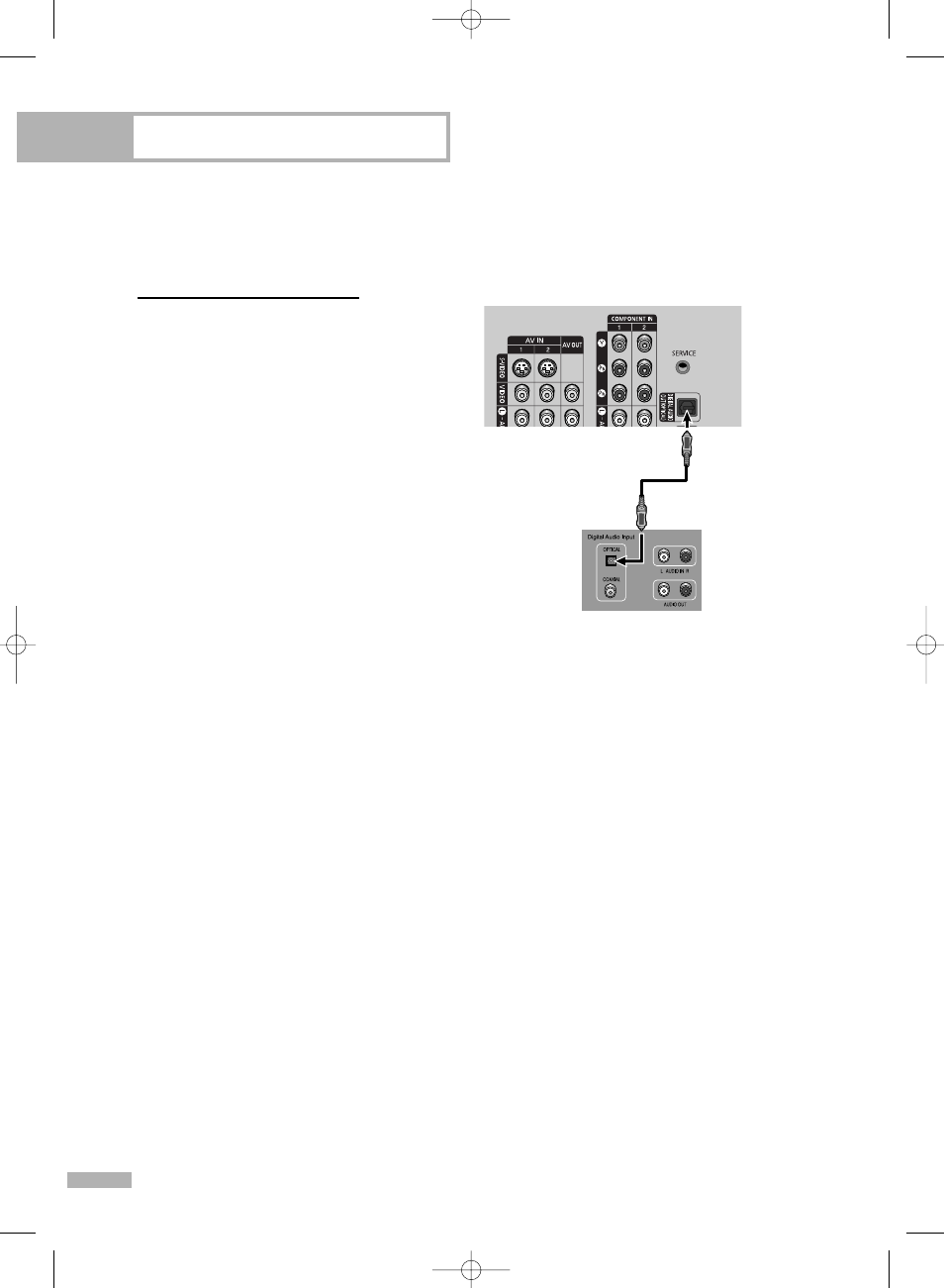

A simplified illustration of an audio system is shown below.
For more information, see your audio system owner’s manual.

If your audio system has an
optical digital audio input,
connect to the DIGITAL
AUDIO OUT (OPTICAL) jack
on the TV.

NOTES

• OPTICAL: converts the electric

signal into an optical light
signal, and transmits it through
glass fibers.

• When a Digital audio system is

connected to the Digital Audio
Out (Optical) terminal:
Decrease the gain (volume) of
the TV, and adjust the volume
level with the audio system's
volume control.

TV Side Panel

Audio System
