Install the Stand

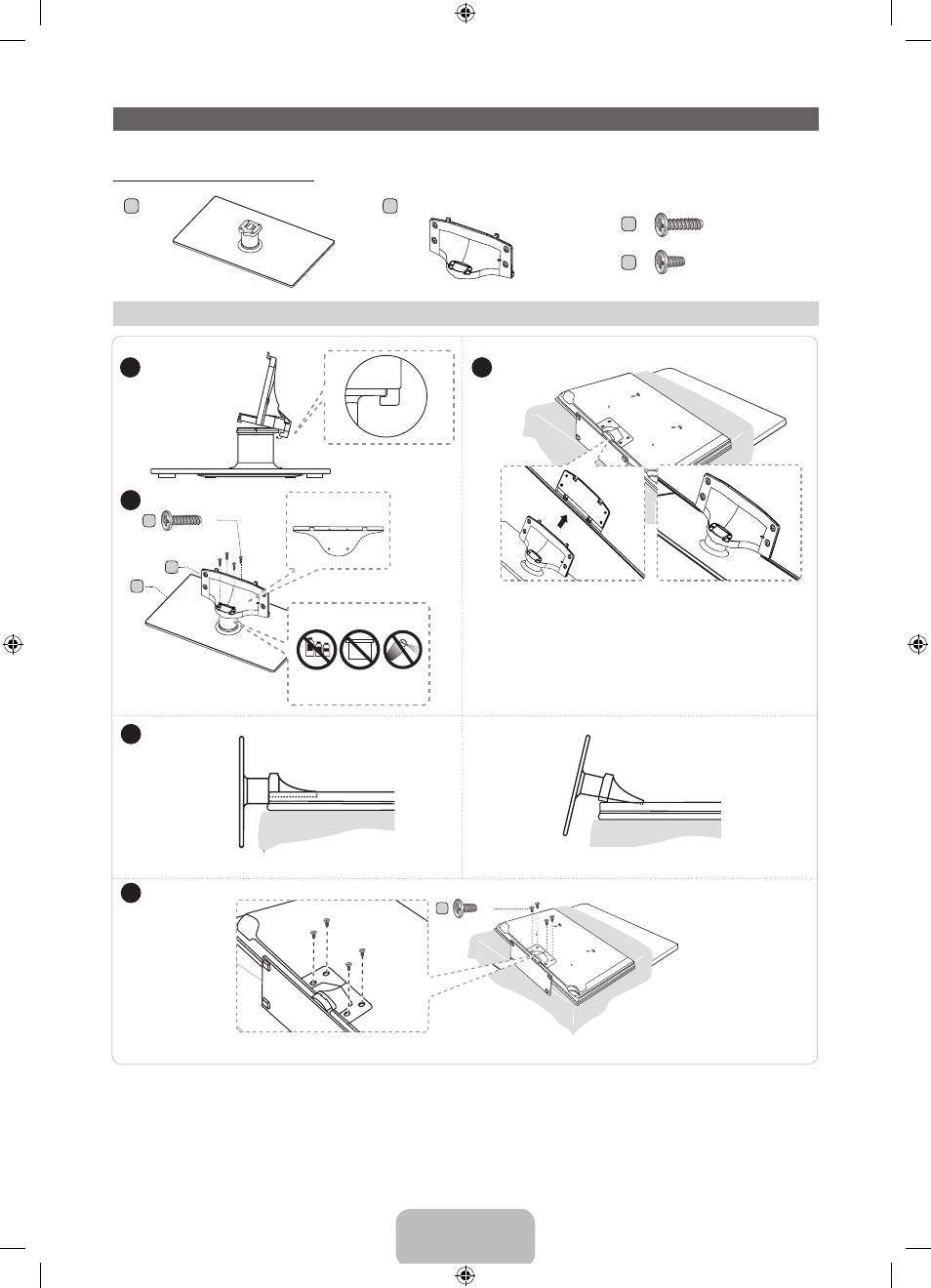

See the separate stand installation guide for more detailed instructions.
51 inches model only (PN51D550)
Stand (1EA) Guide Stand (1EA) Screws (8EA)
C
D
x4 (M4 X L12)
x4 (M4 X L8)
B 1 EA A 1 EA
Side View 4
5
D
(M4 X L8)
x4
(Correct assembly)
B
A
Rear
Front
C
(M4 X L12)
x4
Top View
DO NOT USE
CHEMICALS
DO NOT USE
GREASE
DO NOT USE
OIL
ATTENTION
1 3
2
✎
Place a soft cloth over the table to protect the TV,
and then place the TV on the cloth screen side
down.
✎
Insert the Stand Guide into the slot of TV bottom
side.
