■ S-Video and Component video output are
available only if your TV supports S-Video
input or Component video input, respectively.
If S-Video or Component video output does
not work, check the TV connections and the
TV input selection settings.
Note
S-Video Cable
(not supplied)
INPUT
S-VIDEO

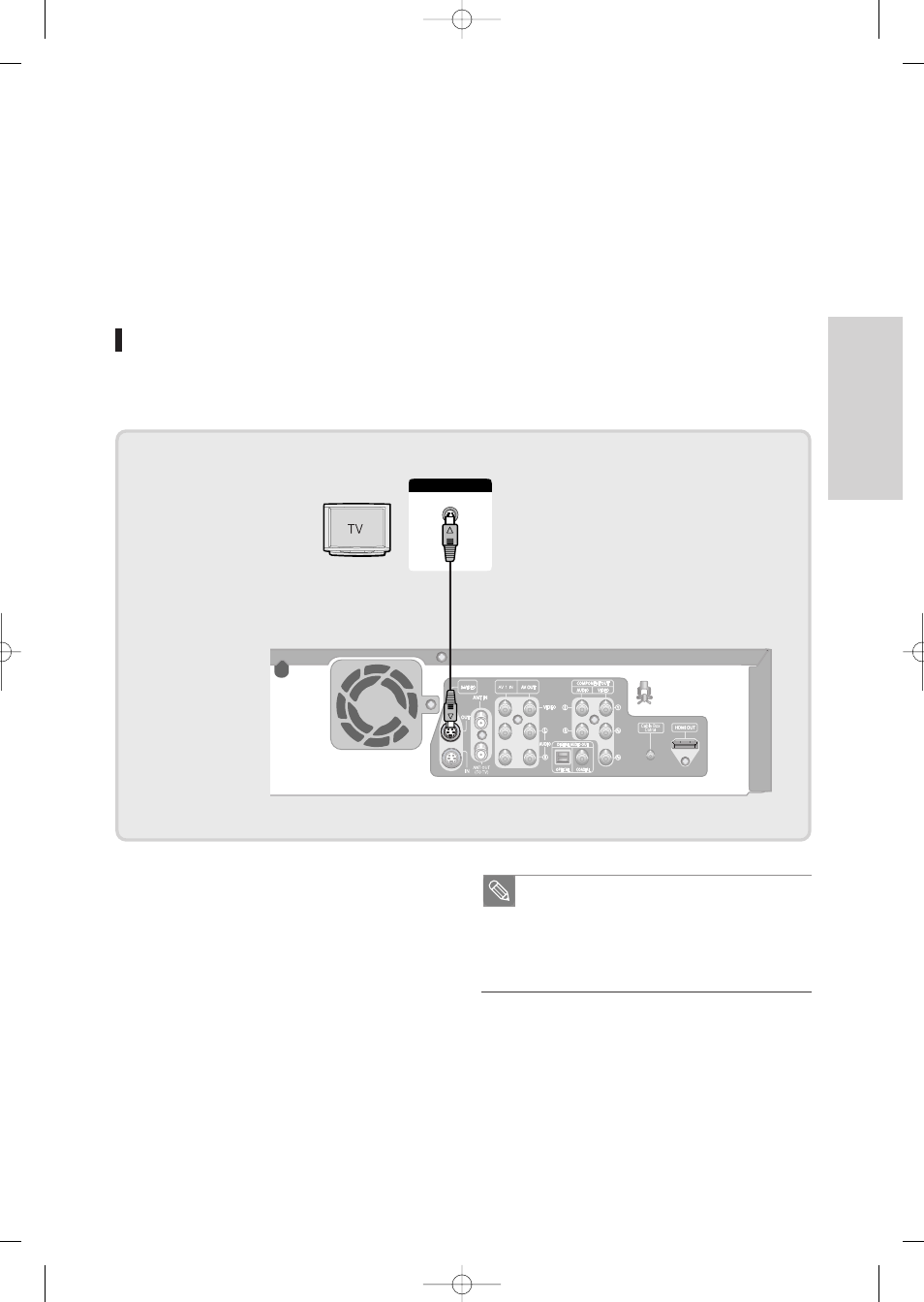

Connecting to an S-Video input jack
Connect an S-Video cable(not supplied) between the S-VIDEO OUT jack on DVD Recorder & VCR and S-VIDEO
IN jack on your TV.
• You will enjoy high quality images. S-Video separates
the picture element into black and white (Y) and color
(C) signals to present clearer images than regular
video input mode.
• Connect audio cables(white and red) between the
AUDIO OUT jacks on the DVD Recorder & VCR and
AUDIO IN jacks on TV(or AV amplifier).
(See pages 21 ~ 23)
