F31

TOWN SQUARE

CENTRAL THERMOSTAT

LESS VOLUME CONTROL

MODEL NUMBER:

TRIM KITS:
T555.730 Central Thermostat Trim Kit

Less volume control. L

ESS

Valve.

ROUGH VALVES:
R510 Rough Valve Body only

1/2" NPT inlets/outlets. L

ESS

Trim.

R530 Rough Valve Body only

3/4" NPT inlets/outlets. L

ESS

Trim.

NOTE:

• Requires separate on/off volume control.

• When used as a Bath/Shower:

EITHER

- a separate diverter valve (such as R420 or R430)

- a diverter tub spout (requires twin ell - Model #8888.120)

IS REQUIRED

SUGGESTED SPECIFICATION:

Central Thermostat shall feature a cast brass valve body. Thermostat shall be a wax element shuttle valve. Shall also feature 1/2"

or 3/4" NPT inlets and outlets. Fitting shall be American Standard Model # T555.730.____ (Trim Kit) and R510 or R530 (Rough Valve).

CODES AND STANDARDS

These products meet or exceed the following

codes and standards:

ASSE 1016

ASME A112.18.1

CSA B125

PRODUCT FEATURES:

Brass Casting:

Highest quality faucet material for durability

& long life.

Wax Thermostatic Unit:

Permits shuttle valve to move

between the hot and cold seats to maintain the pre-selected

constant water temperature.

Back to Back Capable:

Hot and cold can be reversed.

Spring-Loaded Check Valves:

When the hot and cold

water enters the fitting, both supplies pass through the

spring-loaded check valves to prevent cross flow of hot and

cold water.

Integrated Stop Valves:

Ensure easy cleaning and servicing.

Adjustable Hot Limit Safety Stop:

Limits the amount of

hot water allowed to mix with cold. Reduces the risk of

accidental scalding. Maximum water temperature limit may be

reduced to 104 or 109 degrees Fahrenheit.

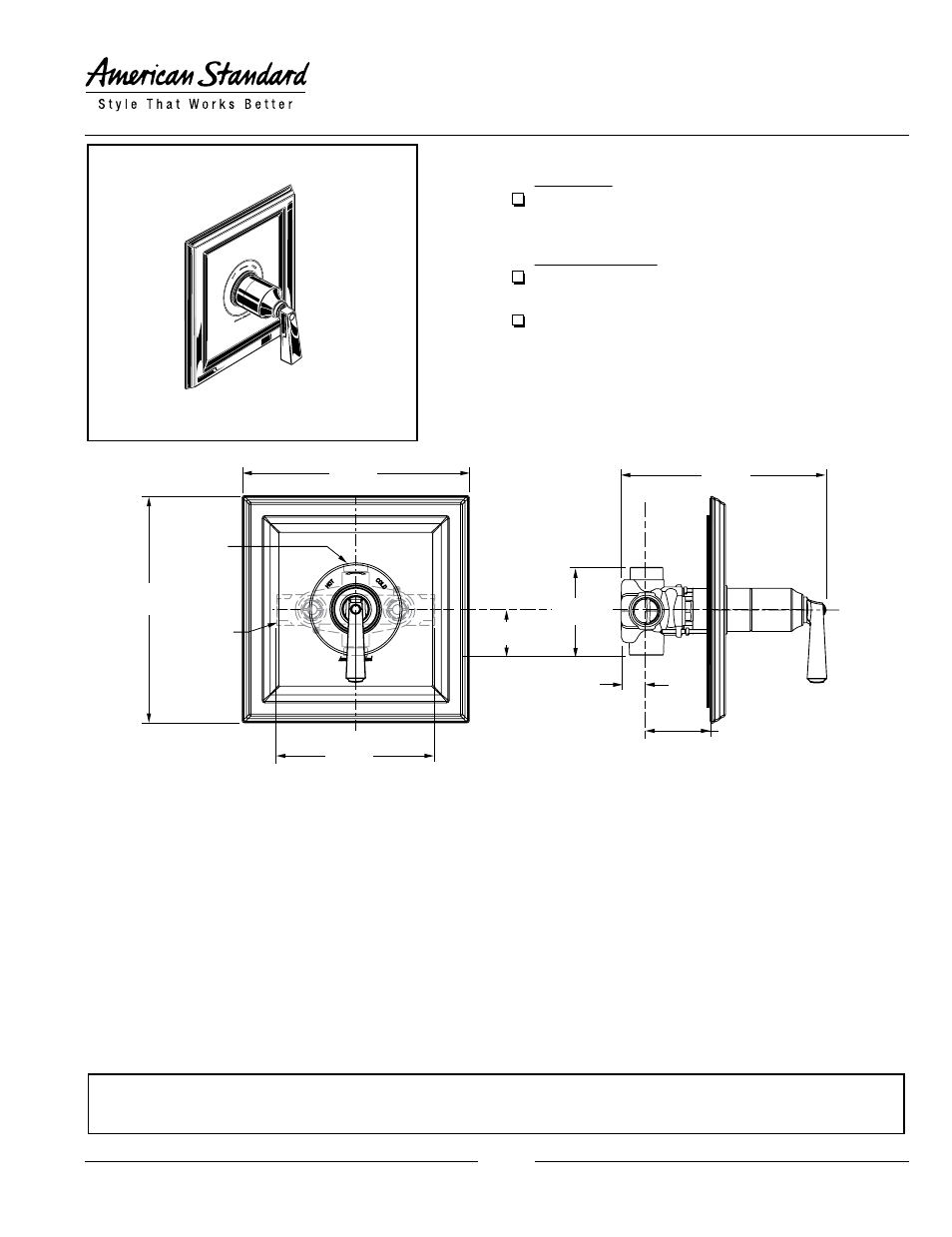

T555.730

Central Thermostat Trim Kit. Less volume control.

230mm

(9)

230mm

(9)

86mm

(3-3/8)

34mm

(1-3/8)

191mm

(7-1/2)

150mm

(5-7/8)

25mm

(1)

R510

1/2 NPT

R530

3/4 NPT

R510

1/2 NPT

R530

3/4 NPT

FLOW RATE*

GALLONS PER MINUTE

I N L E T P R E S S U R E ( P S I )

*Flow rates shown are for mixed hot and cold.

100

3/4"
1/2"

NOTE: •

When used as a Bath/Shower a separate diverter valve is required (such as 1660.430 or 1660.440).

Requires twin ell twin ell - (Model #8888.120 - must be ordered separately) for use with diverter spouts.

• Requires separate on/off volume control.

Finish Options

Product
Number

Description

Polished

Chrome

002

PVD

Blackened

Bronze

068

PVD

Satin

Nickel

295

R510

R530

Rough Valve Body less trim.

1/2" inlets/outlets.

Rough Valve Body less trim.

3/4" inlets/outlets.

ROUGH & TRIM MUST BE ORDERED SEPARATELY.

48mm to 68mm

(2 to 2-5/8)

TRIM KITS**

Product
Number

Description

ROUGH VALVE

BODIES

Meets the American Disabilities Act Guidelines

and

ANSI A117.1 Requirements for the

physically challenged.

GENERAL DESCRIPTION:

Cast brass valve body. The single unit contains one

handle, which sets the desired temperature. The

temperature is maintained by a wax element moving a

shuttle valve between hot and cold. Includes Hot Limit

Safety Stop. Maximum temperature limit is 112°F.

Escutcheon plate is stamped brass.

Available with 1/2"

or 3/4" NPT inlets and outlets.

The valve has a high flow

rate, ideal for mutiple outlet installations.
