Avalon Stoves Whidbey - Manual

4
4
5
6
7
3
2
1
1” to 1-1/2” Thick Cem
ent Board
41 1/2”
10” Min
25” Min
™
Visit us online:
www.avalonfirestyle.com
We reserve the right to improve our products at any time without prior notification. Photos and illustrations are for descriptive purposes only. Copyright ©2007 #98800001
All Avalon firestyles are proudly made in the U. S. A.

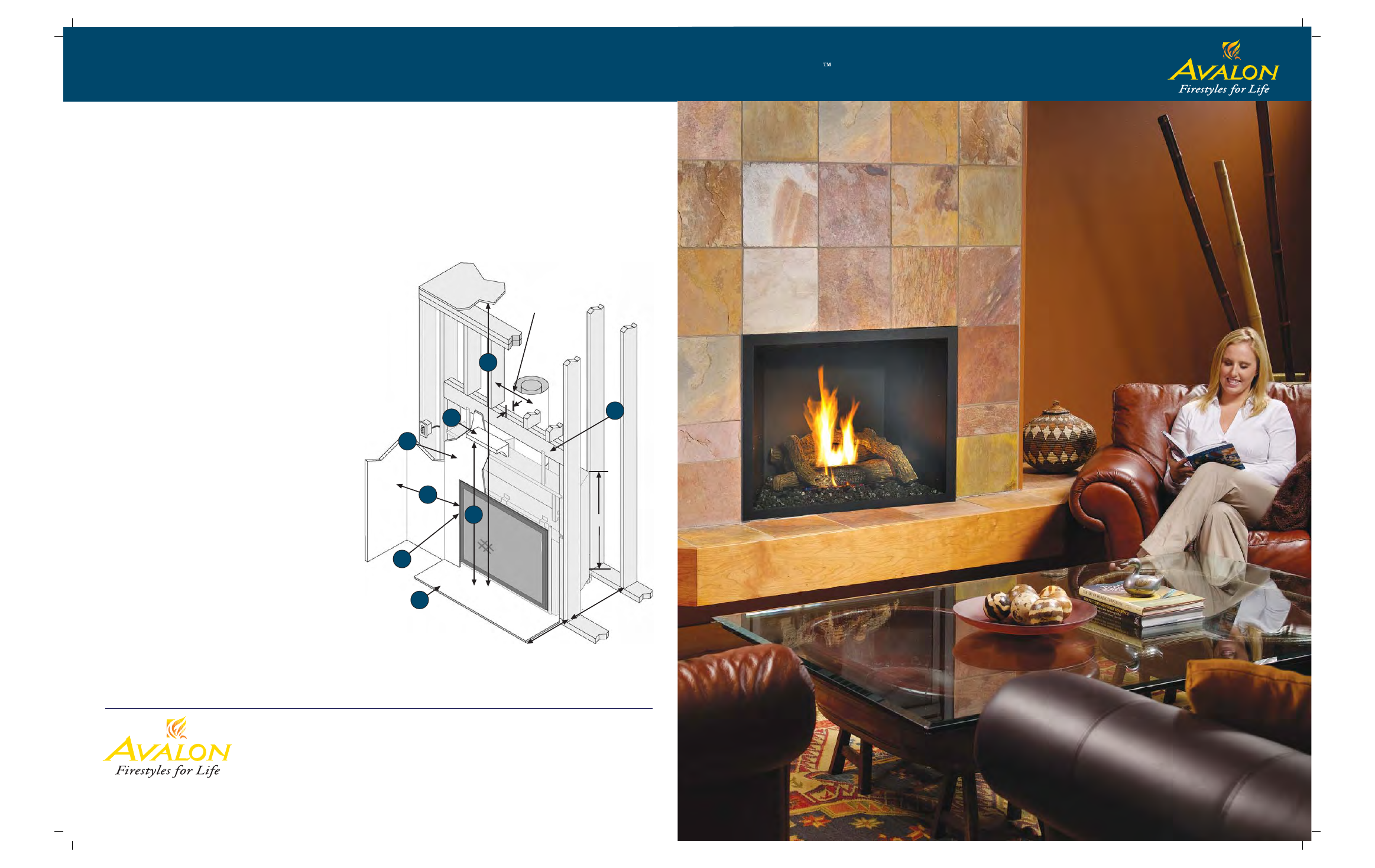

Framing Dimensions:
See Installation Manual
1. Hearth Requirements: Extends 10” from face and 49 1/2” wide
when installed flush. Not required when raised 6”
(See Installation Manual for details)
2. Non-combustible facing - Two side and two top
pieces are provided with the fireplace
3. Side Wall Clearance: 11”
4. Mantle Clearances: 50” from base of fireplace.
4. Maximum allowed mantle depth: 12”
5. Minimum fireplace enclosure height 60”.
5. Measured from base of fireplace.
6. Minimum framing: 50” wide x 56 3/4” tall x 25” deep.
7. Facing Requirements: Provided fiber board or other
7. non-combustible material must extend from the base of the
7. fireplace to the header and to the framing members on both sides.
Standard Features:
• No grills for a traditional masonry fireplace look.
• Durable, high temperature, tempered glass with safety mesh
• screen (removable if desired).
• 1080 sq. in. of fireviewing area
• Realistic, 4 piece detailed log set cast from real firewood.
• Digital Home Comfort™ Control System can be operated by
• the hand-held remote control and the wireless wall control.
• The Electronic Gas Valve can be run for greater efficiency in
• the “Intermittent Pilot Mode” with the gas pilot turned off
• until you need it or “Standing Pilot Mode” with the gas pilot
• always on, for reliable cold weather operation.
• Natural (NG) or Propane (LP) operation.
• Uses Simpson Duravent 8 5/8” x 6” chimney.
• Seven Year “Real World” Warranty.
Gas Input Rating & Performance:
• Adjustable High Heat Systems
- 20,800 -38,000 Btu’s (NG)
- 23,500 - 38,000 Btu’s (LP)
• Heater Rated Fireplace: Heat up to 1,000 sq. ft.*
*Heating capacity will vary depending on the temperature
zone you live in.
Tested and Certified by OMNI-Test Lab. Inc. to ANSI Z21.88b “Vented Gas-Fired Direct
Fireplace Heater”.
Must be installed in accordance with all local codes, if any, if not, follow ANSI Z223.1 and the requirements listed in the Owner’s Manual.
Note: Improper installation of your gas appliance or failure to operate it in accordance to the guidelines detailed in the Owner’s Manual may
negate your warranty. We recommend all Avalon appliances be installed and maintained on an annual basis by your specialty hearth retailer.
Maintain a 14”min.
width between studs
and max. 3 1/2” depth
of studs for chimney
clearance
™
Whidbey
Clean Face Gas Fireplace
