Rear panel – American Audio DX4 User Manual

Page 7

17. POWER CONNECTION - This connector is used to supply main power to the unit via the included
detachable power adaptor. Use only the supplied AC power adaptor. This cord is designed to fi t in
one direction only. Do not attempt to force a cord in if it does not fi t, be sure the cord is being inserted
properly
18. BALANCED XLR MASTER OUTPUTS - The Master Output includes a pair XLR Balanced
JACKS as well as a pair RCA UNBALANCED JACKS (19). The 3-pin XLR jacks send a high current
balanced output signal. These jacks should be used when you will be driving an amp or other audio
equipment with a balanced input, or whenever you will be running a signal line greater than 15 feet.
Always, use these jacks whenever possible.
19. RCA MASTER OUTPUTS - The Master Output includes a pair XLR BALANCED JACKS (18) as
well as a pair RCA Unbalanced Jacks. The RCA jacks send a low current unbalanced output signal.
These jacks should only be used for shorter cable runs to signal processors or looping to another
mixer. For cable runs greater than 15 feet use the XLR BALANCED JACKS (18).
20. CHANNEL 4: LINE 6 INPUT JACKS - These Jacks are used for line level inputs. Connect CD
players or Tape Decks to LINE inputs. Line level musical instruments with stereo outputs such as
Rhythm Machines or Samplers should also be connected to LINE inputs. Turntables should only be
connected to “Phono” inputs. The red colored RCA jack represents the right channel input and the
white represents the left channel input. Input volume will be controlled by the channel four FADER
(4).
21. CHANNEL 3: LINE 4 INPUT JACKS - These Jacks are used for line level inputs. Connect CD
players or Tape Decks to LINE inputs. Line level musical instruments with stereo outputs such as
Rhythm Machines or Samplers should also be connected to LINE inputs. Turntables should only be
connected to “Phono” inputs. The red colored RCA jack represents the right channel input and the
white represents the left channel input. Input volume will be controlled by the channel three FADER
(4).

DX4™

Controls and Features Cont.

American Audio

- www.americandj.com - DX4™ Instruction Manual Page 7

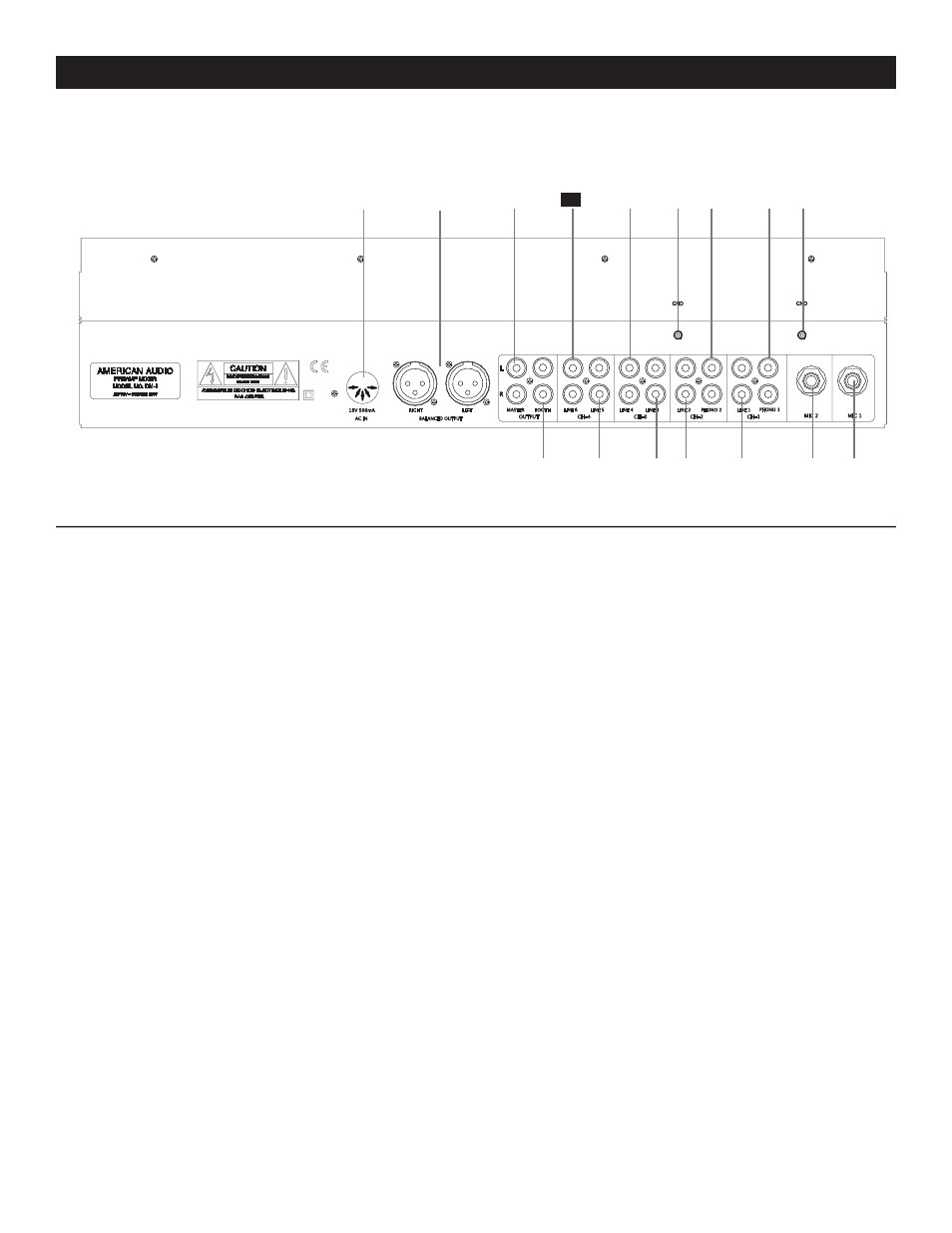

Rear Panel

RISK OF ELECTRIC SHOCK

PAS OUVRIR.

AVIS:RISQUE DE CHOC ELECTRIQUE-NE

CAUTION

DO NOT OPEN

AMERICAN AUDIO

PREAMP MIXER

MODEL NO. DX-4

AC 18V ~ 50/60HZ 20W
