Page 22

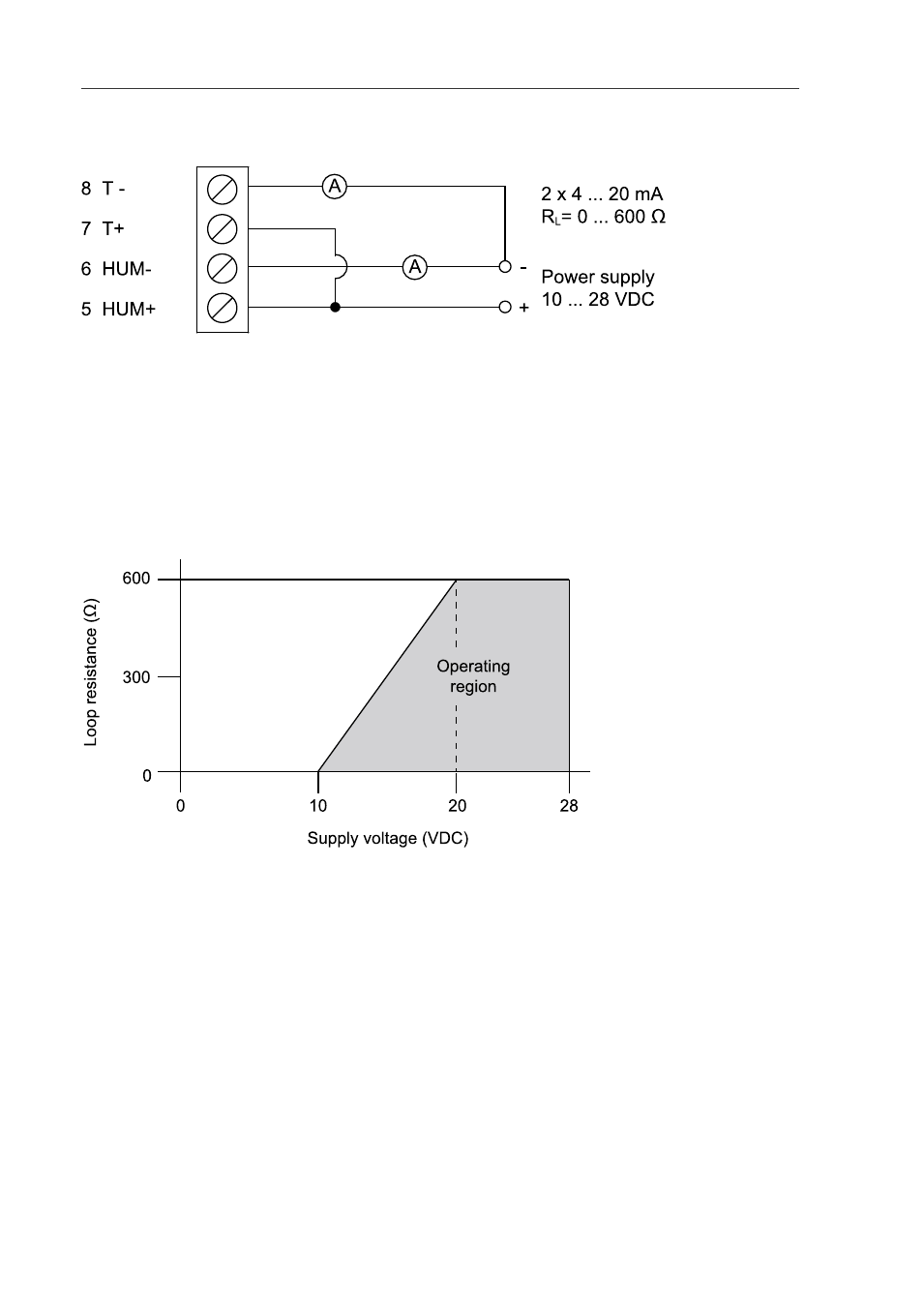

Wiring Both Current Loops With a Single Power Supply
Figure 9 HMDW110 Wiring with Single Power Supply
HMDW110 Power Supply Requirements
HMDW110 series transmitters are designed for a supply voltage range of
10 ... 28 VDC. The minimum required voltage depends on the loop resistance
(0 ... 600 Ω) as shown below.
Figure 10 HMDW110 Supply Voltage Operating Region
20
3 Installation
