2. CONNECTIONS AND OPERATION
continued …

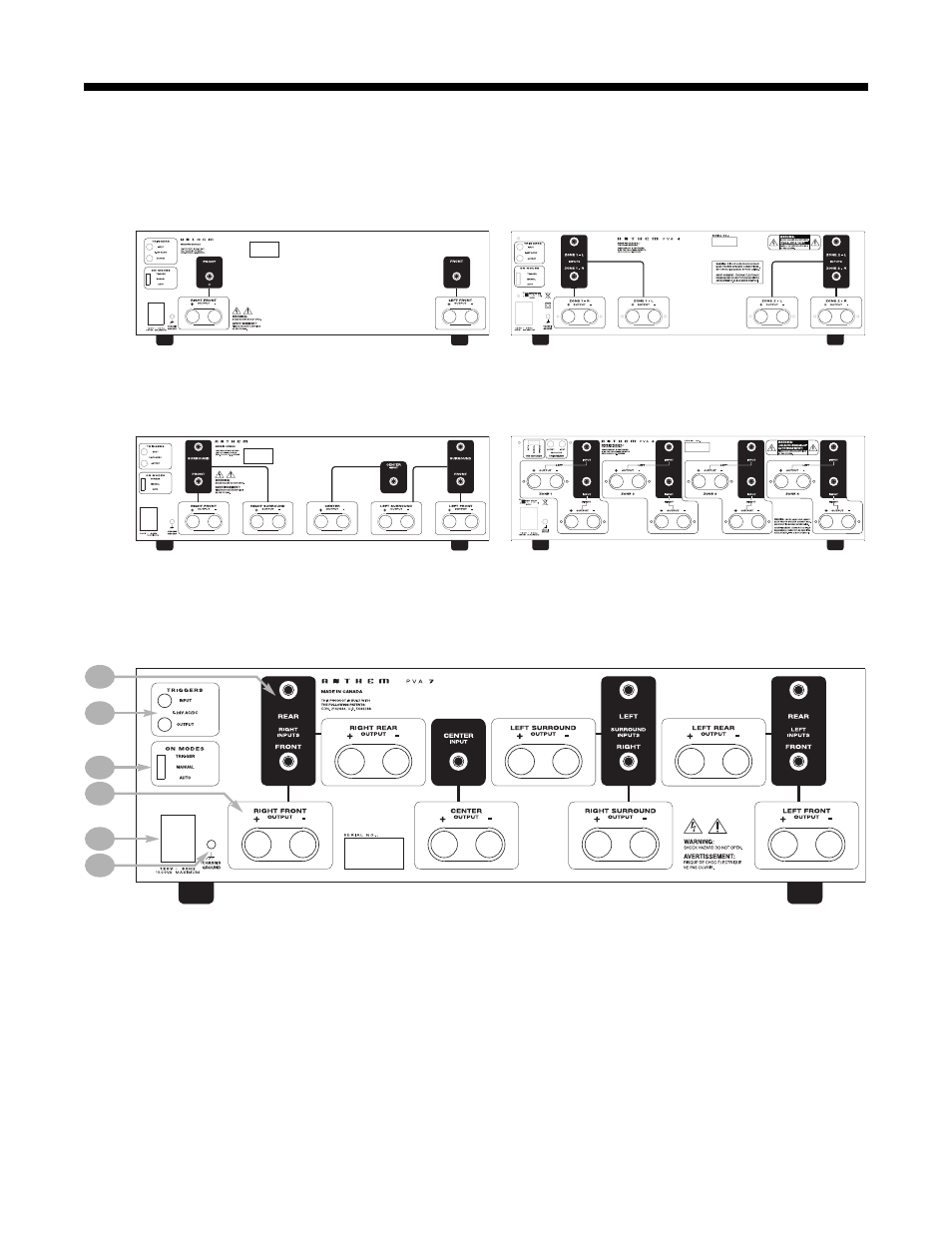

2.4 REAR PANEL LAYOUT
P V A 2
L E F T I N P U T R I G H T
I N P U T
S E R I A L N O . :
1 – Single Ended RCA Inputs
2 – Trigger Input and Output
3 – On-Mode (Trigger / Manual / Auto)
4 – Speaker Binding Posts
5 – Power Cord Socket
6 – Chassis Ground
PVA 2 PVA 4
P V A 5
S E R I A L N O . :
R I G H T I N P U T S L E F T I N P U T S
1 1 2 5 VA
PVA 5 PVA 8
PVA 7
1
2
3
4
5
6
