zv36SSfSS – GE Monogram 36" Stainless Steel Professional Hood

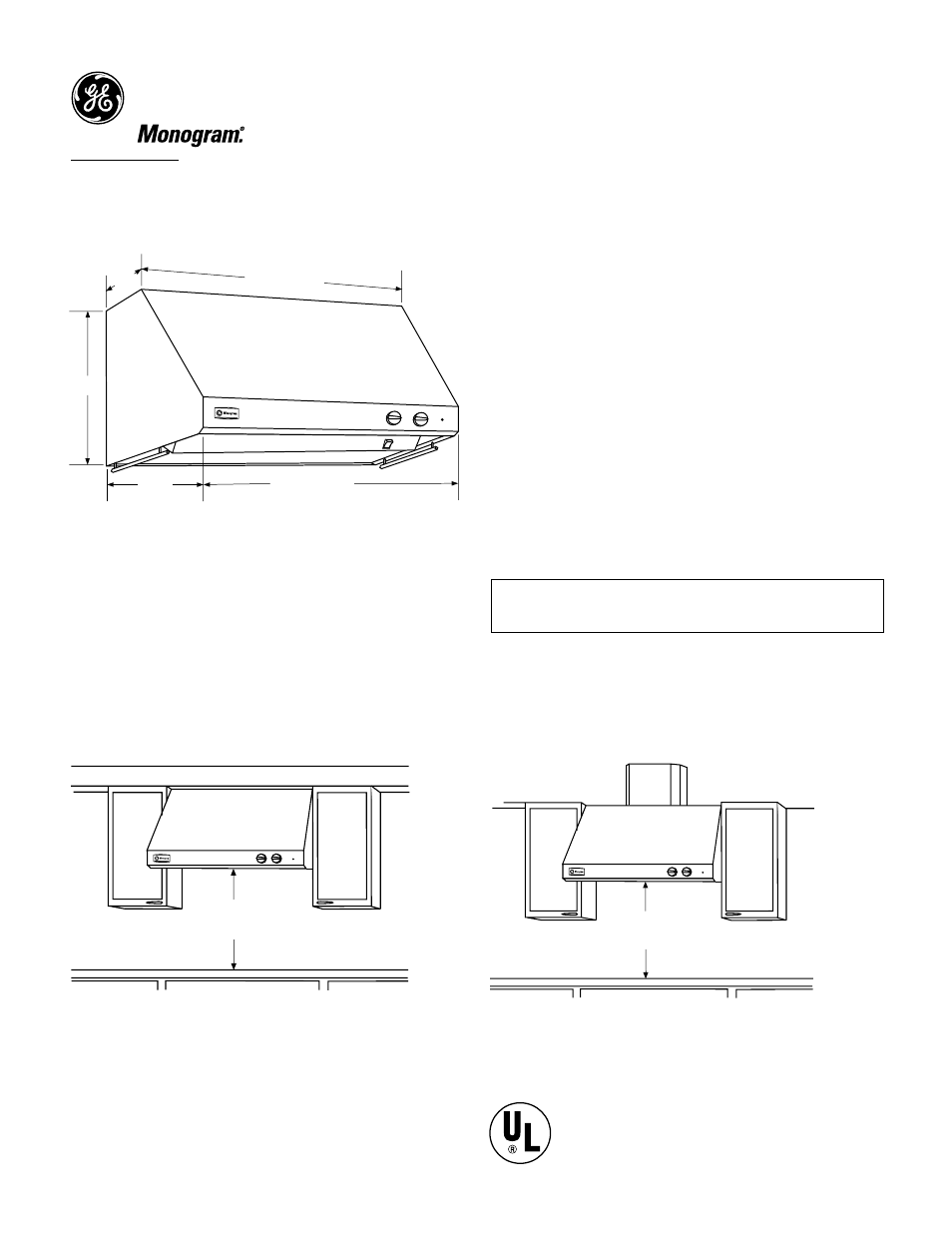

Dimensions and Specifications (in inches)

For answers to your Monogram,

®

GE Profile

or

GE appliance questions, visit our website at

GEAppliances.com or call

GE Answer Center

®

service, 800.626.2000.

Listed by

Underwriters

Laboratories

Model ZV36S With Straight Sides

18"

35-15/16"

35-15/16"

12"

25"

Installation Clearances

These vent hoods are designed to be installed onto a wall or beneath a

soffit or cabinet.
• Install these hoods* 30" Min. to 36" Max. above the cooking surface.
*These hoods may be installed 24" min. above a gas or electric drop-in

style cooktop. Always observe the 30" to 36" clearance when installed

over any professional style cooktop or range.

Note: Clearances may vary due to type of cooking product and local

codes. Check with local inspectors to be sure standard is applicable.

Soffit Installation

SOFFIT

Soffit Installation

30" MIN.

36" MAX.

In this installation the ductwork running from the top of the hood will

be concealed in the soffit or upper cabinetry.

Wall Mount Installation

Wall Mount Installation

30" MIN.

36" MAX.

For this installation, a decorative duct cover is available to conceal the

ductwork running from the top of the hood. Use of the duct cover requires

special consideration to the installation height above the countertop.

Specification Revised 6/11
