Operating This Jukebox on a SCSI Bus

Default SCSI IDs in the Jukebox When Using Basic SCSI Addressing
and When Using LUN Mode

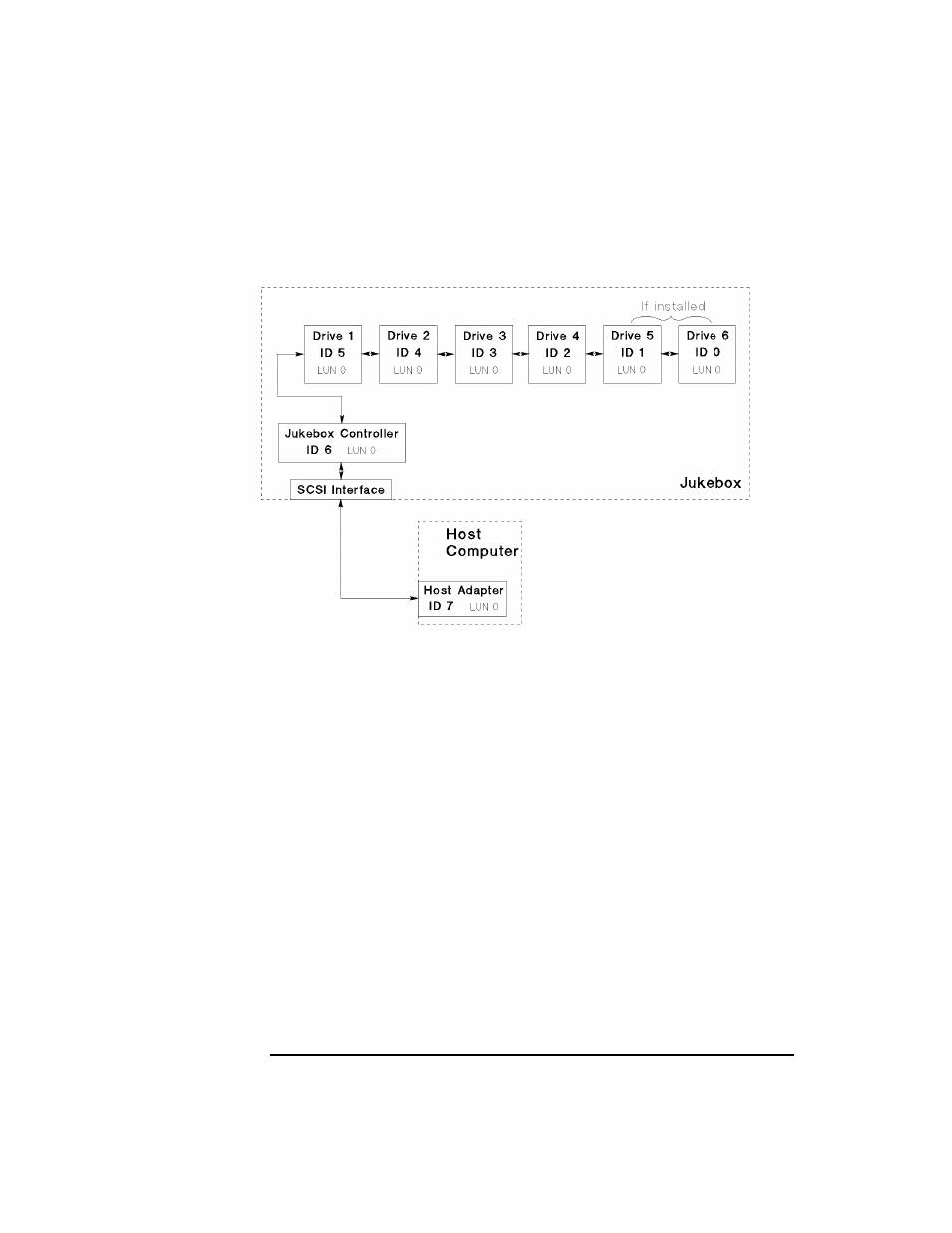

Figure B-2

Four or Six Drives, One Host Adapter, Basic SCSI Addressing

Displays on the Control Panel

Under CHOOSE LUN MODE * menu >> LUN MODE OFF

Under SCSI IDs * > VIEW IDs * >

BUS 1 * >> JXBX ID 6 LUN 0

DRV 1 ID 5 LUN 0

DRV 2 ID 4 LUN 0

DRV 3 ID 3 LUN 0

DRV 4 ID 2 LUN 0

DRV 5 ID 1 LUN 0

(if installed)

DRV 6 ID 0 LUN 0

(if installed)
