P/N CSLCRSPK Rev: A
LCR THEATER SPEAKER FEATURES
Built for the home theater experience
Directed sound field
– A83C - Patent-pending, rotating, 3-way design with angled
tweeter and midrange for pin-point accuracy
– A53W - 15° Angled baffle, perfect for placement above or
below plasma/LCR screens
Flexible configurations - Use for left, right, center and rear
or side surround
Timbre-matched - Constructed with woven kevlar woofer/midrange
drivers and titanium tweeters and voiced to sound perfect together
Ideal for whole-house audio applications
High power handling
Designed to blend in with any home environment
Limited Lifetime Warranty
Category A83C A53W
System Type 3-Way, Ceiling 2-Way MTM Design, In-Wall
Woofer 8" Woven Kevlar Dual 5.25" Woven Kevlar
Midrange 2.5" Woven Kevlar N/A
Tweeter Pivoting 3/4" Titanium Pivoting 1" Titanium
Crossover 2nd Order Custom Q @ 250 Hz & 3 kHz 3rd Order Custom Q & Slope 2.4 kHz
Sensitivity 92 dB 88 dB
Frequency Response 28 Hz – 22 kHz 40 Hz – 20 kHz
Power 175 W 150 W
Impedance 6 Ohms 6 Ohms
Switches Treble/Bass Treble/Bass
Cutout Dimensions 11-1/4" (286 mm) 7-1/4" x 14-3/8" (184 mm x 365 mm)
Outside Dimensions 12-1/8" (308 mm) 8-3/8" x 15-7/16" (213 mm x 392 mm)
Depth 6-1/16" (178 mm)* 4" (102 mm)*
Pre-Construction Bracket BK82C BK52W
LCR THEATER SPEAKER SPECIFICATIONS

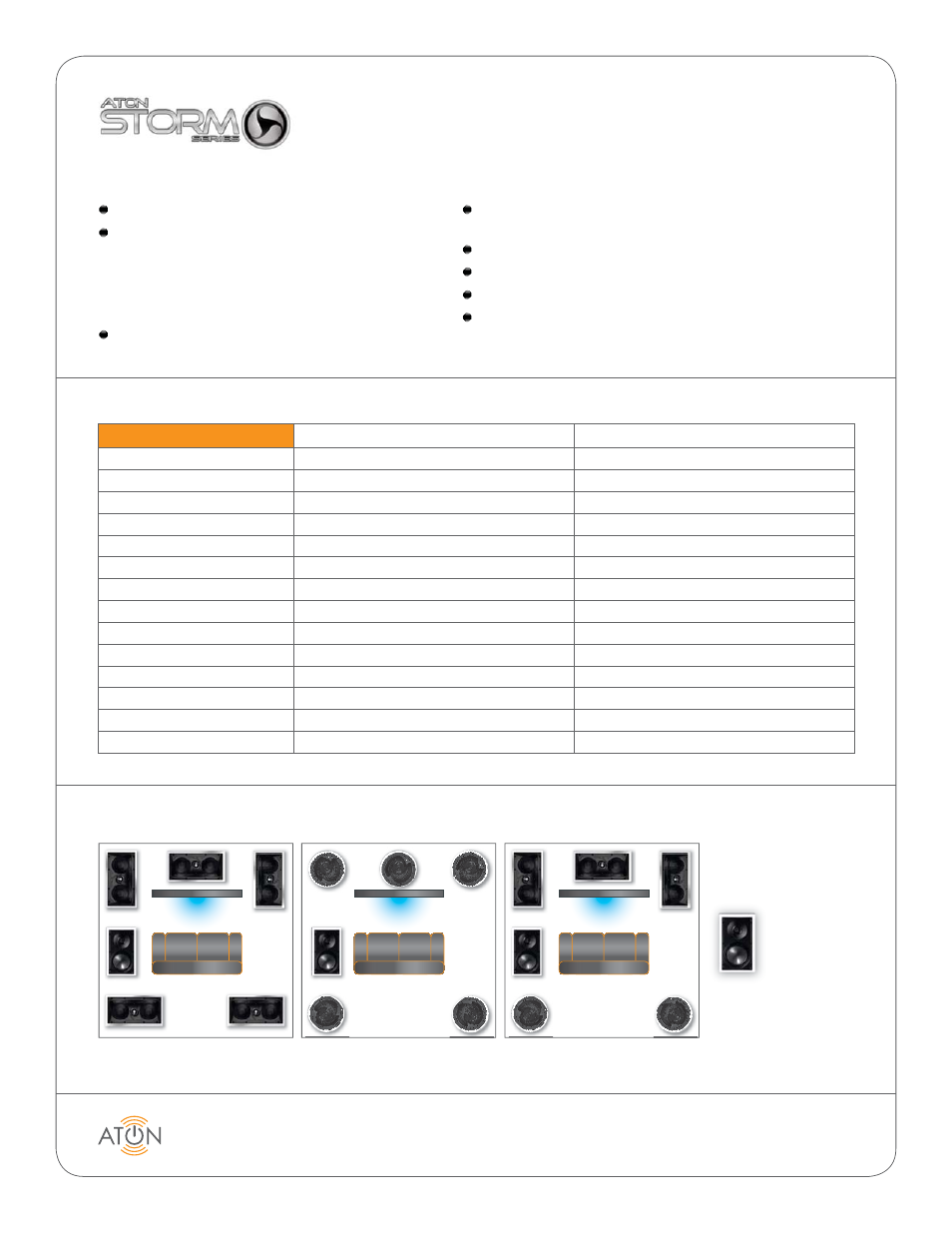

5-CHANNEL SURROUND SOUND POPULAR SPEAKER LAYOUTS
A53W SURROUND A83C SURROUND A53W & A83C SURROUND
TV TV TV
* A83C requires a minimum ceiling joist height of 6 inches. A53W's depth is compatible with all 2x4 walls.
A82SW
IN-WALL SUB
