I N S TA L L AT I O N I N S T RU C T I O N S

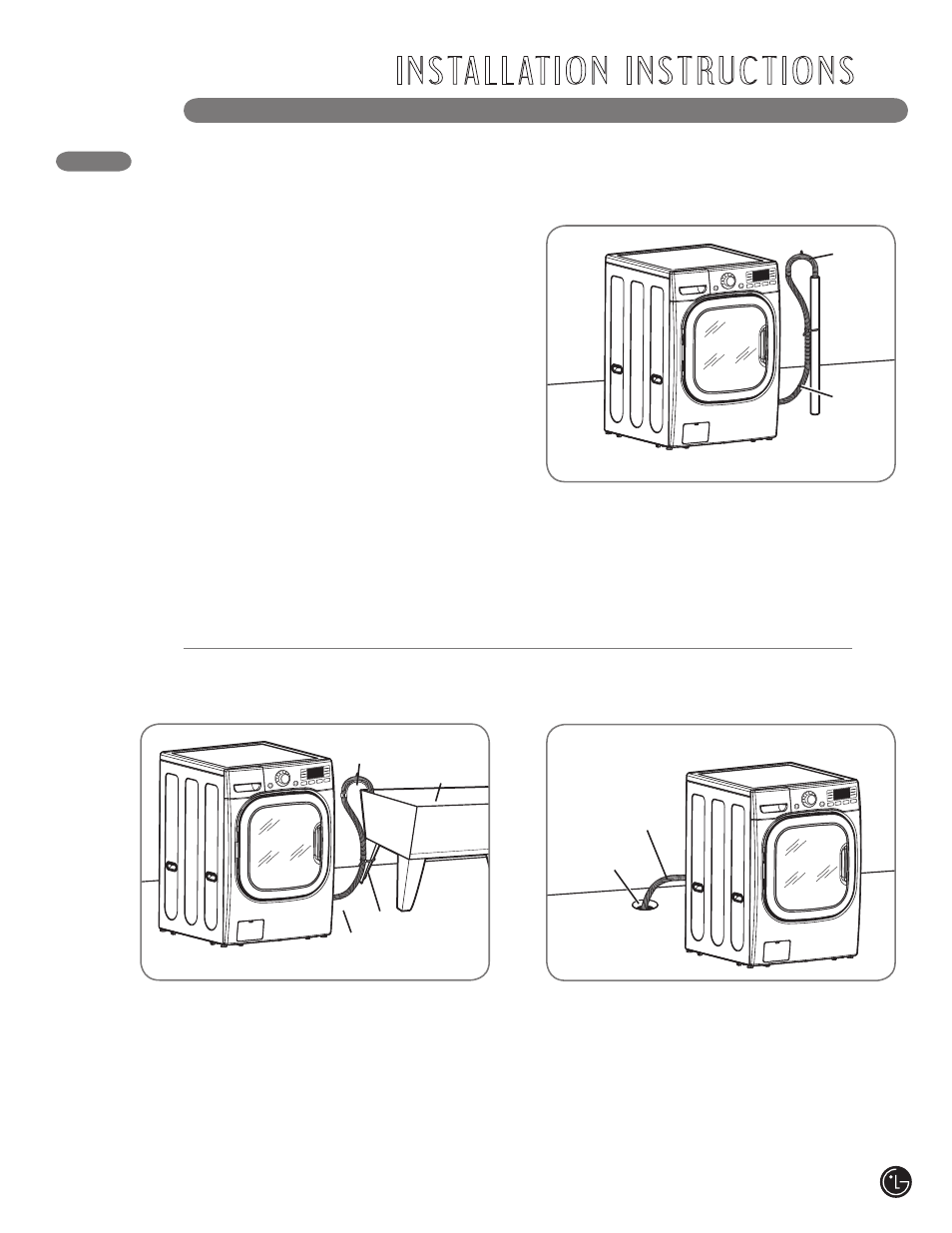

CONNECTINg THE DRAIN LINE
Insert the end of the drain hose into the floor
drain. Secure the hose in place to prevent it
from moving.
Drain Hose
Floor Drain
Option 3: Floor Drain
Stand
Pipe
Tie Strap
Clip the end of the hose into the elbow bracket.
Insert the end of the drain hose into a standpipe.
Use tie strap to secure the drain hose in place.
NOTE: Total height of the hose end should not
exceed 96 in. (244.8 cm) from the bottom of the
washer.
Option 1: Standpipe
Elbow
Bracket
Drain
Hose
Clip the end of the hose into the elbow bracket.
Hang the end of the drain hose over the side of
the laundry tub. Use tie strap to secure the drain
hose in place.
NOTE: Total height of the hose end should not
exceed 96 in. (244.8 cm) from the bottom of the
washer.
Laundry
Tub
Option 2: Laundry Tub
Elbow
Bracket
Tie
Strap
Drain
Hose
• The drain hose should always be properly
secured. Failure to properly secure the drain
hose can result in flooding and property
damage.
• Do not install the end of the drain hose higher
than 96 in. (244.8 cm) above the bottom of the
washer.
• The drain must be installed in accordance with
any applicable local codes and regulations.
• Make sure that the water lines are not stretched,
pinched, crushed, or kinked.
