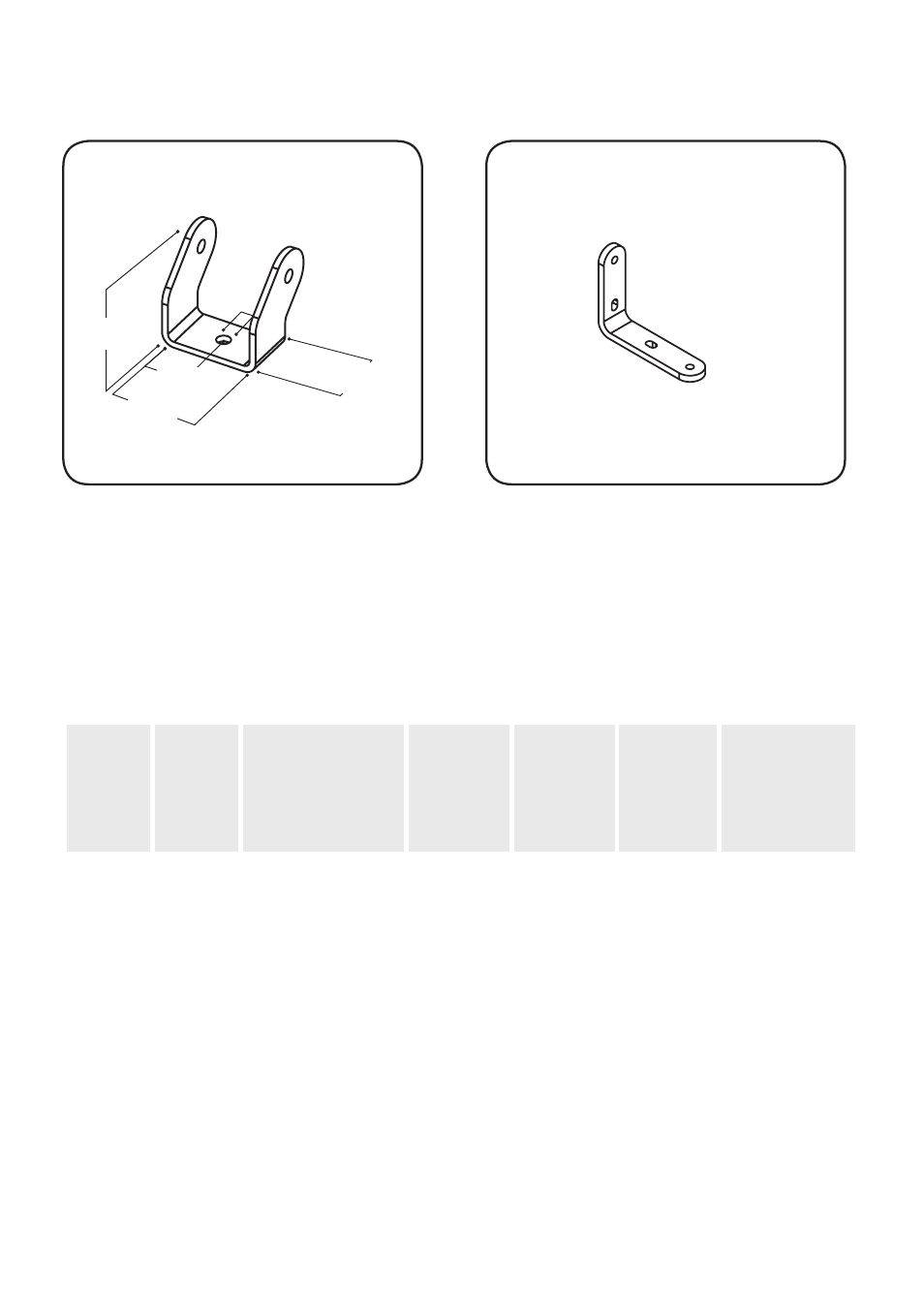

Technical Drawings
(not to scale)
Optional Bracketry
Wall Mount
Standard Bracketry
RM 25 PoE
Specifications
InfRA-RED Series
Input
Output
PoE
Photocell
Adjustable
Power
Weight
Dimensions
L x W x D
PoE or
12V DC
24AC/DC
12W
IEEE802.3af
Compliant Interface
Power classification
(class 0)
CAT5 Cable
Integrated
(adjustable
sensitivity)
10% - 100%
0.8kg
(1.8lbs)
75 x 100 x 54mm
3” x 4” x 2”
(approx)
Command and Control
Integrated Power Supply features
• Adjustable photocell
• Adjustable power
• Telemetry input
8.5mm
(0.3”)
25mm
(1”)
23.5mm
(0.9”)
47mm
(1.9”)
48mm
(1.9”)
