Incoming services, Condensing units blucube – Airedale BluCube 10-48kW User Manual
Page 17
Condensing Units
BluCube
™
Condensing Units
17
Installation and Maintenance Manual 7222094: 11/2013

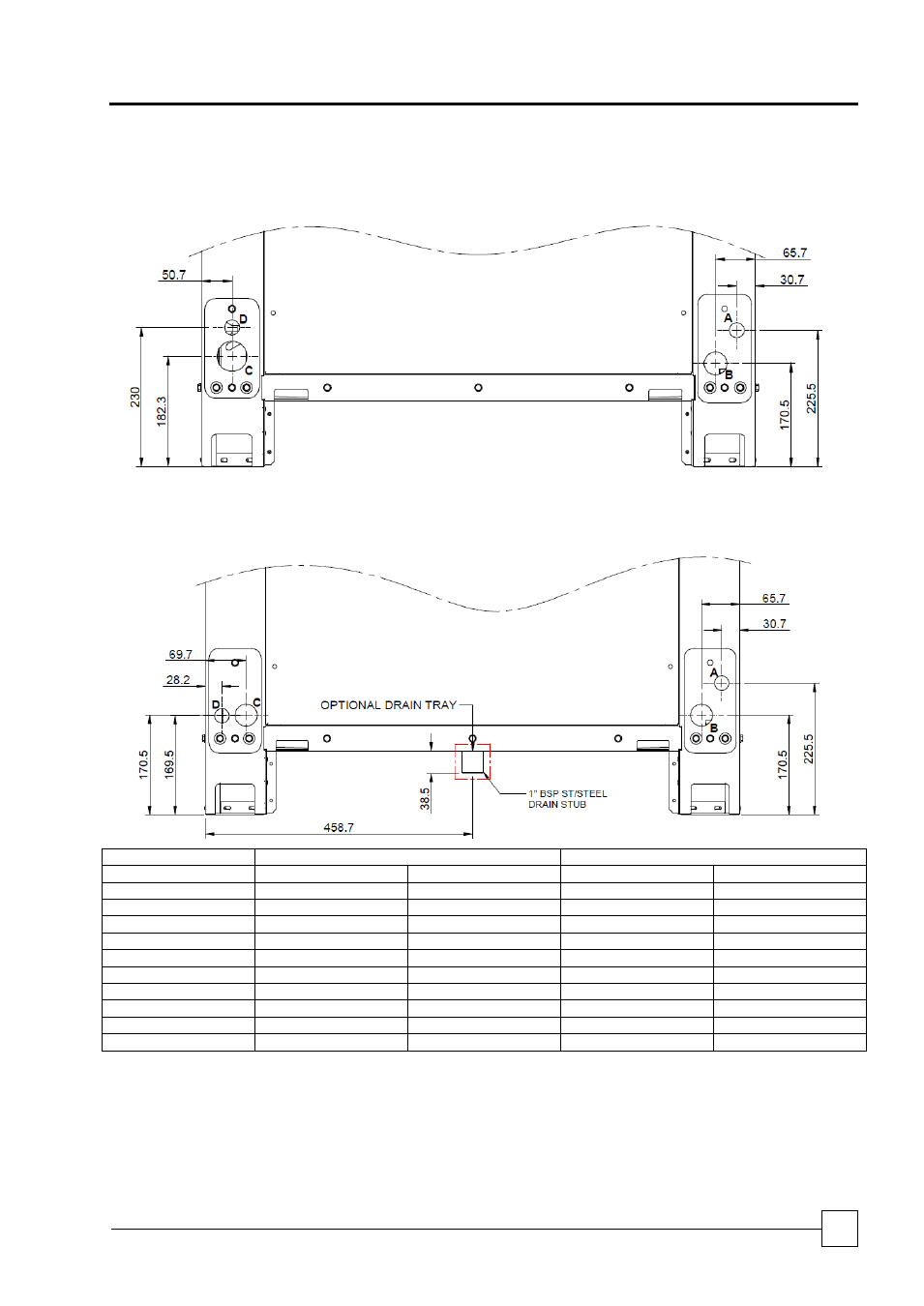

Incoming Services
Cooling only 092
Heat Pump 092
Wiring Access Holes (mm)
Pipe Work Hole Sizes (mm)
Cooling Only
A
B
C
D
CUR092V16
25
38
50
25
CUR092V20
25
38
50
25
CUR092V25
25
38
50
25
CUR092V29
25
38
50
25
Heat Pump
CUR092V16
25
38
38
25
CUR092V20
25
38
38
25
CUR092V25
25
38
38
25
CUR092V29
25
38
38
25
