Martel Electronics OEM1B-LED User Manual

Oem 1b-led, Product description features, Typical applications

background image

PRODUCT DESCRIPTION

FEATURES

• 8
• 200mV d.c. Full Scale Reading
• 50mA (typ) @ +5V d.c. Power Supply

• User Selectable
• DIL Pin Connection
• Size compatible with OEM 1B (LCD module)

mm (0.31") Digit Height

Decimal Points

Auto-zero and Auto-polarity

TYPICAL APPLICATIONS

• High Volume, Low Cost Systems
• Power Supply Monitoring

• Panel-Mount Indication

• Handheld Indication

ORDERING INFORMATION

Stock Number

Standard Meter

OEM1B - LED

SAFETY

To comply with the Low Voltage Directive (LVD 93/68/EEC), input voltages to the module’s pins must not exceed
60Vdc. The user must ensure that the incorporation of the panel meter into the user’s equipment conforms to the
relevant sections of BS EN 61010 (Safety Requirements for Electrical Equipment for Measuring, Control and
Laboratory Use).

ELECTRICAL SPECIFICATIONS

Page 1 of 4

www.lascarelectronics.com

This low cost sub-miniature LED voltmeter module is ideally suited for high volume applications. It features an exceptionally
large display in a miniature package and includes auto-zero and user-selectable decimal points. The use of low current
display technology means this LED product can be considered for battery powered applications. The OEM 1B-LED is
dimensionally compatible with its LCD counterpart, the OEM 1B. Connection to the module is via two rows of pins.

Specification

Min.

Typ.

Max.

Unit

Accuracy (overall error) *

0.05

0.1

% (±1 count)

Linearity

±1

count

Sample rate

2.5

samples/sec

Operating temperature range

0

50

°C

Temperature stability

150

ppm/°C

Warm-up time

10

minutes

Supply voltage

4.75

5

5.25

V d.c.

* To ensure maximum accuracy, re-calibrate periodically.
** Depends on reading and temperature.

Supply current **

50

100

mA

Input leakage current

1

10

pA

OEM 1B-LED

3½ Digit LED Voltmeter Module

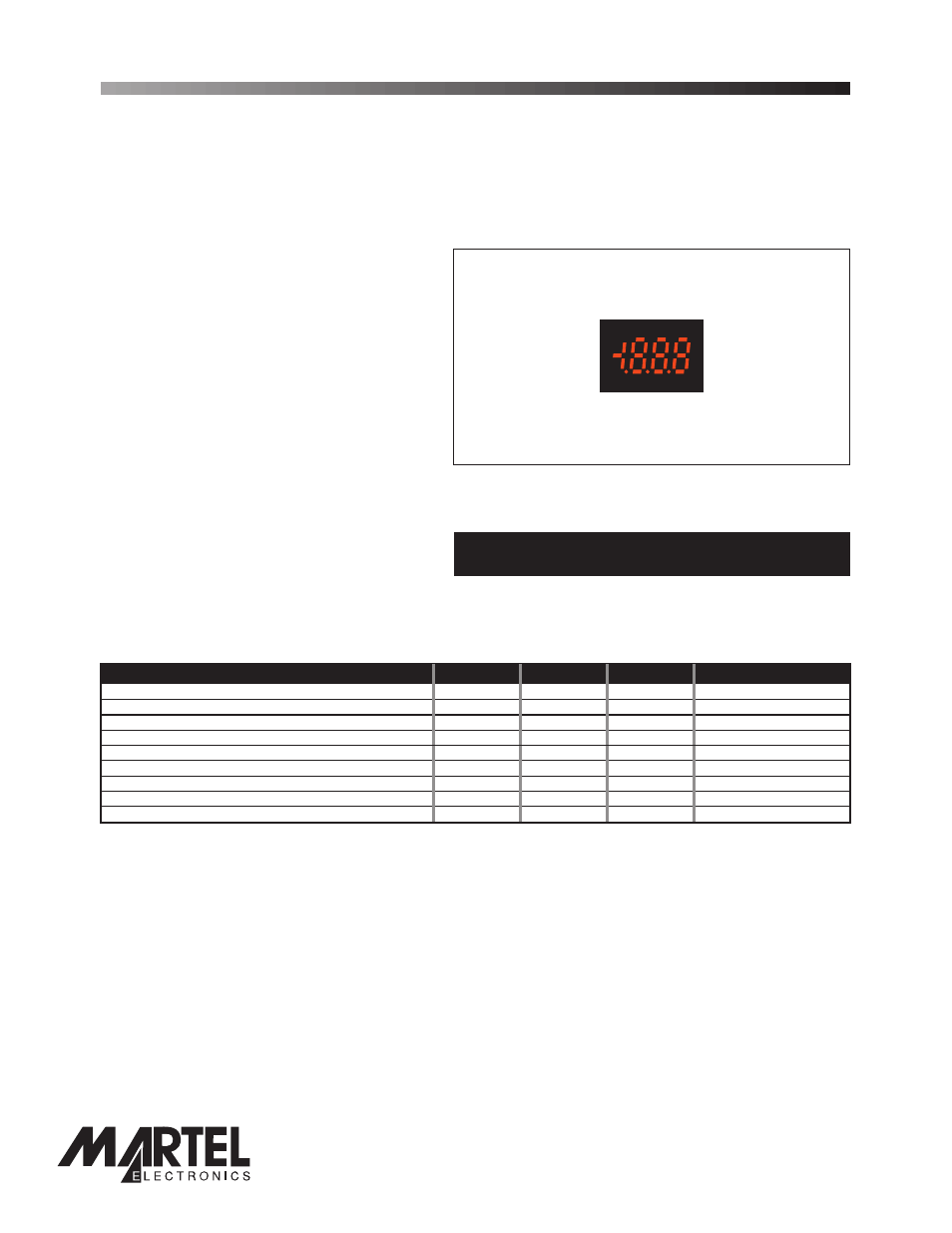

Module shown actual size

LASCAR ELECTRONICS INC.
3750 West 26th Street
Erie
PA 16506
USA
TEL: +1 (814) 835 0621
FAX: +1 (814) 838 8141
E-mail: [email protected]

LASCAR ELECTRONICS LTD.
MODULE HOUSE
WHITEPARISH
WILTSHIRE

SP5 2SJ

UK
TEL: +44 (1794) 884567
FAX: +44 (1794) 884616
E-mail: [email protected]

LASCAR ELECTRONICS (HK) LIMITED
FLAT C, 5/FL., LUCKY FTY. BLDG.
63-65 HUNG TO ROAD
KWUN TONG

KOWLOON

HONG KONG
TEL: +852 2797 3219
FAX: +852 2343 6187
E-mail: [email protected]

Unless otherwise noted, specifications apply at T =25°C, V

=5Vd.c. (f

=40kHz) and are tested with the module configured for floating input

mode.

A

supply

clock
