ASSEMBLY INSTRUCTIONS
Unpacking
1. When unpacking, make sure that the machine is intact and undamaged.
2. Please check that the following items are included with your Air Compressor.
– Oil Bottle – Air Filter – Oil Breather Cap
3. If any parts are missing or broken, please call our customer services at 1-800-232-1195.
4. Your
Air Compressor requires minimum assembly. Remove the parts from the carton.

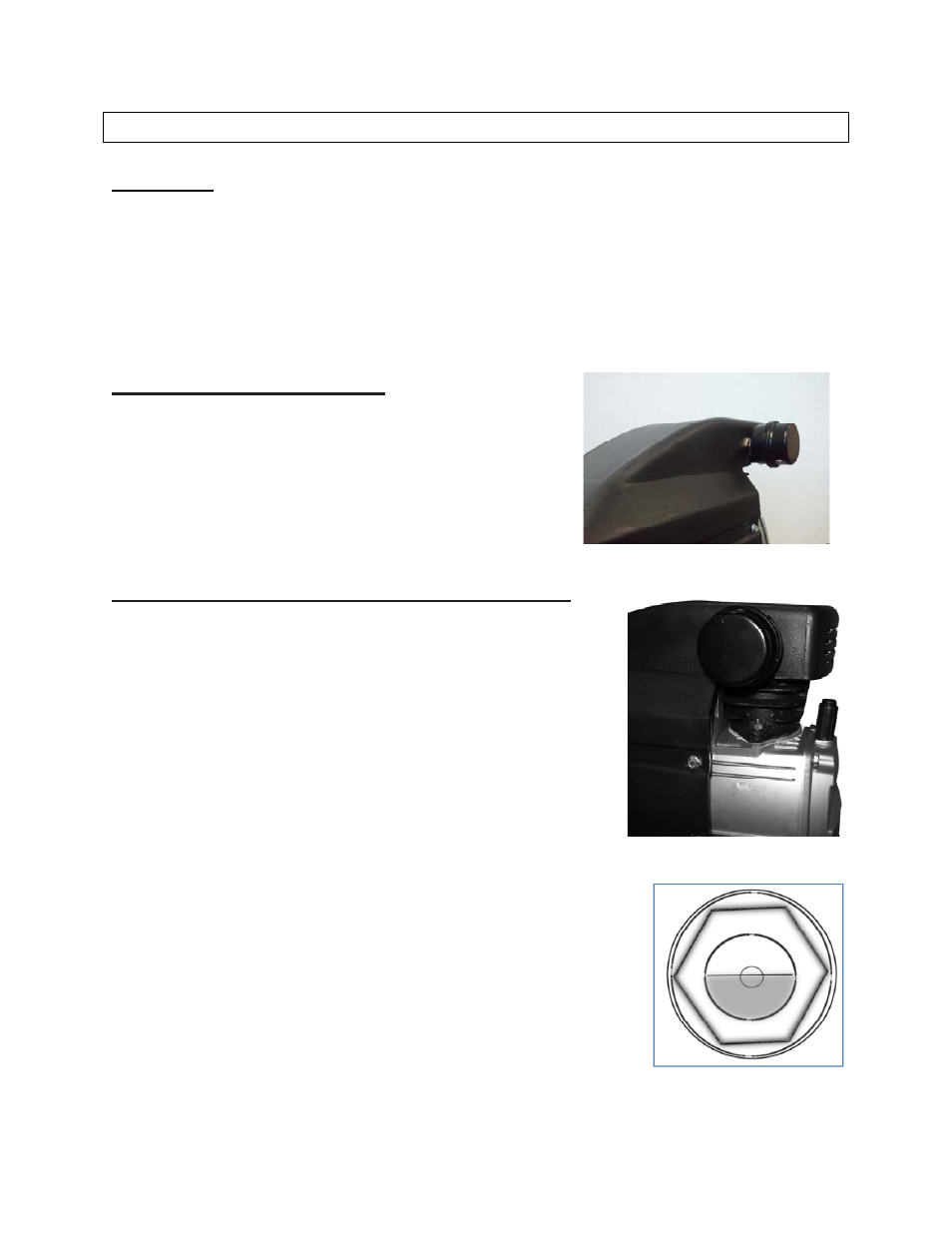

Air Filter Installation (Fig. 3)
This Air Compressor is shipped with a plastic plug in the air
filter hole. Before operating this unit, remove the plug and
connect the air filter (Fig 3).
Fig.3
Add Oil and Install Oil Breather Cap (Fig. 4 & 5)
1. Your Air Compressor ships without oil in the Crankcase.
Note: BEFORE STARTING YOU AIR COMPRESSOR YOU
MUST ADD OIL TO THE CRANKCASE AS DESCRIBED
BELOW.
2. Place your Air Compressor on level ground.
3. Remove the Oil Shipping Plug from the Oil Fill Hole located
on the top of the Crankcase cover at the rear of the Air
Compressor (Fig. 4).
Fig. 4
4. Slowly pour the oil into the Oil Fill Hole until the oil level
rises to the center of the red dot on the Oil Sight Glass (Fig. 5).
5. Install the Oil Breather Cap into the Oil Fill Hole.
Fig. 5
