9.2 DRO
Rotor Matching System
G2X TECHNICAL SUPPLEMENT
*50-1730 GUARD NOT SHOWN
The G2X upgrade package allows for live display of rotor thickness on the DRO screen. The 50-
1200 Lateral cutting head replaces the 50-220 cutting head. This new cutting head allows us to
use a single sensor to measure the distance between the arms, and thus the distance between the
carbide insert tips.

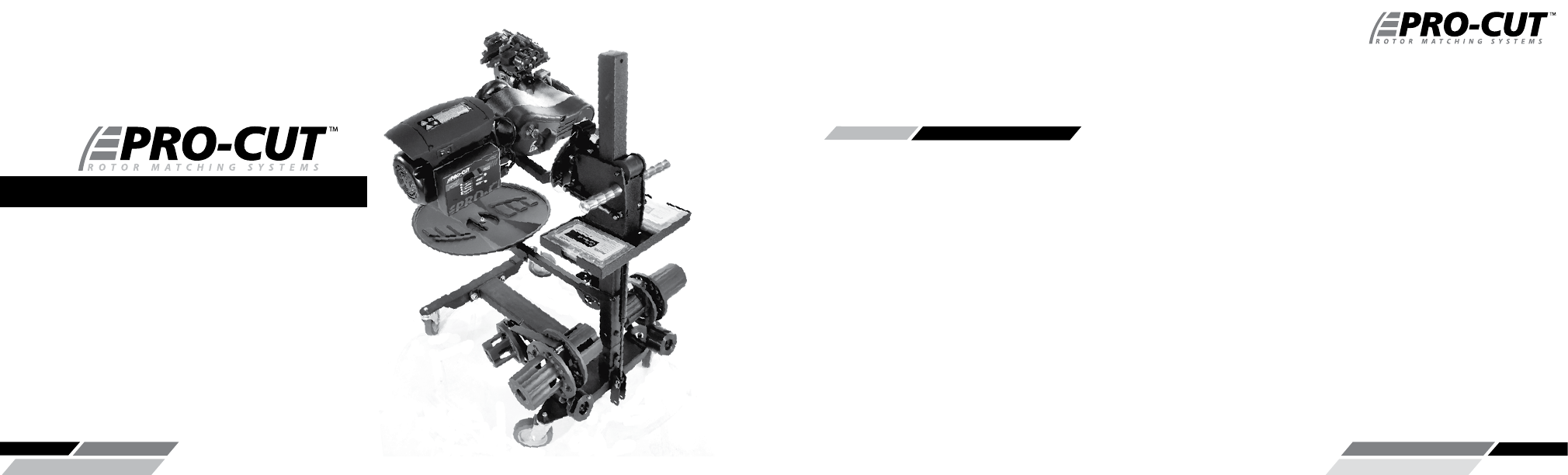

YOUR LATHE PACKAGE
50-1200
50-1206
50-1148
Lateral Cutting Head
Slide Sensor Assembly
Gage Pickup Module
