Dimensions/Assembly
72
DC Industrial Personal Computer 19" - 1 Slot Dimensions

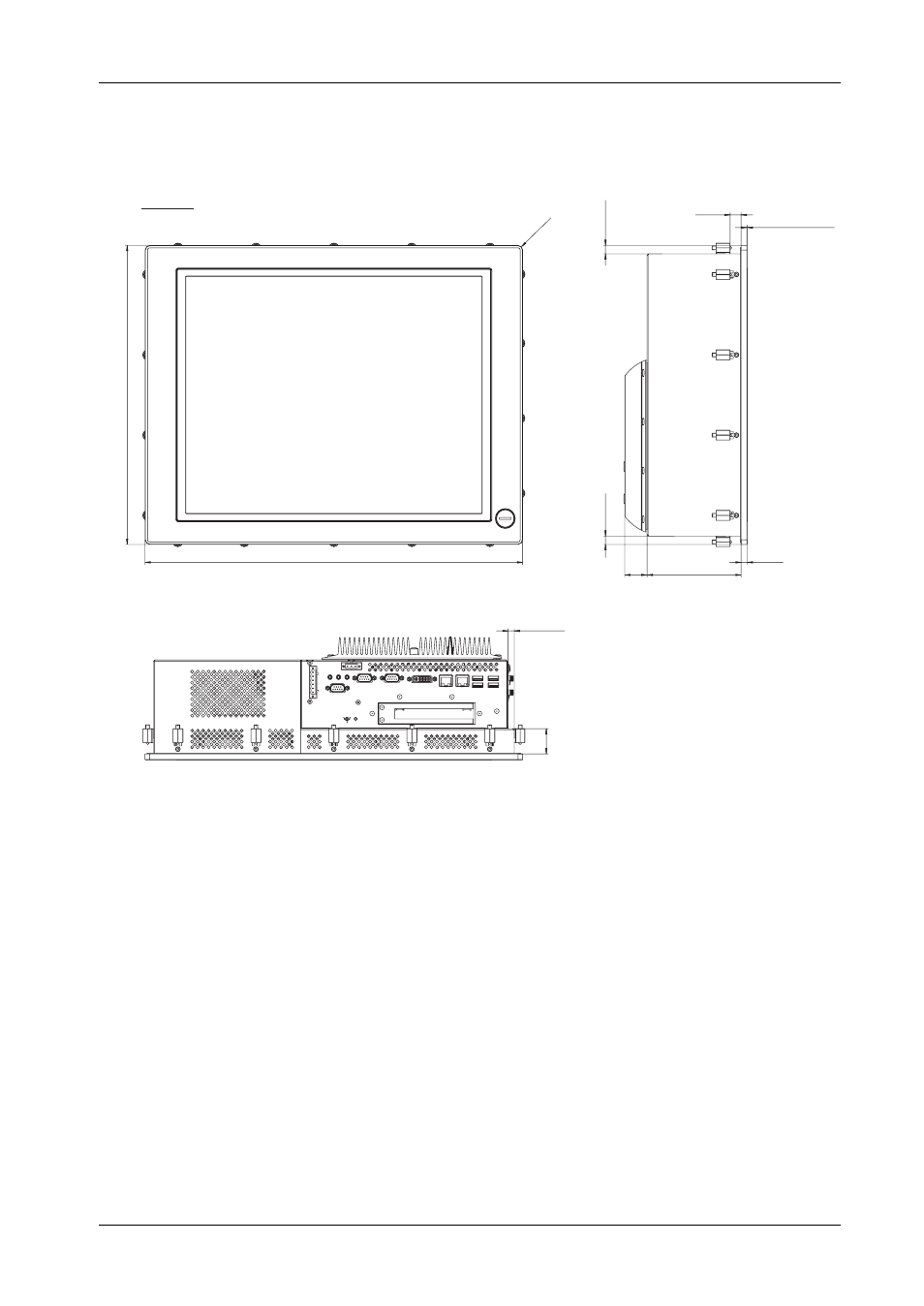

The following figure shows the dimensions of the DC Industrial Personal Computer
19" with 1 slot:
NOTE: Measurement “K” depends on which heat sink is used (see page 76).
mm
in.
380 14.96
480
18.9
10.75 0.42
10.75 0.42
R6
R0.24
119.5
4.70
7.7
0.3
K
32 1.26
14
0.55 0.5 x 45
o
0.02 x 45 o
7.75
0.30
