FC7790
Tri-band CDMA (1x/EVDO Rev.A/SHDR)
Transceiver with S-GPS Receiver
FCI Confidential and Proprietary Information 1 / 19 Last updated at Mar/09/2013
The data can be changed without prior notice.
Future
Communications
Integrated circuit Inc.
D
ESCRIPTION
FC7790 is a tri-band CDMA transceiver with
receiver diversity capable of SHDR. FC7790 is a
product of FCI’s zipRF™ family. The FC7790
covers band class such as BC0, BC1, BC3, BC4,
BC6, BC10, BC14, and BC15. It is a highly
integrated chip working with a dual power supply
such as 3.0V and 2.5V. Because zero-IF
architecture is used for FC7790, additional
components such as bulky IF SAW filters and other
IF matching components are no longer required.
FC7790 is featured to operate in the high data rate
EVDO. Three-wired serial-to-parallel interface (SPI)
protocol enables FC7790 to operate in the various
modes. FC7790 contains complete tri-band
receiver’s main and diversity path such as LNA,
down-conversion mixer, channel selection filter
(CSF), Rx VCO, Rx PLL, and LO distribution block.
FC7790 also contains complete tri-band transmitter
path such as baseband amplifier, up-converter, RF
variable-gain block, drive amplifier, Tx VCO, Tx
PLL, and LO distribution block. FC7790 is optimized
to have high SNR in 1x and EVDO Rev. A receive
and transmit mode. In addition, FC7790 fully
support simultaneous GPS reception with LNA,
down-mixer, channel selection filter, GPS VCO/PLL,
and GPS ADC. FC7790 is available in 4.95 x 4.95 x
0.6 mm WLCSP package.
A
PPLICATIONS
- Tri-band CDMA 1x/EVDO Rev.A diversity
(SHDR) mobile phone or data card.
R
EVISION
H
ISTORY
- Preliminary version release: Apr, 20, 2012
- Preliminary version release: Aug, 14, 2012
- Preliminary version release: Mar, 09, 2013
F
EATURES
 Single-chip tri-band transceiver with receiver diversity and
SHDR without need of external LNA supporting
simultaneous GPS reception
 FC7790 covers band class of BC0, BC1, BC3, BC4, BC6,
BC10, BC14, and BC15.
 Low noise and highly linear LNA, mixer, and CSF for tri-
band CDMA receiver
 Low noise, highly linear, wide dynamic range transmitter
with baseband amplifier, up-converter, drive amplifier
 Low noise and highly linear GPS receiver with 2bits or
3bits selectable GPS ADC
 Automatic DC-offset calibration, filter calibration, VCO
calibration
 Fully integrated low phase noise Rx, Tx, GPS
Fractional-N PLL with fine frequency resolution
 Secondary Rx VCO and PLL for SHDR
 Greater than 85-dB transmit power control
 Support 3-wired SPI protocol
 4.95 x 4.95 x 0.6 mm WLCSP package

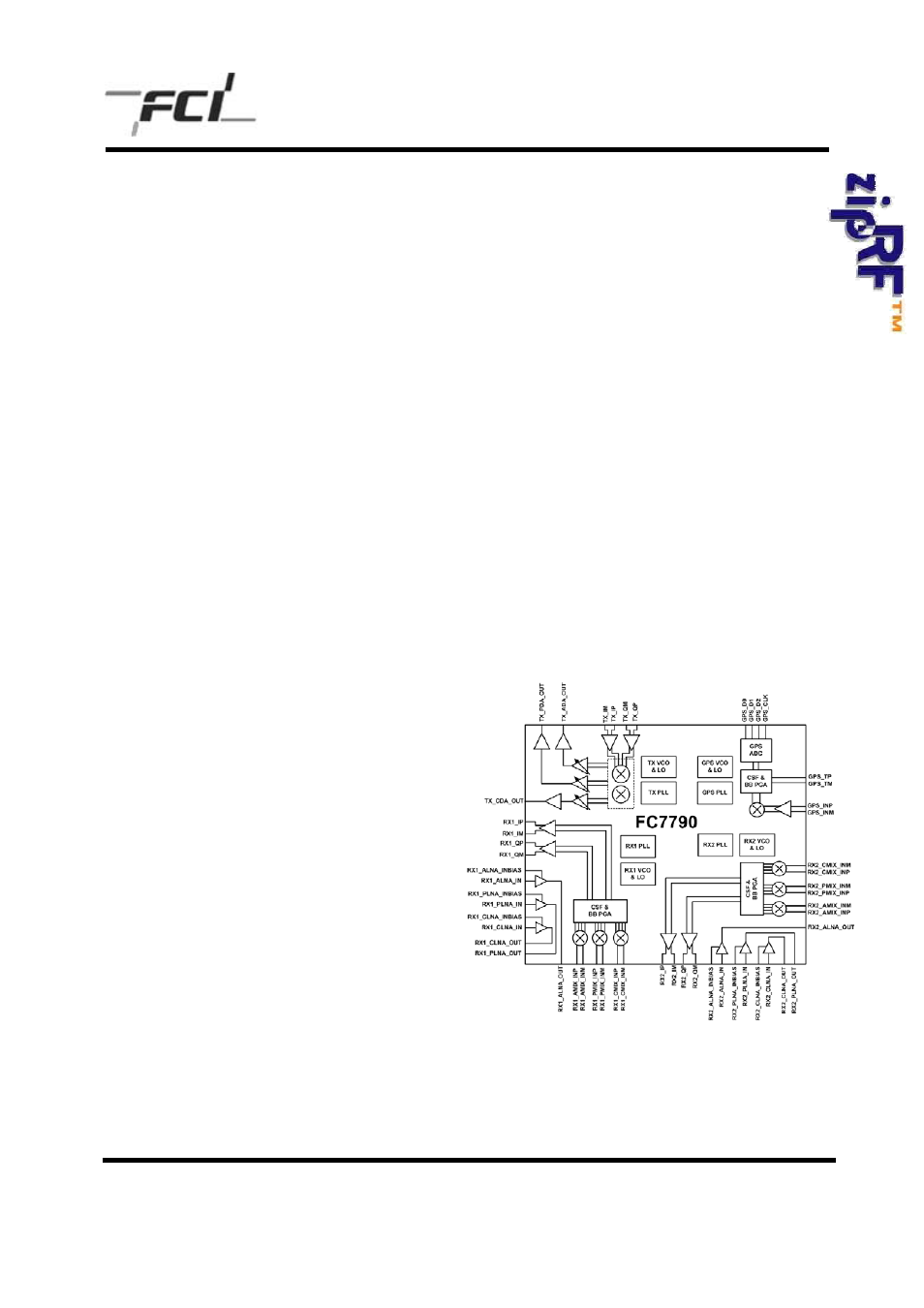

B
LOCK
D
IAGRAM
