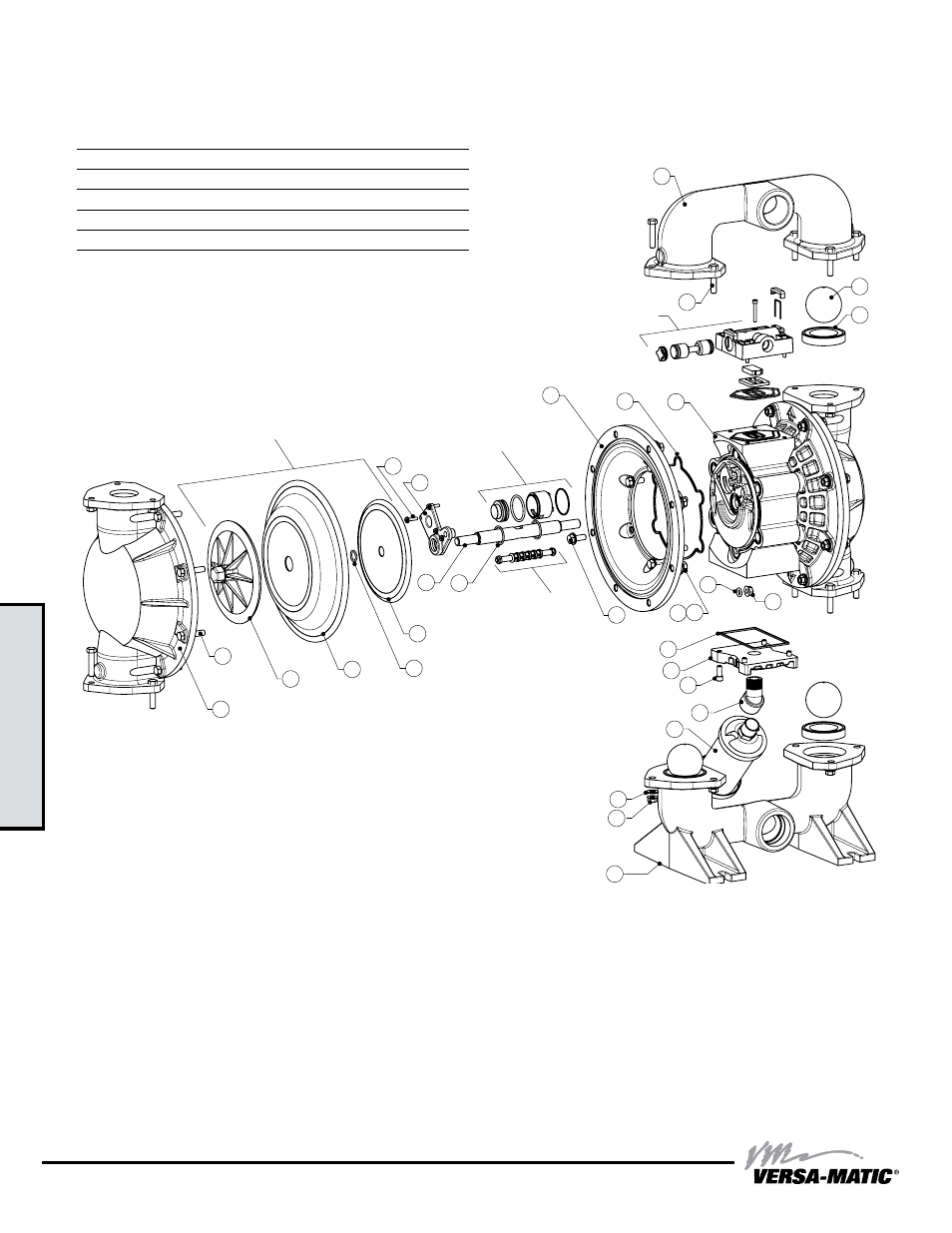

• Model U2 Aluminum Bolted
Composite repair Parts drawing
See Detail C:
Exhaust Valves
See Detail B:
Pilot Shaft
Shown with Versa-Rugged Diaphragms
See Detail D for Versa-Dome Diaphragms
See Detail E for PTFE Bonded Diaphragms
See Detail F for PTFE 2-Piece Diaphragms
See Detail A:
Air Valve
57
42
44
18
45
51
43
50
40 32
53
29
26
17
52
16 15
34
33
35
60
61
59
36
37
58
55
54
38
19
Manifold Bolts 35 ft-lbs (47 N-m)
Water Chamber Bolts 35 ft-lbs (47 N-m)
Diaphragm Plates — Rubber 65 ft-lbs (88 N-m)
Diaphragm Plates — PTFE 65 ft-lbs (88 N-m)
Air Valve Cap Screws 25 in-lbs (2.8 N-m)
Muffler Plate Cap Screws 30 in-lbs (3.4 N-m)
Air Chamber Bolts 20 ft-lbs (27 N-m)
General Model Specific
3: EXP
VIEW
