Pumptec Operating Instructions and Parts Manual PUMP SERIES 113C
8. lightly grease the plunger with the clear grease provided
in small grey tube. Slide plunger into one head assembly and
then slide the other head onto plunger. Place head and plunger

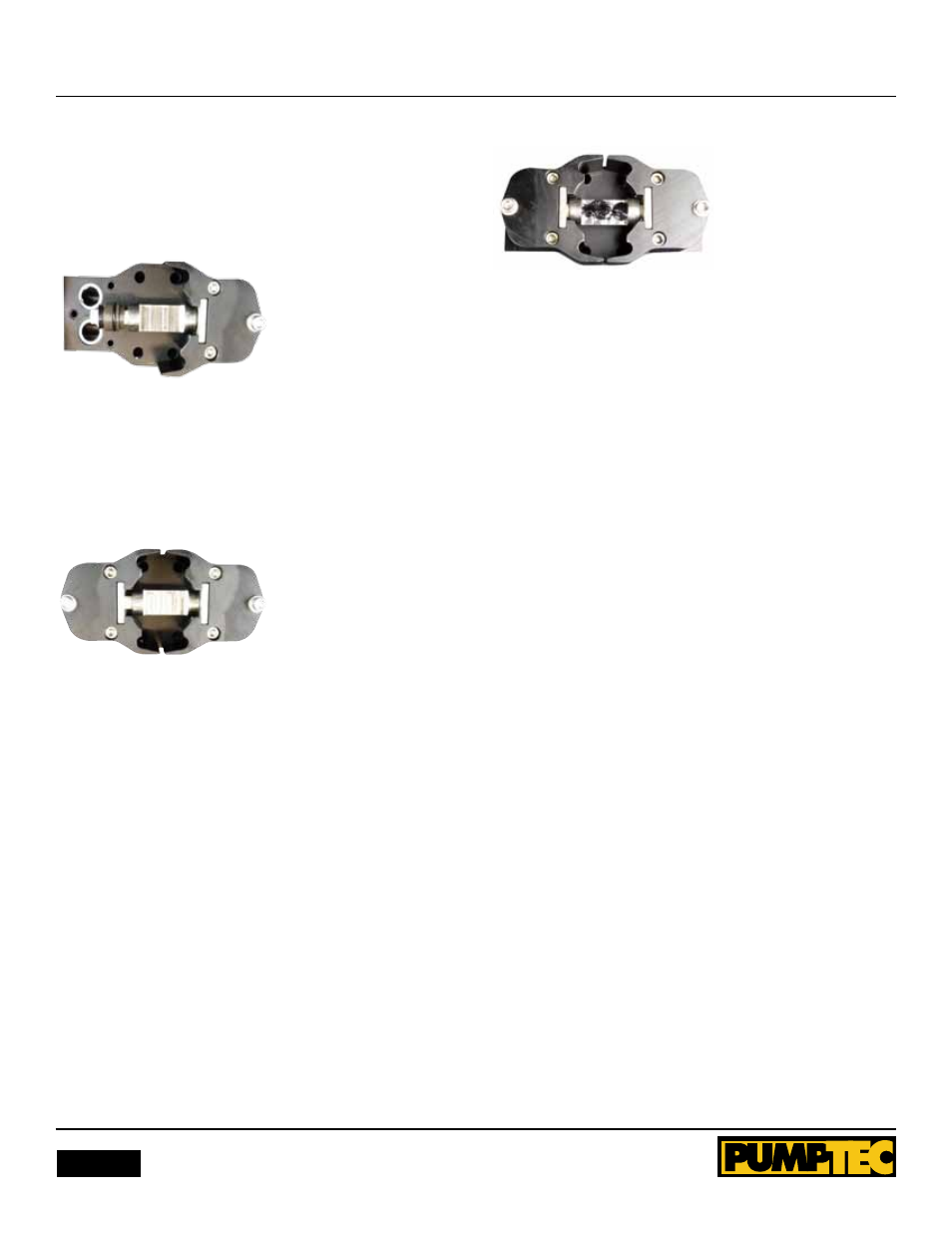

assembly on work surface with valves facing upward. Figure 8
shows plunger in one head assembly with other head in posi-
tion above plunger.
Figure 8
8. Adjust plunger slot position towards center and have slot
facing work surface. Replace all valves, O-rings, and ½” ID white
washers. Refer to image and manifold label to understand
proper orientation. Figure 9 shows proper orientation with
valves, O-rings and ½” ID white washers in place.
Figure 9
9. Place manifold on top of plunger and head assembly. It may
be necessary to move heads on plunger to have valves align
with valve pockets on manifold. be careful not to lose the
O-rings and valves or the white gaskets in the manifold during
reassembly. Figure 10 shows moving heads on plunger to align
with valve pockets. You may hear a click when everything is
aligned.
10. Turn assembly over and place shorter bolts and washer
assembly into heads and tighten finger tight. DO nOT tighten
completely at this time.
Figure 10
11. Apply black grease from supplied packet into corners and
center of plunger slot.
12. Mount pump back onto motor and tighten mounting bolts
to 14 in/lbs. of torque. Tighten head bolts to 14 in/lbs. of
torque.
LUBriCAtiON
Apply 1.5 oz of suppliers black grease to the corners and center
of plunger slot at the time of service.
StorINg
For extended storing, or between use in cold climates, drain all
pumped liquids from pump and flush with antifreeze solution
to prevent freezing and damage to the pump. DO nOT RUn
PUMP WITH FROZEn lIQUID.
Note:
Each system’s maintenance cycle will be unique. If
system performance decreases, check immediately. If no wear
at 500 hours, check again at 1000 hours and each 500 hours
until wear is observed. Valves typically require changing every
seal change. Duty cycle, temperature, quality of pumped liquid
and inlet feed conditions all effect the life of a pump’s wear
parts and service cycle.
Note: Remember to service the regulator/uploader at each
seal servicing and check all system accessories and connections
before resuming operation.
