Poly-Tex SUNSTOPPER shade structure system - Manual (Page 4)

SH6000
2 1/2" x 120" W/SWAGE (SS)
SH6001
2 1/2" x 120" PLAIN (SS)
FT4003
3-WAY FITTING (SS)
FT4004
4-WAY FITTING (SS)
NB1929
EXPANSION ANCHOR 3/8 x 3 3/4"
NB1887
BOLT HEX 5/16" x 3-1/2" ZP
NB1886
5/16" FLAT WASHER
NB1872
HEX NUT 5/16" ZP
SU5064
1.315 x 46 1/2 DIAGONAL BRACE
NB1862
LOCK WASHER 5/16" ZP
FT2089
SHORT SPEED HOOK (2 1/2) W/TABS
FT4026
CORNER FITTING (SS)
SH6004
10' VERTICAL W/7" SQ BASE
FT2085
3-WAY LONG SPEED
HOOK (2-1/2")
FT2083
2-WAY INLINE
SPEED HOOK
FT2082
2-WAY
SPEED HOOK
PT2521
BUNGEE BALL
FT2081
LONG SPEED
HOOK (2-1/2")
GS2404
GROUND STAKE (IF REQUIRED)
FT2015
"G" FITTING
ST2059
9'-8 1/2" VERTICAL POST (FOR GROUND STAKES)
9'-8 1/2" HORIZONTAL TUBE (IF REQUIRED BY STRUCTURE SIZE)
NB1832
Ø5/16" x 1-1/4"
CARRIAGE BOLT
NB1806
SELF-DRILL SCREW 1/4-14x3/4"
NB1842
Ø5/16" x 3/4" HEX BOLT
SH2006
CABLE ASSEMBLY

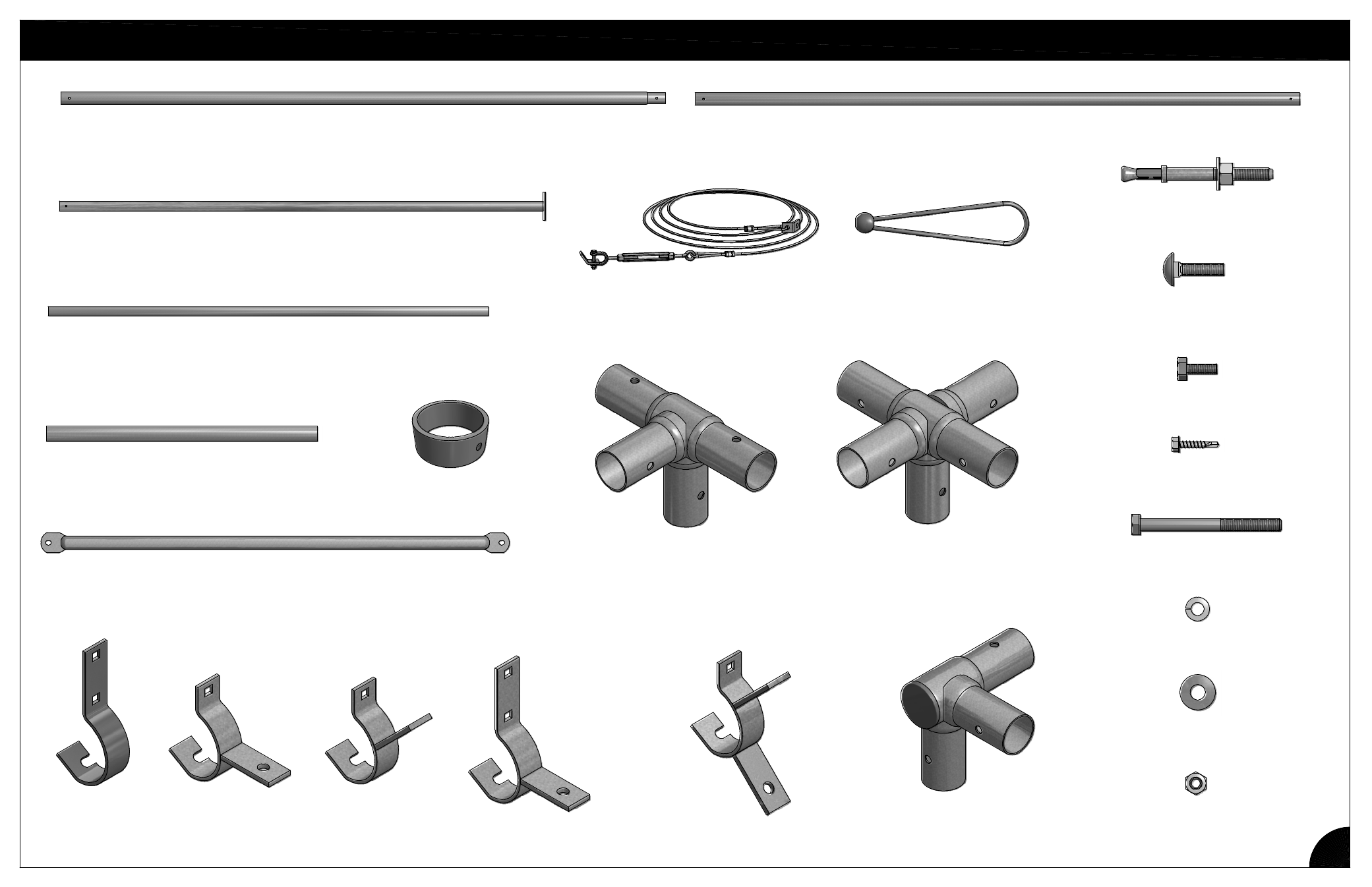

PARTS IDENTIFICATION
1
REV: AE-131121
