Master Manufacturing SPOT SPRAYER User Manual
Page 3
Master Manufacturing

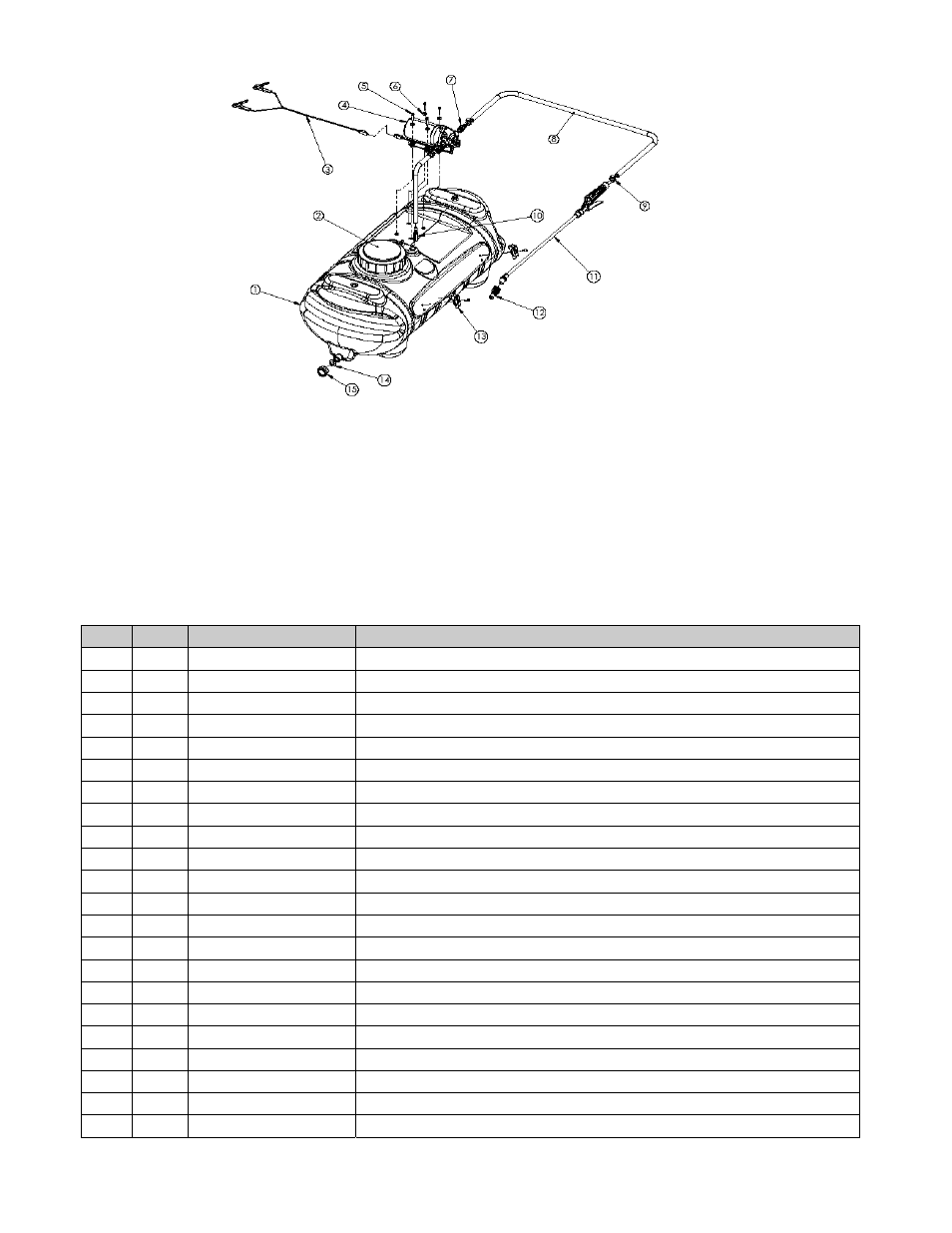

15/25 Gallon Spot Sprayer
Parts List
Ref
Qty
Part No.
Description
1
1
33-103231
Tank, 15 gallon
1
33-103230
Tank, 25 gallon
2 1
TL-6B
Lid,
Tank
3
1
33-103234
Harness, Wire, SS,
4
1
33-103229
Pump, Shurflo, 1GPM, 15 gallon
1
33-103232
Pump, Shurflo, 1.8gpm, 25 gallon
1
33-103208
Pump, Delavan, 1 GPM, 15 gallon
1
33-103209
Pump, Delavan, 2 GPM, 25 gallon
5
4
33-103126
Screw, Machine, 10-24 x 5/8, 15 gall
4
33-103127
Screw, Machine, 10-24 x 1”, 1.8 & 2.0 GPM pumps
6
4
33-103131
Washer #10, 1.8 & 2.0 GPM pumps only
7
2
A38
Fitting, 3/8”MNPT x 3/8”HB. 1.8 & 2.0 GPM pumps
8
15 ft
3204-1407
Hose, rubber, 3/8”
9 3
SHC-F
Clamp,
hose
10 1
33-103121 Strainer,
Inlet
11
1
SG-4507F
Wand, with filter
12 1 SG-45ASSY-18 Nozzle,
Assembly
13
1
GC-100-KIT
Clip, Gun (Pair)
14
1
W406-V
Washer, Garden Hose
15
1
3N34
Cap, Garden Hose
18”
3204-1407
Hose, rubber, 3/8” X 18” Inlet to pump
1
SS-MANUAL-MM Manual, (not shown)
