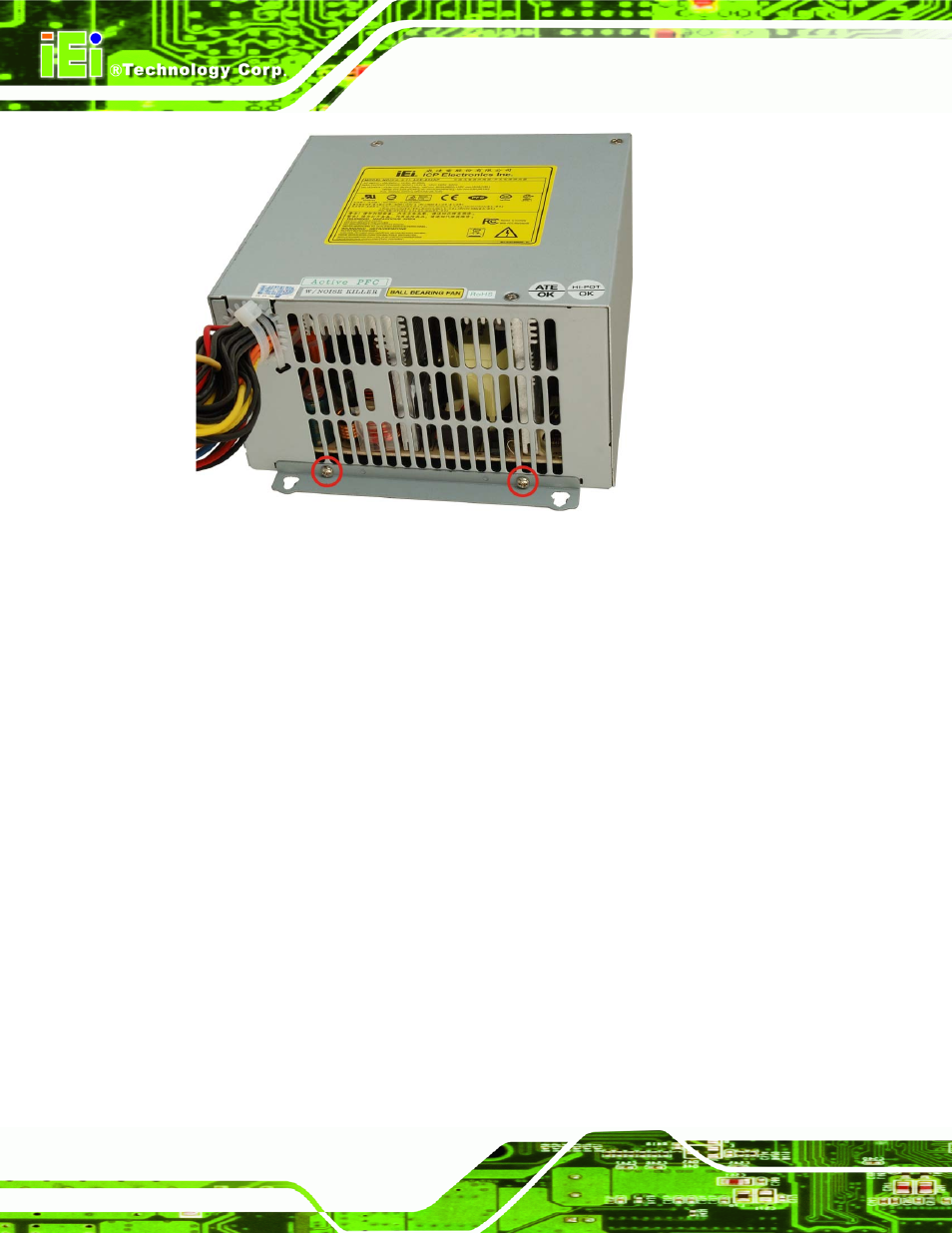

Figure 5-3: PSU Mounting Bracket Retention Screws

Step 8:

Reattach the PSU mounting bracket to the new PSU with the two previously

removed retention screws.

Step 9:

Install the new PSU into the workstation making sure the PSU power connector

and PSU cooling fan are facing out of the workstation.

Step 10:

Reinsert the two previously removed internal retention screws that secure the

PSU assembly to the right side panel of the workstation.

Step 11:

Reinsert the three previously removed external retention screws that secure the

PSU assembly to the rear panel of the workstation.

Step 12:

Close the back cover of the workstation and reinstall the workstation into the

cabinet or rack in which it was previously installed. Refer to Section 4.6 for

complete mounting instructions.
