Page 104

AFL2-W15B-H61

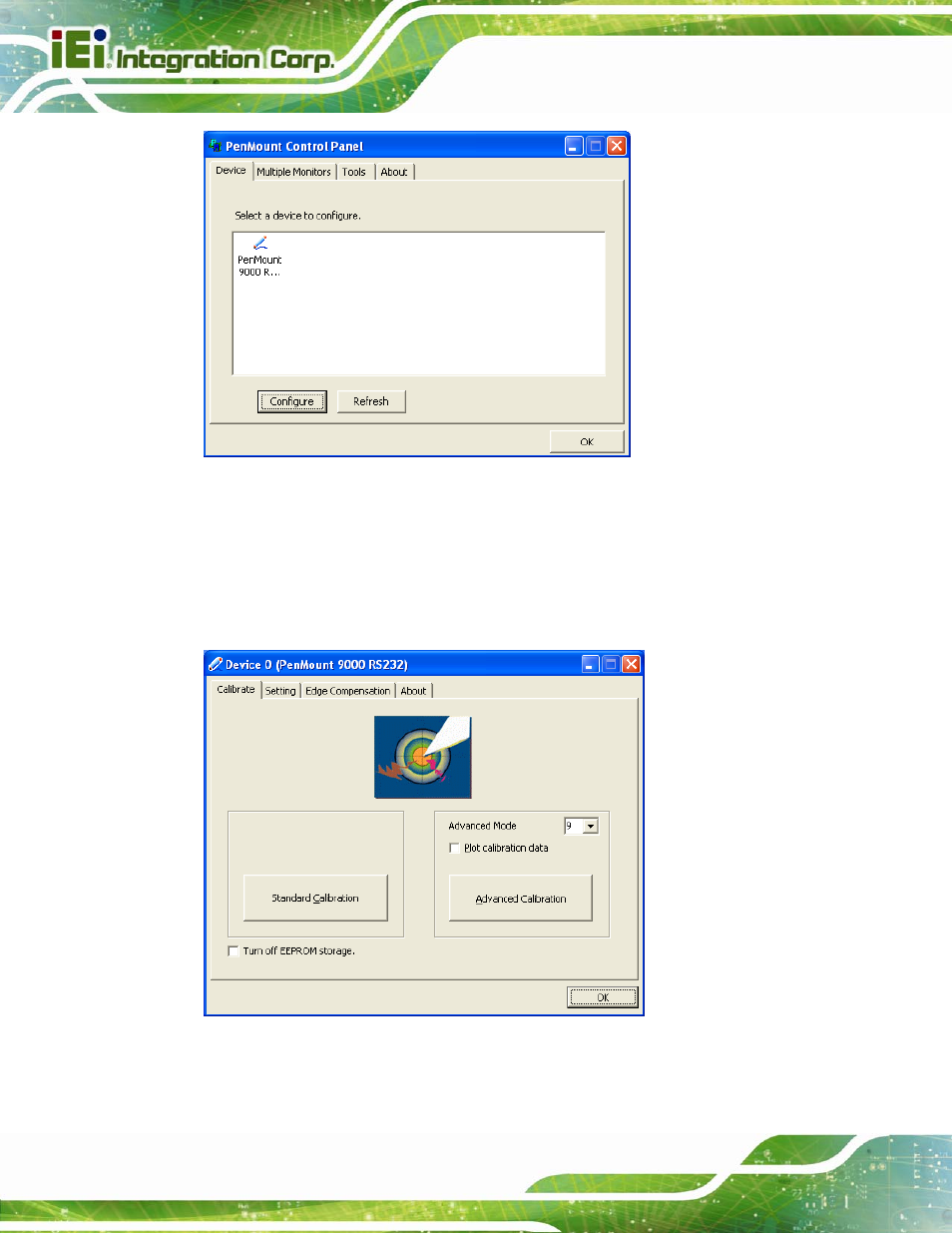

Figure 5-29: Configuration Screen

Step 6:

Double click the PenMount 9000 icon as shown in Figure 5-29.

Step 7:

The calibration initiation screen in Figure 5-30 appears.

Step 8:

Select the Standard Calibration button as shown in Figure 5-30.

Figure 5-30: Calibration Initiation Screen

Step 9:

The calibration screen in is shown. See Figure 5-31.
