2.7.2 Serial Device Connection
The serial device connectors are for connecting serial devices to the
AFL-W15A/17D-GM45. Follow the steps below to connect a serial device to the
AFL-W15A/17D-GM45 panel PC.
Step 1: Locate the DB-9 connector . The location of the DB-9 connector is shown in
5
Figure 2-7 .
Step 2: Insert the serial connector . Insert the DB-9 connector of a serial device into
the DB-9 connector on the bottom panel. See
5
Figure 2-9.

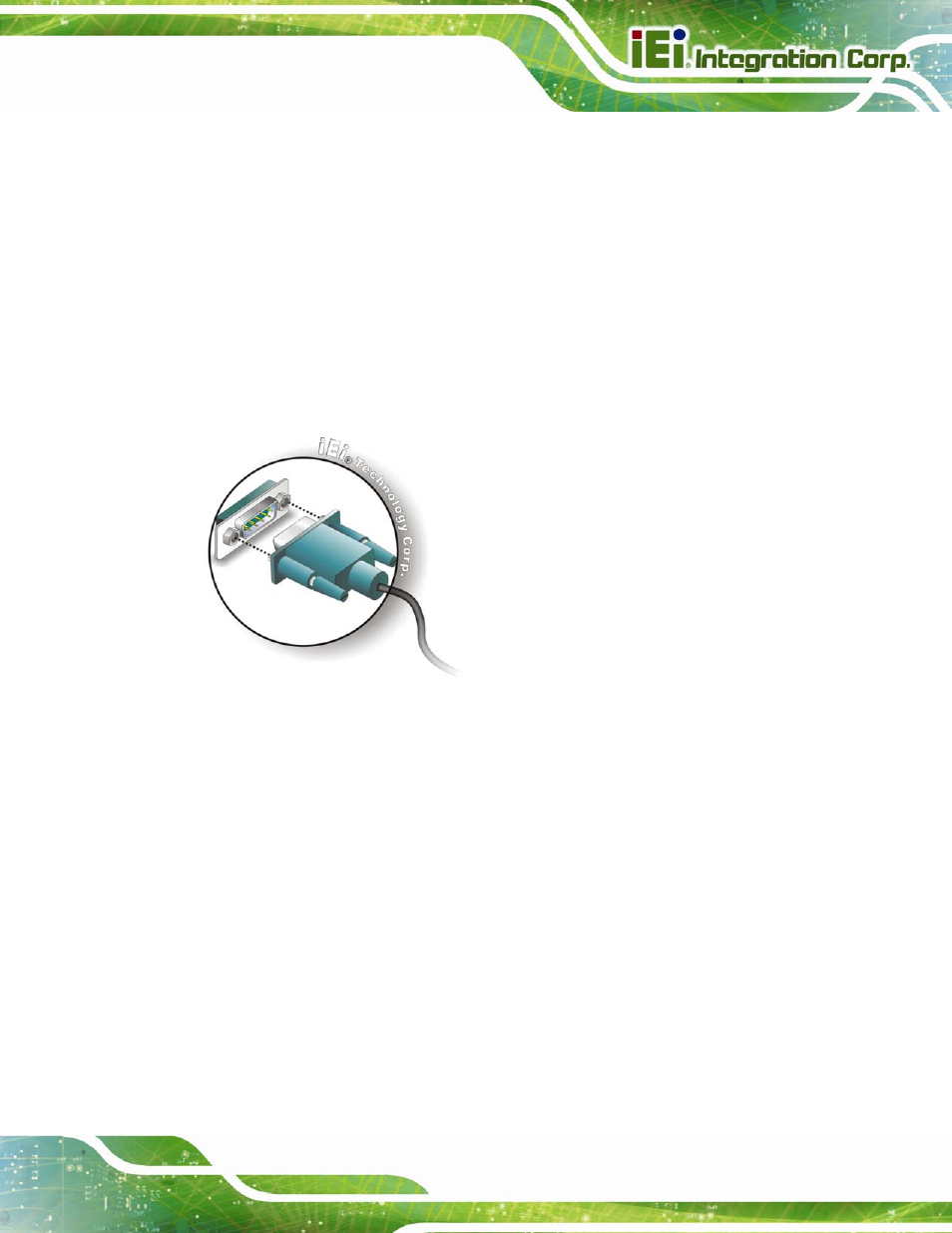

Figure 2-9: Serial Device Connector
Step 3: Secure the connector . Secure the serial device connector to the external
interface by tightening the two retention screws on either side of the connector.
Step 0:
2.7.3 USB Device Connection
To connect USB devices to the AFL-W15A/17D-GM45, please follow the instructions
below.
Step 1: Located the USB connectors . The locations of the USB connectors are shown
in
5
Figure 2-7 .
Step 2: Align the connectors. Align the USB device connector with one of the
connectors on the bottom panel. See
5
Figure 2-10.
