IEI Integration PCIR-K03R-R10 User Manual

Pcir-k03r-r10

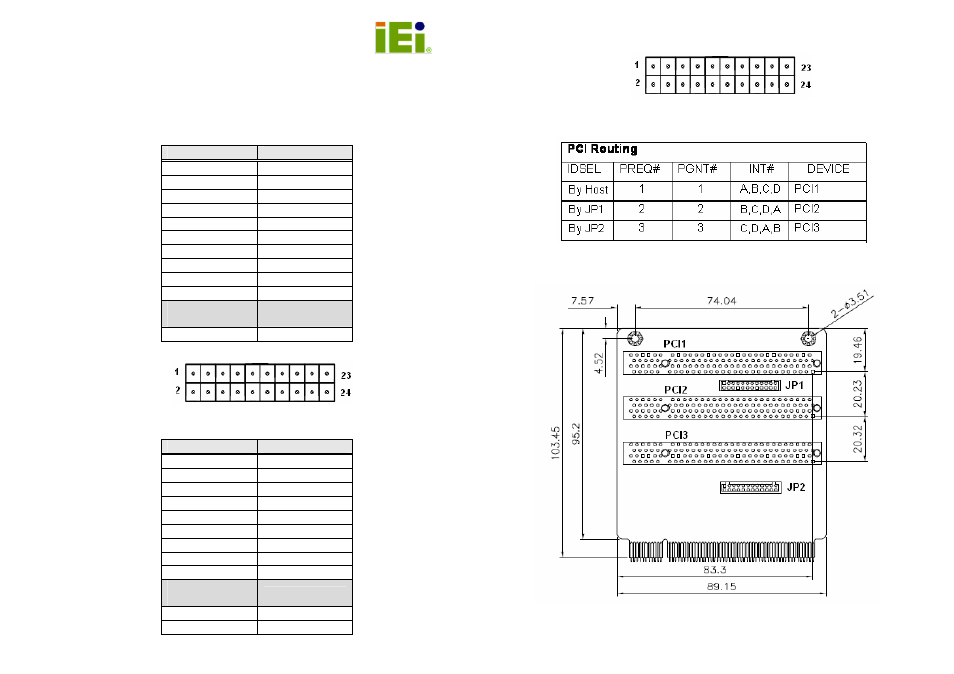

background image

1

PCIR-K03R-R10

1. JP1: PCI2 ID select

2. JP2: PCI3 ID select

Feb. 17, 2009

Pin

Description

Short 1-2

AD20

Short 3-4

AD21

Short 5-6

AD22

Short 7-8

AD23

Short 9-10

AD24

Short 11-12

AD25

Short 13-14

AD26

Short 15-16

AD27

Short 17-18

AD28

Short 19-20

AD29

Short 21-22

(Default)*

AD30

Short 23-24

AD31

Pin

Description

Short 1-2

AD20

Short 3-4

AD21

Short 5-6

AD22

Short 7-8

AD23

Short 9-10

AD24

Short 11-12

AD25

Short 13-14

AD26

Short 15-16

AD27

Short 17-18

AD28

Short 19-20

(Default)*

AD29

Short 21-22

AD30

Short 23-24

AD31

2

3. PCI Routing

4. Dimension:
