NOVA-HM551 5.25" SBC
Page 65

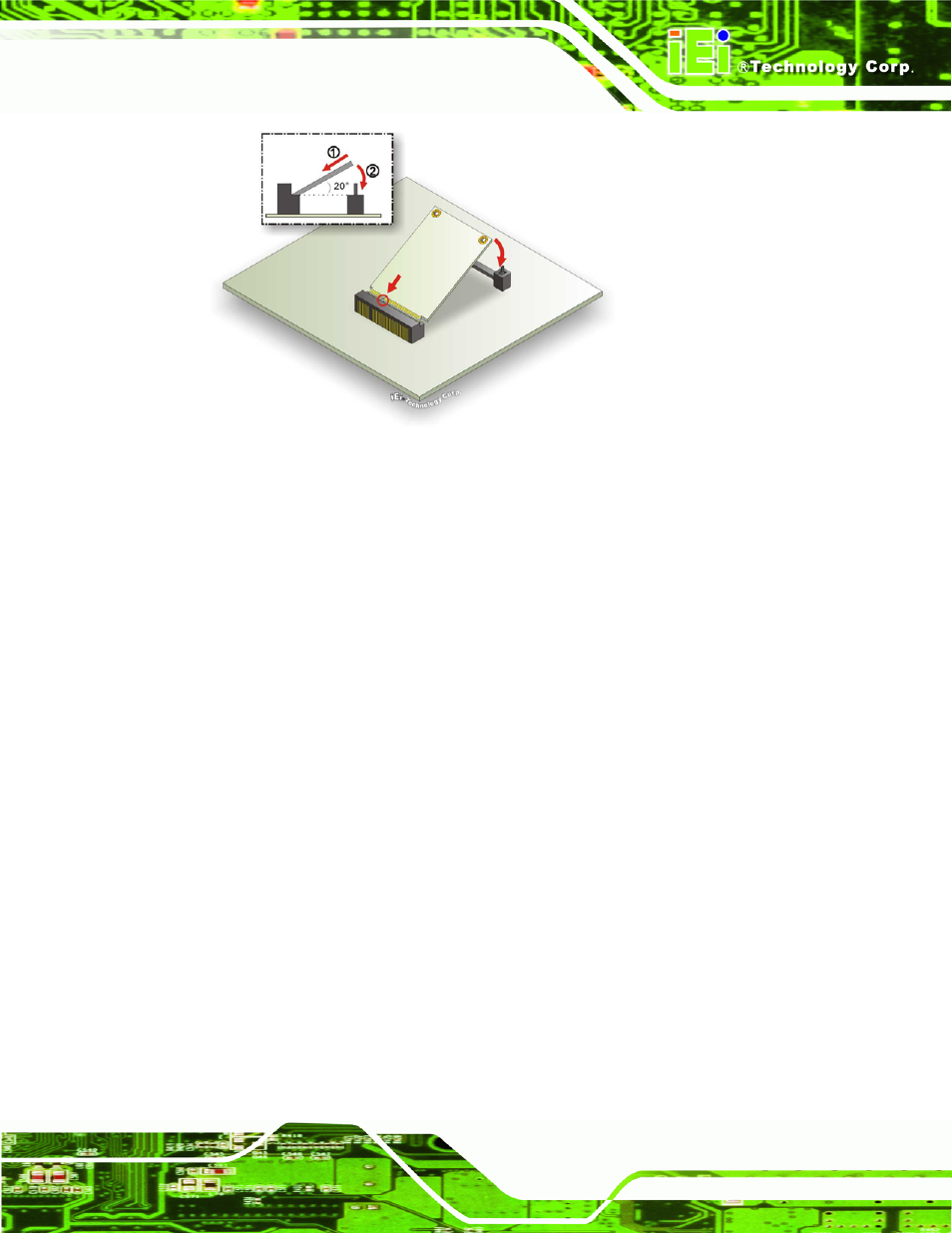

Figure 4-15: PCIe Mini Card Installation
Step 1: Insert into the socket at and angle. Line up the notch on the card with the
notch on the connector. Slide the PCIe Mini card into the socket at an angle of
about 20º.
Step 2: Push down until the card clips into place. Push the other end of the card
down until it clips into place on the plastic connector. Step 0:
4.7.4 SATA Drive Connection
The NOVA-HM551 is shipped with two SATA drive cables. To connect the SATA drives to
the connectors, please follow the steps below.
Step 1: Locate the connectors. The locations of the SATA drive connectors are shown
in Chapter 3.
Step 2: Insert the cable connector. Press the clip on the connector at the end of the
SATA cable and insert the cable connector into the on-board SATA drive
connector. See Figure 4-16.
Step 3: Connect the SATA power cable. Connect the SATA power connector into the
on-board SATA power connector. See Figure 4-16.
