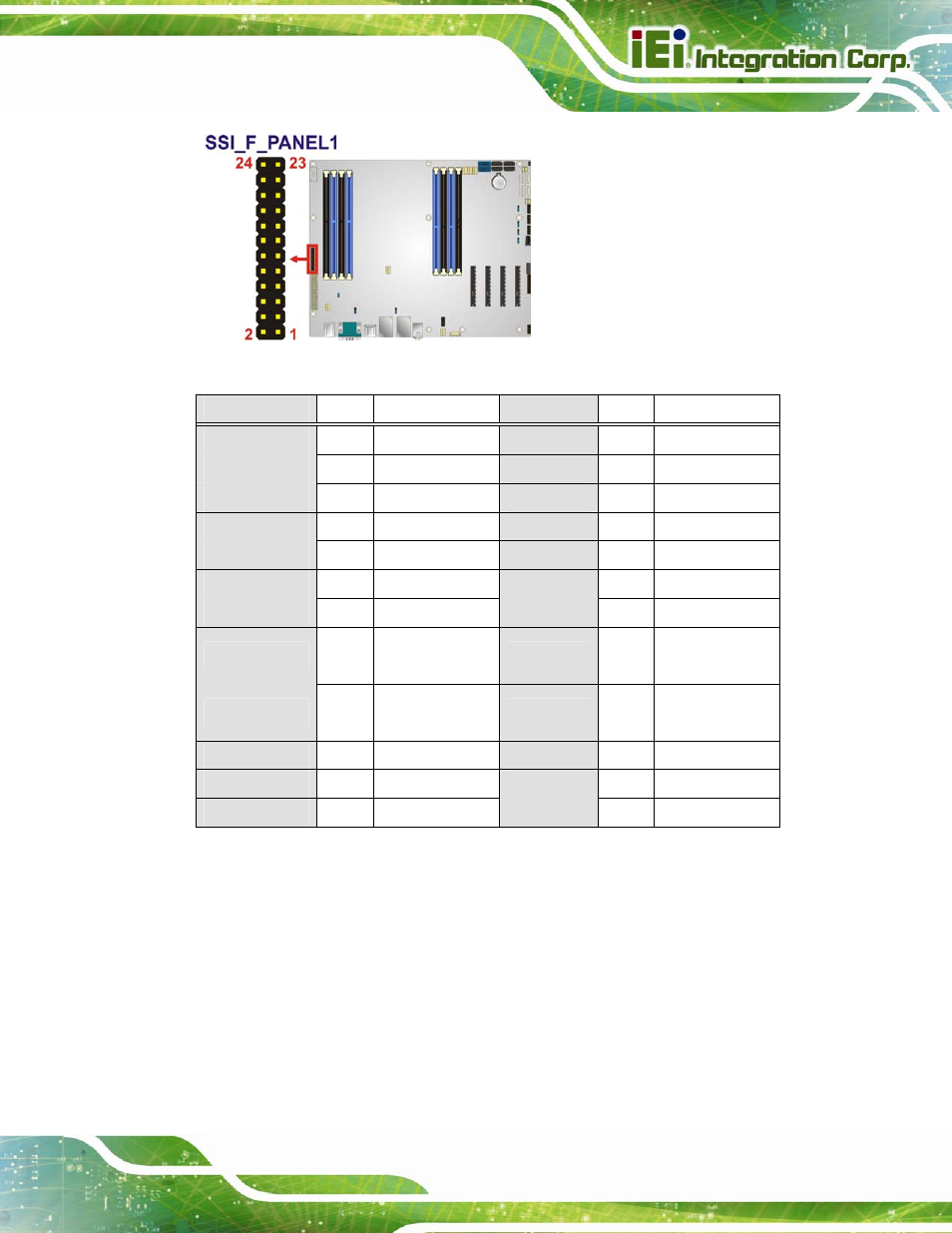

Figure 3-11: Front Panel Connector Location
Function Pin Description Function Pin Description
Power LED 1 +3.3V_DSW 2 +3.3V_DSW
3 NC 4 V_5P0_A
5 PWRLED# 6 ID_LED#_FP
HDD LED 7 +3.3V 8 GR_LED_FP#
9 HDD_LED# 10 AM_LED_FP#
Power Button 11 PWRBTN_SW#_C LAN1 LED 12 +3.3LAN1
13 GND 14 LAN1_LED#
Reset 15 EXTRST- 16
SMB_FRU_T_3
VSB_DATA
17 GND 18
SMB_FRU_T_3
VSB_CLK
19 ID_BT_FP# 20 CHASSIS_OPEN
21 +3.3V_DSW LAN2 LED 22 +3.3LAN2
23 NMI_BT_FP# 24 LAN2_LED#
Table 3-10: Front Panel Connector Pinouts
3.2.11 I2C Connector
CN Label: I2C_1
CN Type: 4-pin wafer
CN Location: See Figure 3-12
CN Pinouts: See Table 3-11
