2.5 GALLON AIR TANK PARTS LIST:
A.
B.
C.
D.
E.
F.
G.
Vibration Isolators (6 pcs)
Brass Inserts (6 pcs)
Mounting Bolts (M11 x 35mm) (4 pcs)
Mounting Bolts (M11 x 45mm) (2 pcs)
Washers (4 pcs)
Locking Washers (4 pcs)
Hex Nuts (4 pcs)
A B C E D F G
2.5 GALLON AIR TANKS
USER MANUAL
Tank loses air pressure 1. Air leaks from fittings 1. Locate leak by applying soap
& water solution. Tighten
fittings as needed
Tank leaks 1. Pinhole from internal rusting
of tank
1. Replace tank immediately
Can’t get air from tank 1. Low tank pressure 1. Tank pressure must exceed tire
pressure. Increase tank
pressure
TROUBLESHOOTING GUIDE:
PROBLEM: POSSIBLE CAUSE(S) CORRECTIVE ACTION
NOTE: We have included 6 pcs. of rubber bushings in your tank mounting
hardware. You have the option of using two layers of rubber bushings on one
of your tank legs to slightly tilt tank toward drain hole to improve drainage
when using a drain cock.

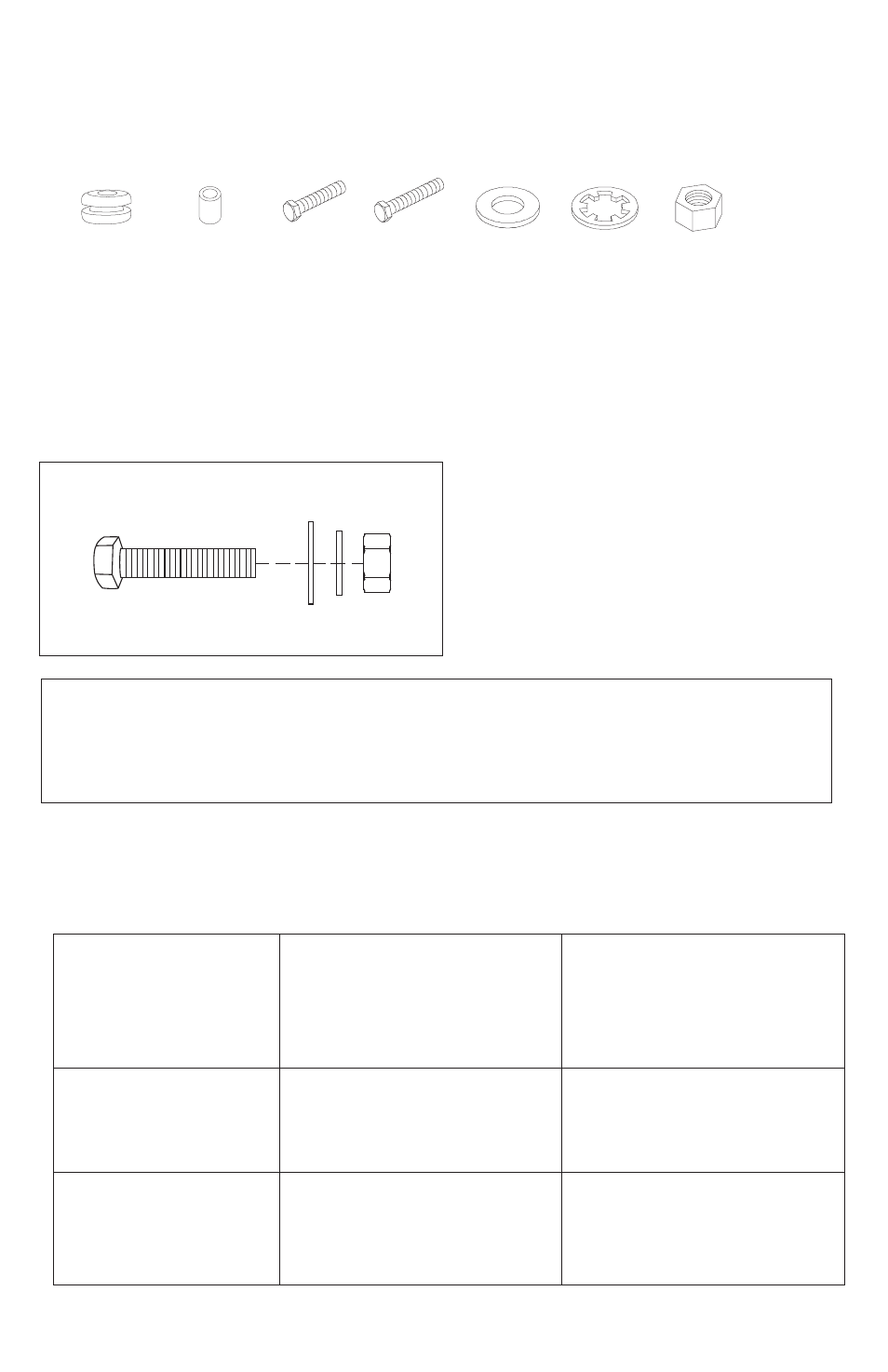

See Fig. 1 below for Mounting Hardware Assembly
Fig. 1
G F E C/D
