14 Alcatel-Lucent 7330 ISAM FTTN
Alcatel-Lucent Fiber-to-the-Node
Answers the Challenge
The Alcatel-Lucent 7330 ISAM
FTTN architecture meets your
challenge by delivering ultra-high
bandwidth connectivity to subscribers
over the existing copper plant.
With the Alcatel-Lucent 7330
ISAM FTTN in your arsenal, you
can halt the competitive siege by
rapidly deploy ing a ubiquitous service
offering to your entire subscriber base.
Very small to large serving areas can
be addressed with the multiple form
factors of a single Alcatel-Lucent
solution.
Each Alcatel-Lucent 7330 ISAM
FTTN supports:
• A non-blocking, Ethernet
architecture with a 24-Gb/s
switching fabric
• Multi-ADSL (ADSL, ADSL2,
ADSL2plus with bonding and
READSL2)
• VDSL and VDSL2 with bonding
• Multicast requirements with
IGMP snooping
• Priority queuing for QoS
• Full element management through
the Alcatel-Lucent 5526 AMS
• POTS services via the POLT
Small Serving Areas Central Office Large and Medium Serving Areas
Small Cabinet
Ethernet Switch
7450 ESS
7750 SR
Up to 8 GigE
Up to 12 GigE
Expansion
Links
n GigE
Up to 4 slots
Up to 192 lines
Up to 192 lines
Up to 192 lines
Up to
48 lines
7330 ISAM FTTN SEM
Sealed Expansion Module
(Pole, Walll, Pedestal)
7330 ISAM FTTN ES
Expansion Shelf
(Modular Growth)
7330 ISAM FTTN
Host Shelf
7330 ISAM FTTN ES
Expansion Shelf
(Modular Growth)

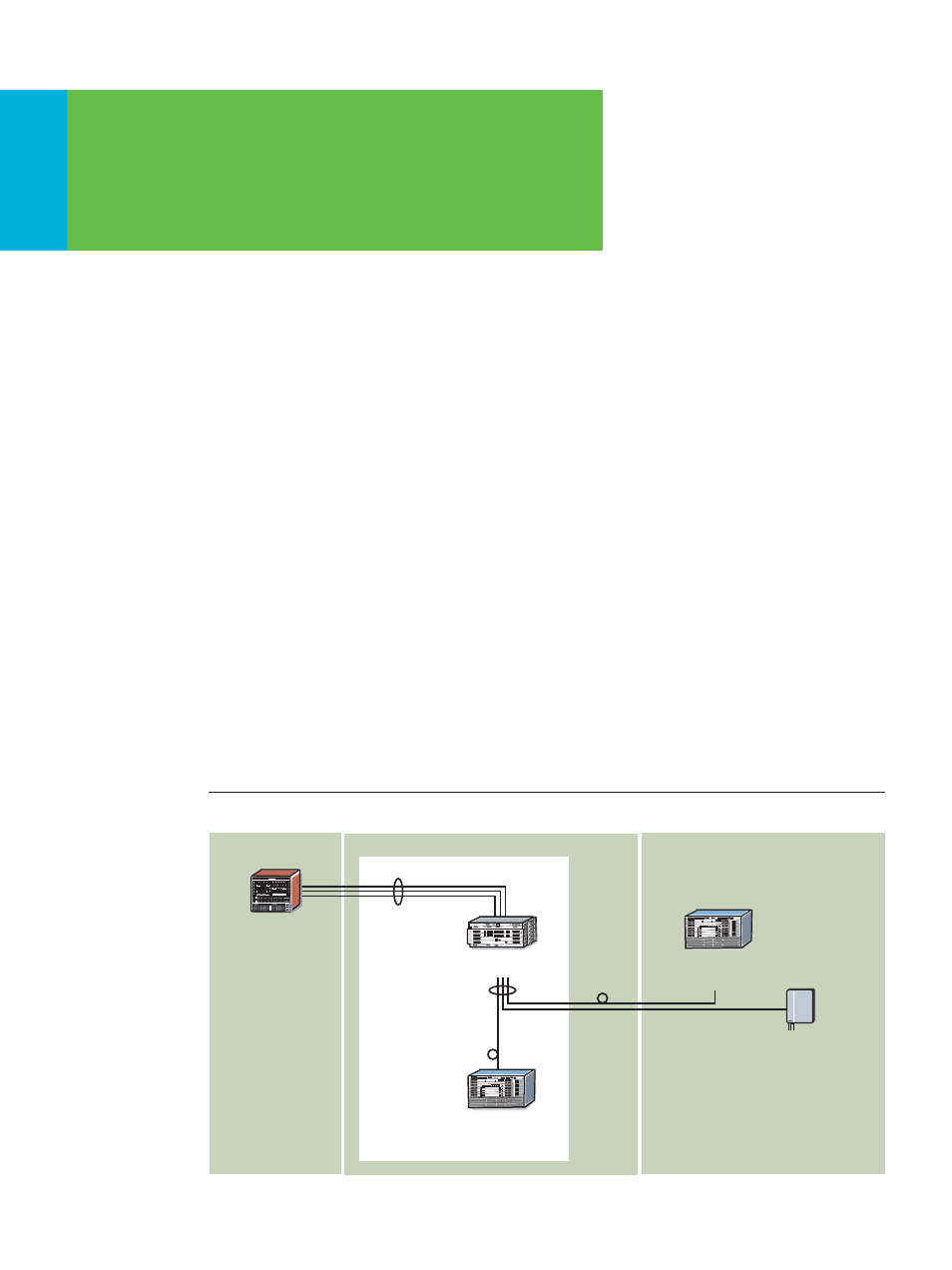

Figure 5. Alcatel-Lucent Fiber to the Node Solution
Alcatel-Lucent’s answer to the FTTN
challenge is the Alcatel-Lucent 7330
ISAM FTTN.
