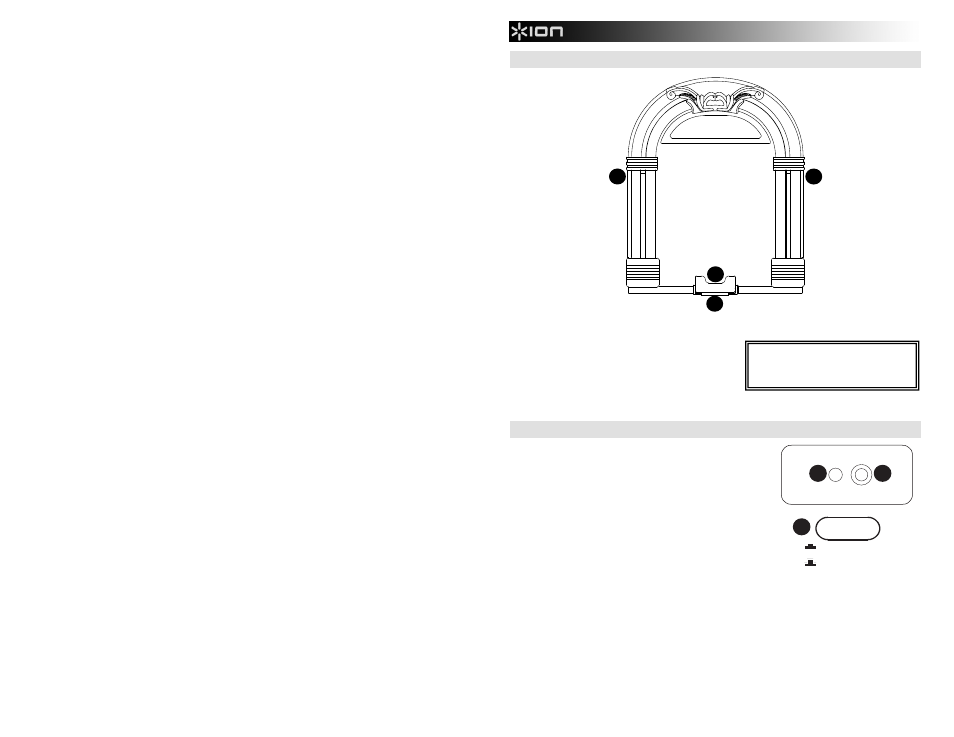

FRONT PANEL
1. DOCK RELEASE* – When this lever is pressed down, the
iOS device will lean forward, allowing you to easily grasp
and pull up the iOS device, removing it from the dock.
2. DOCK – To connect your iOS device to JUKEBOX DOCK,
gently slide it onto the 30-pin connector here.
3. SPEAKERS – Plays back the audio from your iOS device.
Select from your iTunes library or favorite jukebox app (works with most jukebox apps).
REAR PANEL
1. POWER – Use the included power adapter (12V DC, 3A, center pin-
positive) to connect JUKEBOX DOCK to wall power.
2. LINE IN – This stereo 1/8” line-level input can be used to connect a
CD player, MP3 player, or other audio source. To adjust the volume
of the audio signal, adjust the output volume of your audio source.
3. POWER BUTTON – Press this button to turn JUKEBOX DOCK on
or off.
*Note: To ensure safe removal of your iOS
device, gently press the DOCK RELEASE
down and securely grasp the iOS device
when it leans forward from the dock.
