Vk series – General Pump VK Repair Manual User Manual
Page 14
GENERAL PUMP
A member of the Interpump Group
VK SERIES

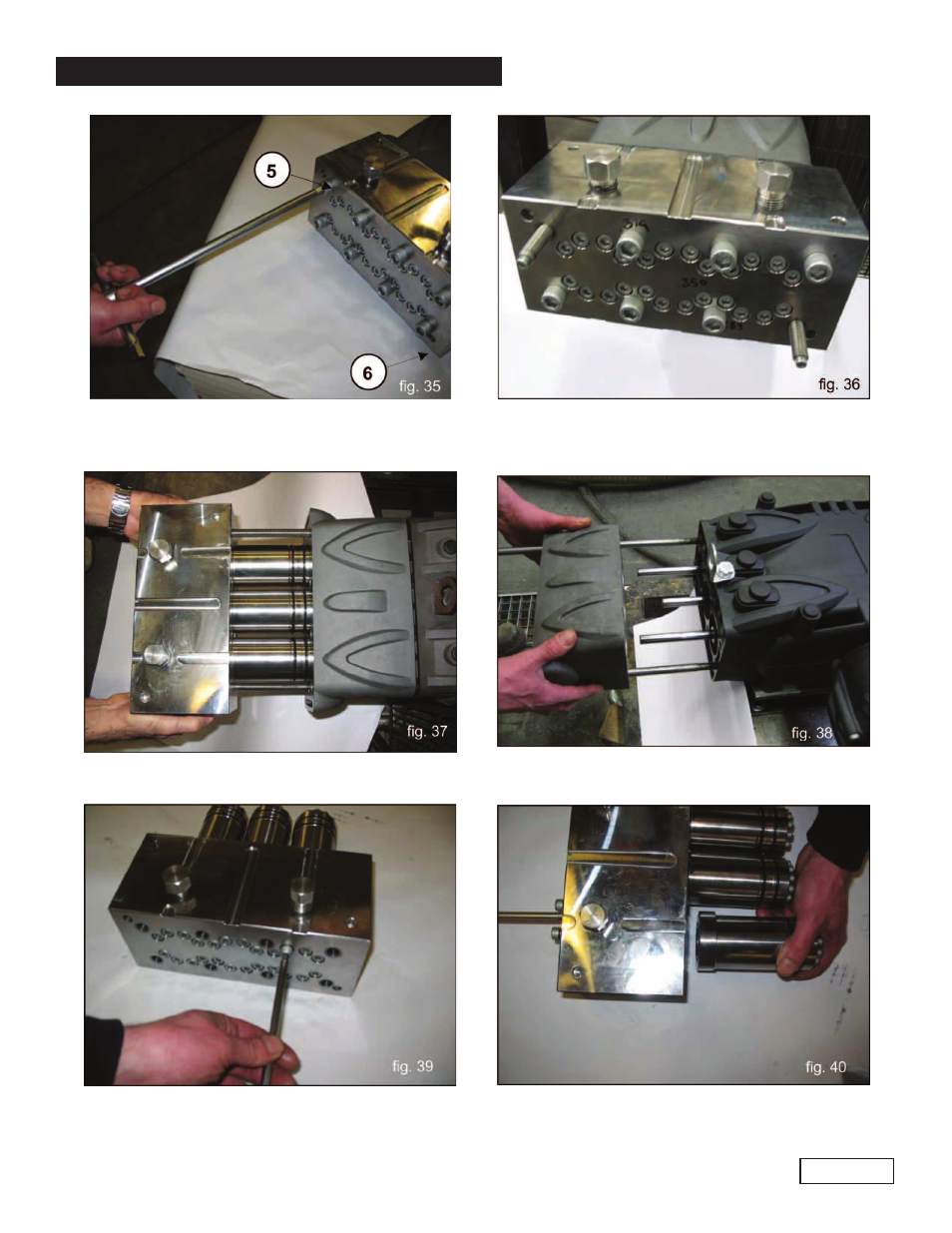

B) Unscrew the M12x260 head fixing screws number 5 and number 6 as indicated in fig. 35, replacing them
with two screws - slave pin #G27508200 as indicated in fig. 36, then continue with the remaining screws.
Page 14
C) Separate the head and the spacer for the pump casing liners as indicated in fig. 37-38.
D) Remove the M8x100 head liner fixing screws as indicated in fig. 39 and proceed as indicated in fig. 40.
