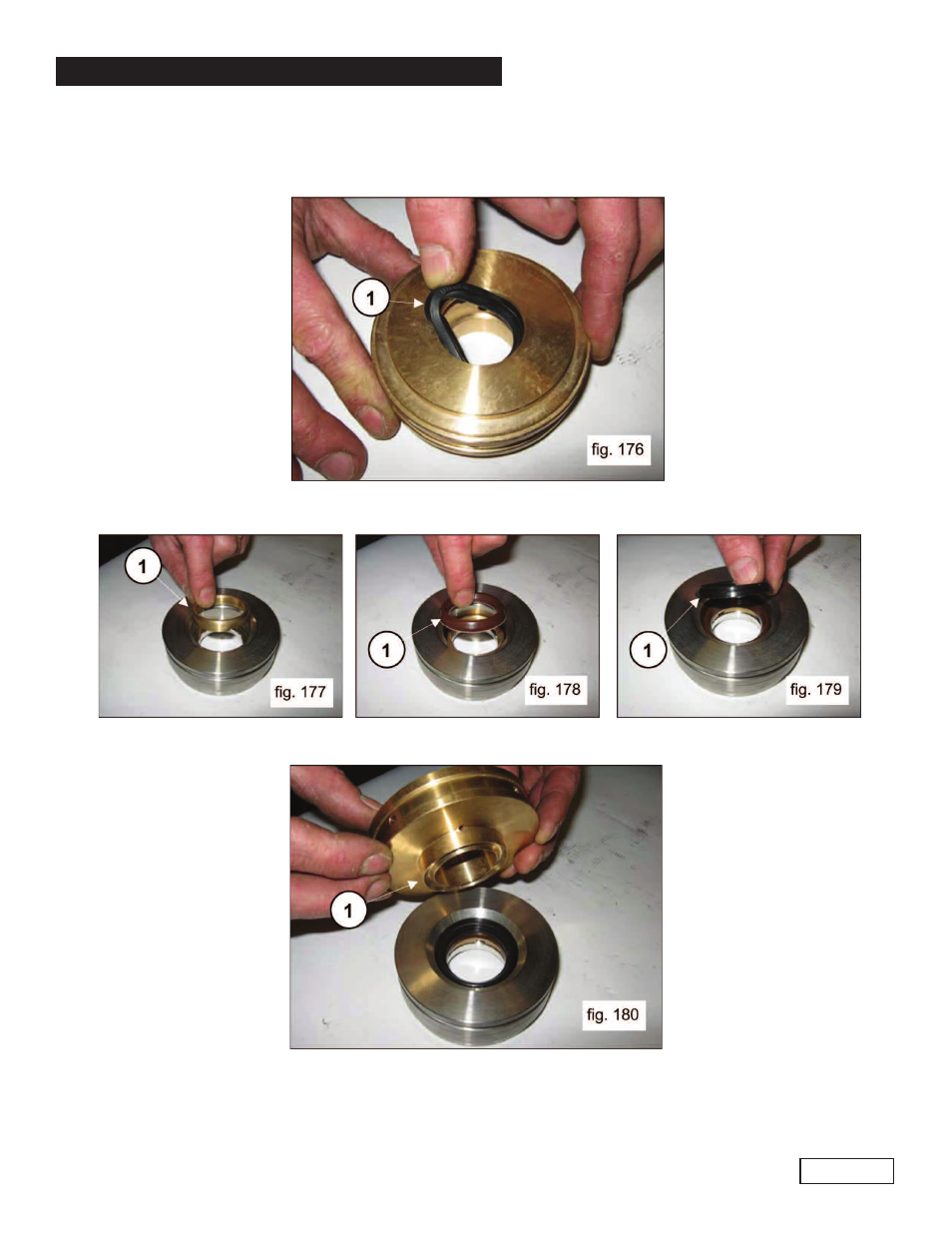

Install the head ring (1, fig. 177), the high pressure seal (1, fig 178) and the restop ring (1, fig. 179).
Join the seals supports to the liner (1, fig. 180).
Insert the low pressure seal in the seal support (1, fig. 176) paying attention to the mounting direction which
requires that the sealing lip be set forward (toward the head).
