MKS SERIES

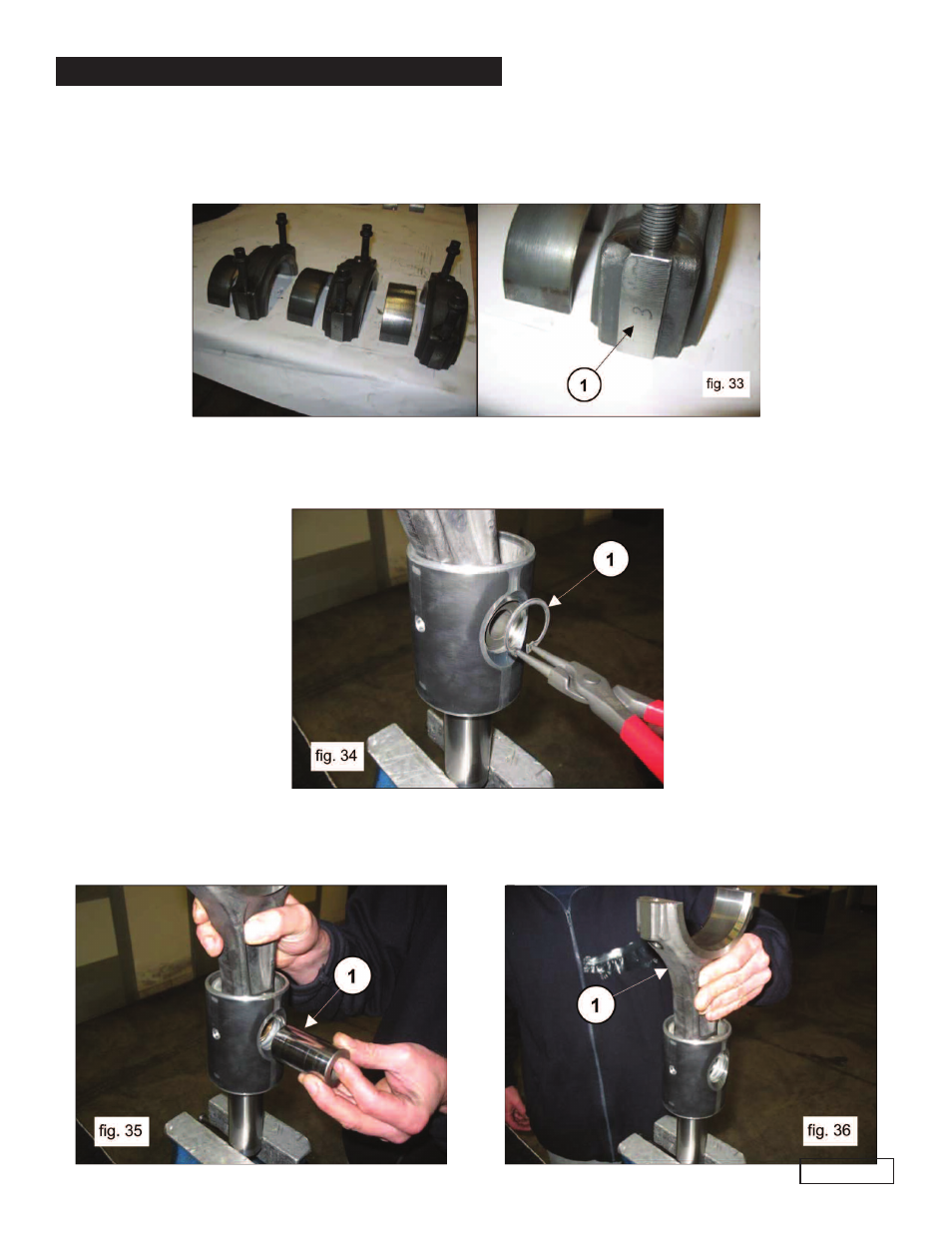

Couple the connecting rods with the previously disassembled caps; be sure to respect numbering (1, fig. 33).
Remove the pin (1, fig. 35) and then remove the connecting rod (1, fig. 36).
Remove the two seeger rings that block the plunger pin by using the appropriate tool (1, fig. 34).
