FEC AFC1200 User Manual
Page 24
)(& ,QF
4.8.2 Allen Bradley Output Card 1771-OQ16 Axis Unit Connection

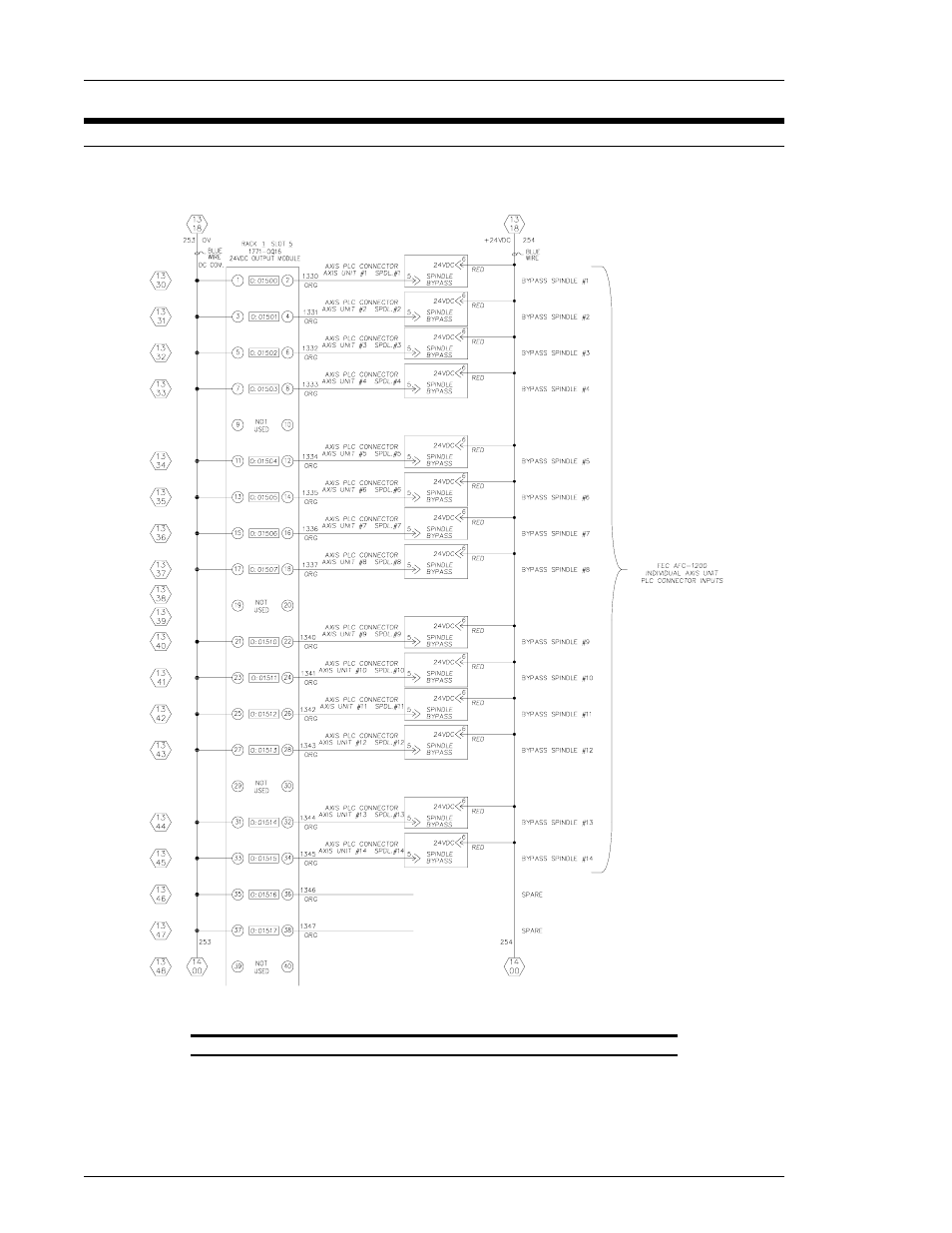

FIG. 4-8-2 Allen Bradley Output Card 1771-OQ16 Axis Unit Connection
NOTE: The +12~24 VDC Common is connected directly to the Axis Unit PLC connector on pin # 6.
The 0 VDC Common is connected to Pin # 7, and is shown on the PLC input card sheet for
the Axis Unit (FIG. 4-8-4).
Chapter 4: System Setup and Wiring
User Console Version A3.53
Page 4-24
