AFC1500 Multi-2 Unit Hardware Manual (Rev2.1)

PAGE 5 - 60

Chapter 5: Control Interfaces

5.11.5 PLC Message Transfer Setup Example

This example procedure is written using Rockwell Automation RXLogix5000 V15.02.00 and Allen-
Bradley Compact Logix L32E. Please contact your PLC manufacturer for specific setup and
configuration information.
Note: Allen-Bradley Control Logix configures up to 400 bytes per block with a maximum of 5 blocks
of data for a total of 2000 bytes.

Configuration

1. Register the Multi-2 Unit to the network.

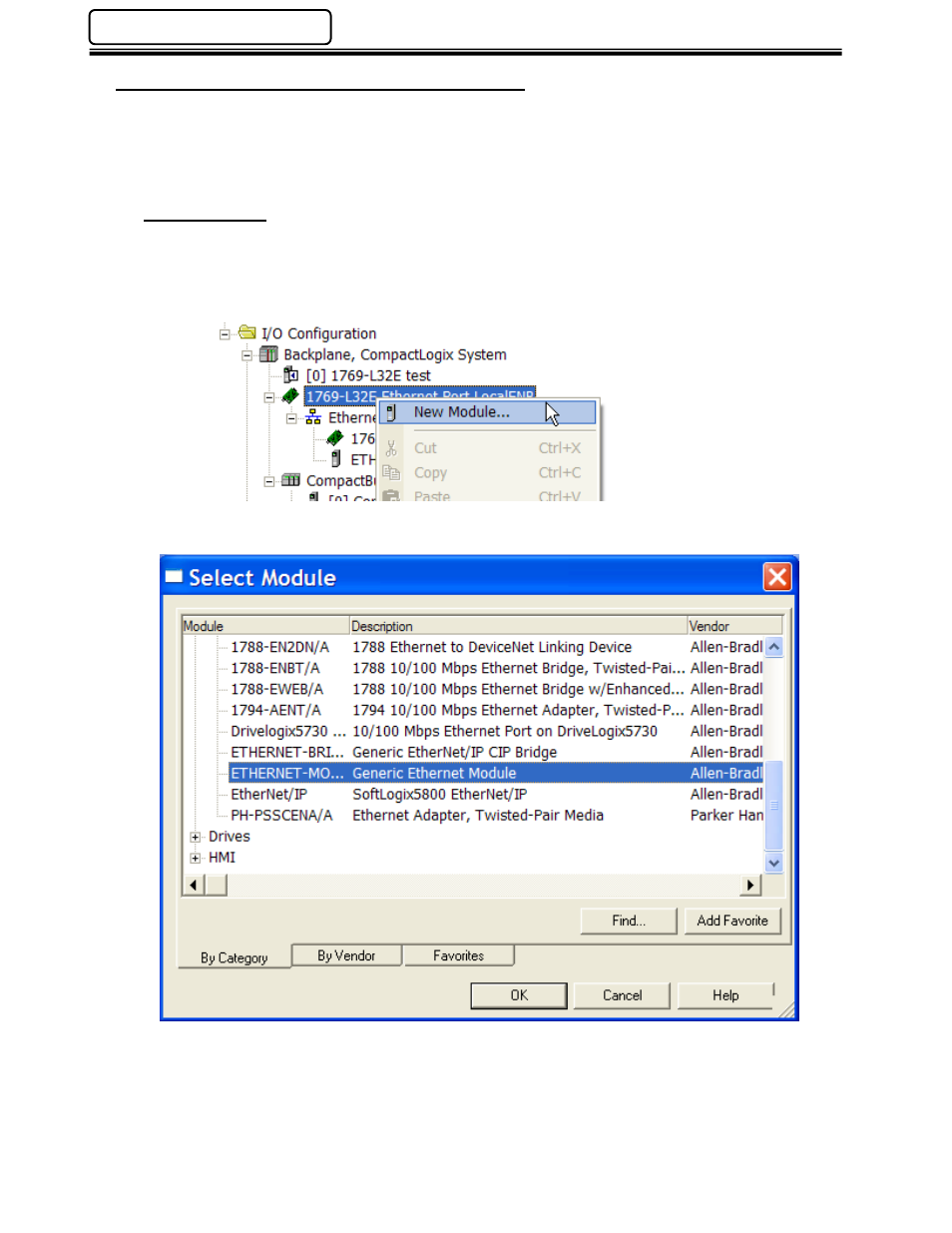

In the I/O configuration, right click on “Ethernet Port Local ENB” and select “New Module”.

Select

“Generic Ethernet Module” from the “Module” list and click the OK button.
