AIMB-258 User Manual
26

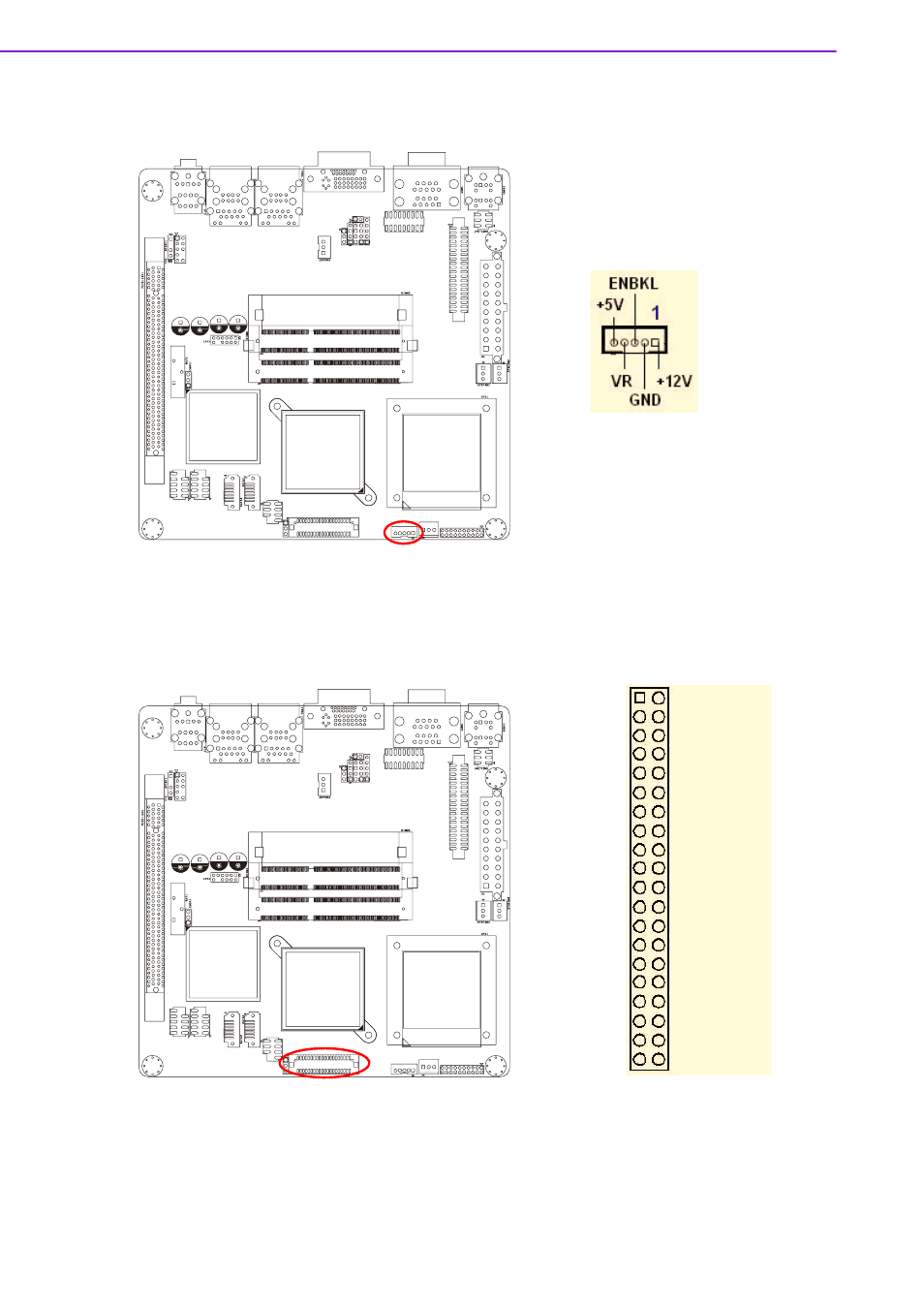

1.14.14
LCD Inverter Connector (VP1)
1.14.15
LVDS Connector (LVDS1)
VDDSAFE_1
VDDSAFE_2
GND_1
GND_7
VDDSAFE_3
VDDSAFE_4
OD0-
ED0-
OD0+
ED0+
GND_2
GND_8
OD1-
OD1+
ED1-
ED1+
GND_3
GND_9
OD2-
OD2+
ED2-
ED2+
GND_4
GND_10
OCK-
OCK+
ECK-
ECK+
GND_5
GND_11
DDC_CLK
DDC_DAT
GND_6
GND_12
NC
NC
HPLG
NC
NC
VCON
