Lectrosonics Quadra User Manual
Page 25
Digital IEM System

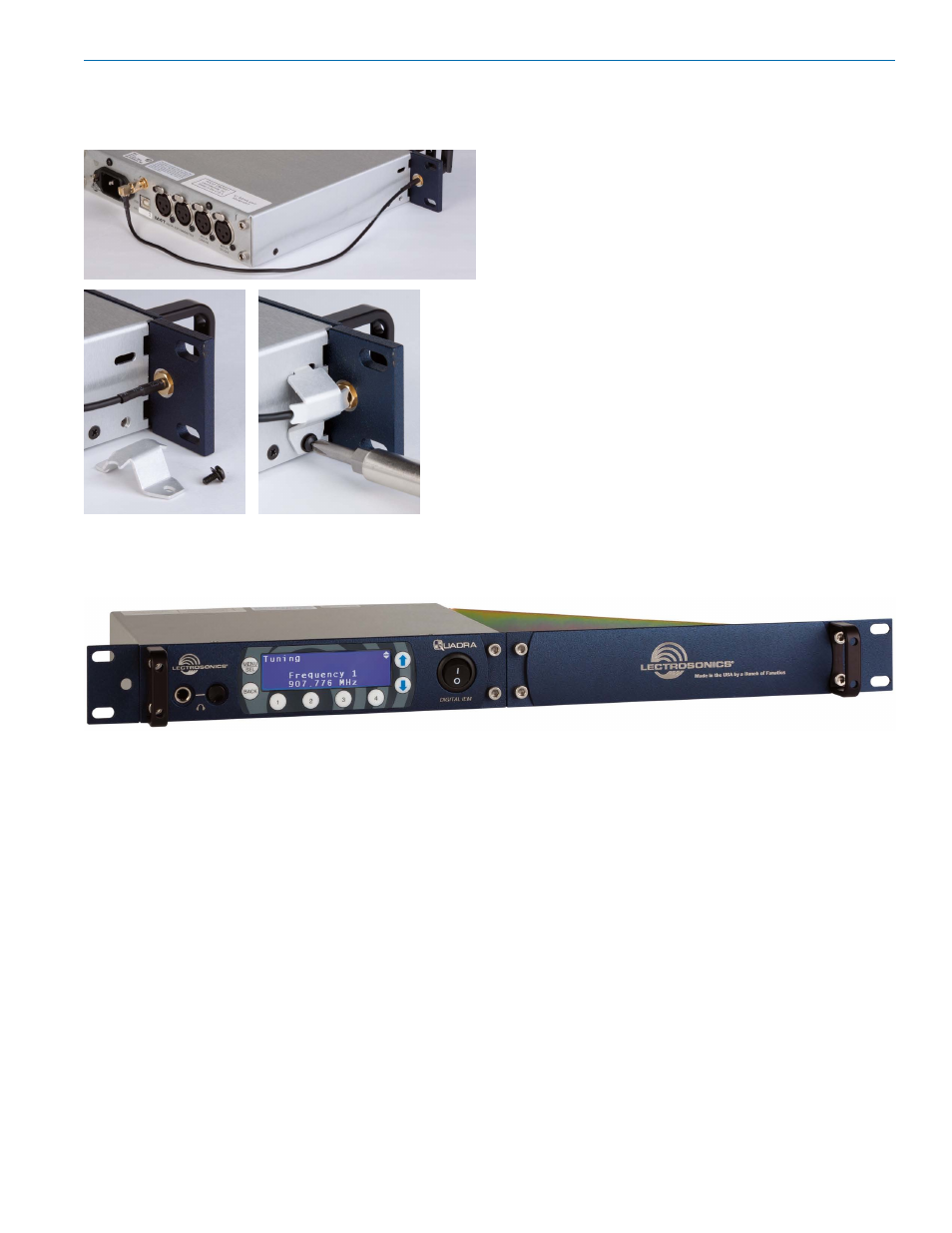

9. Attach the supplied antenna and antenna connec
tor guard. Note that this item will fit tightly and is
meant to deform slightly during installation.
The finished assembly will position the transmitter in
the rack as shown here. In this example, the antenna
loop through is not being used.
Rio Rancho, NM
25
