INSTEON Load Controller 220V / 240V 30 Amp, N/O and N/C (2477SA1, 2477SA2) Quick Start User Manual
Page 2
Page 2 of 2
Rev. 07-16-2012
INSTEON Limited Warranty – INSTEON warrants to original consumer of this product for a period of 2 years from date of purchase, this product will be free
from defects in material and workmanship and will perform in substantial conformity with its Owner's Manual. Warranty shall not apply to defects caused by
misuse or neglect.
Protected under U.S. and foreign patents (see www.insteon.com) © Copyright 2012
INSTEON, 16542 Millikan Ave., Irvine, CA 92606, 800-762-7845, www.insteon.com
Quick Start Guide INSTEON 240V Load Controller (Dual-Band)
*
Setup modes will automatically time out after 4 minutes.
Complete Instructions, Troubleshooting and Tech Support
Owner’s Manual and current Quick Start Guide:
Call: INSTEON Support Line at 800-762-7845
Linking 240V Load Controller as an INSTEON Responder
1) Use the Set button on 240V Load Controller to set the load to the state you wish to activate from the INSTEON
controller (turn it on if you wish it to be on or off if you wish it to be off when the controller activates the scene)
2) Set the controller to linking mode.* (For most controllers, press and hold an on or scene button for 10 seconds or the
Set button for 3 seconds.)
3) Press and hold 240V Load Controller Set button until it double-beeps (3 seconds)
The 240V Load Controller Status LED will flash once, and then turn on solid green if the load is on or solid red if
it is off
4) Confirm that linking was successful by tapping the button you just linked to on the controller
240V Load Controller will respond appropriately

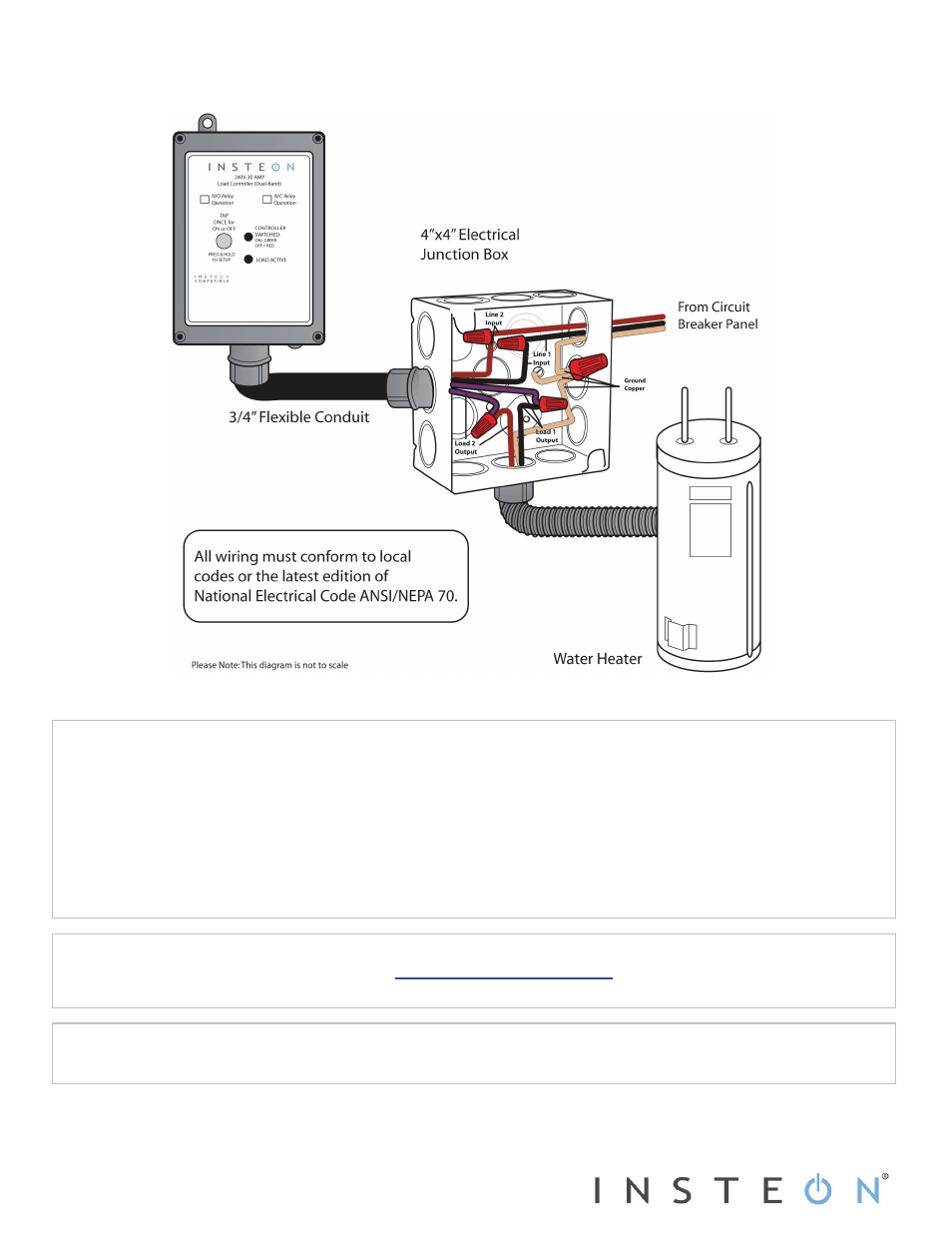

Figure 1
