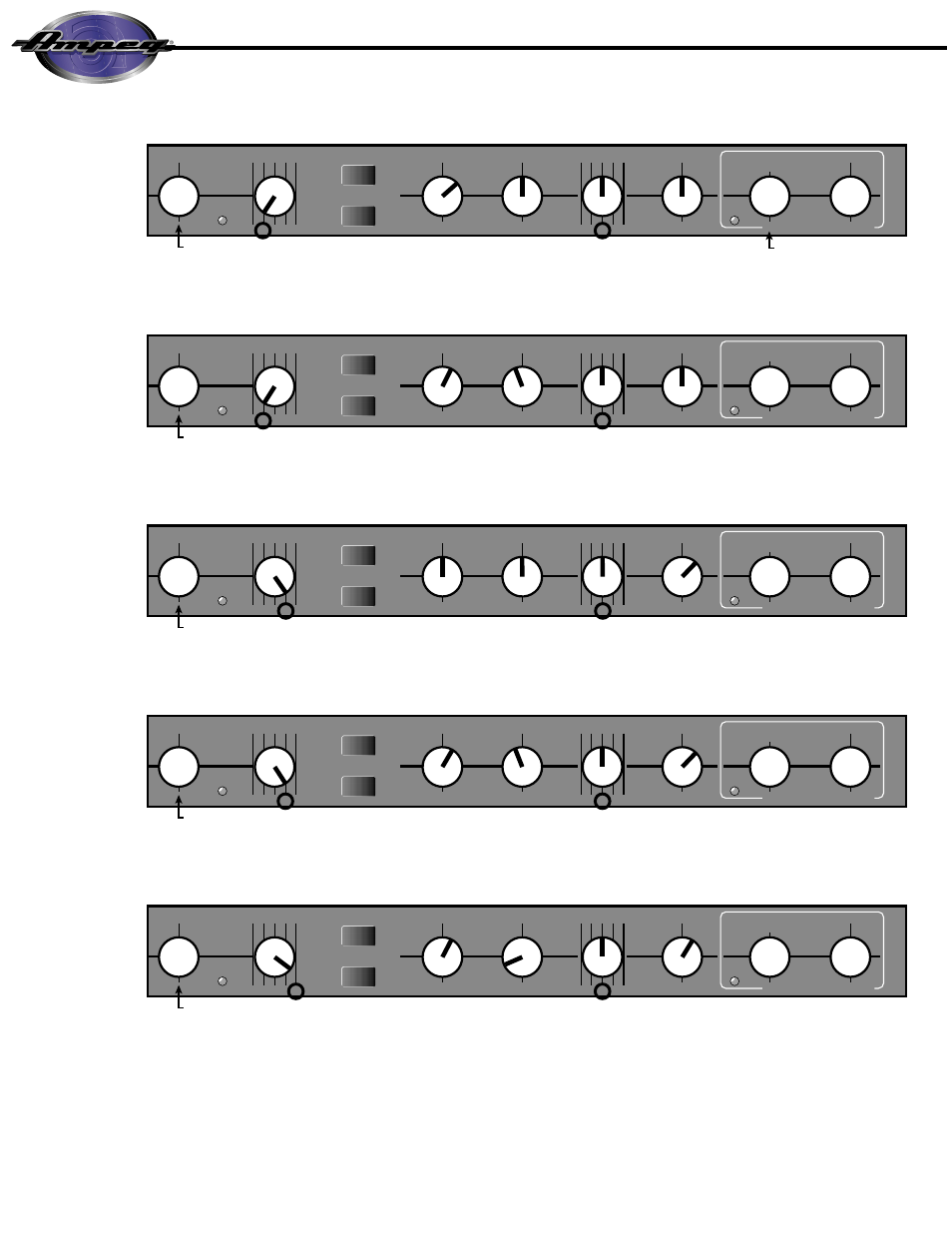

Some Suggested Settings
SVT-8 PRO Bass Amplifier
0 10
1 2 3 4 5
PEAK
ULTRA HIGH
BRIGHT
GAIN
0 10 0 10
MIDRANGE
0 10
ON
TREBLE DRIVE POWER
POWER REDUCTION
PULL ON
W O L A R T L U S S A B
1 2 3 4 5
FREQUENCY
OUT
OUT
ADJUST UNTIL PEAK LED FLASHES PULL - SET AS NEEDED
0 10
1 2 3 4 5
PEAK
ULTRA HIGH
BRIGHT
GAIN
0 10 0 10
MIDRANGE
0 10
ON
TREBLE DRIVE POWER
POWER REDUCTION
PULL ON
W O L A R T L U S S A B
1 2 3 4 5
FREQUENCY
IN
OUT
ADJUST UNTIL PEAK LED FLASHES
0 10
1 2 3 4 5
PEAK
ULTRA HIGH
BRIGHT
GAIN
0 10 0 10
MIDRANGE
0 10
ON
TREBLE DRIVE POWER
POWER REDUCTION
PULL ON
W O L A R T L U S S A B
1 2 3 4 5
FREQUENCY
OUT
OUT
ADJUST UNTIL PEAK LED FLASHES
0 10
1 2 3 4 5
PEAK
ULTRA HIGH
BRIGHT
GAIN
0 10 0 10
MIDRANGE
0 10
ON
TREBLE DRIVE POWER
POWER REDUCTION
PULL ON
W O L A R T L U S S A B
1 2 3 4 5
FREQUENCY
IN
OUT
ADJUST UNTIL PEAK LED FLASHES
0 10
1 2 3 4 5
PEAK
ULTRA HIGH
BRIGHT
GAIN
0 10 0 10
MIDRANGE
0 10
ON
TREBLE DRIVE POWER
POWER REDUCTION
PULL ON
W O L A R T L U S S A B
1 2 3 4 5
FREQUENCY
IN
OUT
ADJUST UNTIL PEAK LED FLASHES
Rack Mounting
When mounting the SVT-8 PRO into a rack, the four bottom feet should be removed to maintain the two rack space height of the ampli-
fier. Be sure to keep the feet and their attachment bolts for future use. If the feet are reinstalled, never use screws which will protrude
farther into the amplifier than the original hardware!
The rack must be a high quality enclosure capable of securely supporting the weight of the amplifier. Tighten the mounting screws
securely through the amplifier’s face plate, into the rack rails. Check the rack and mounting screws occasionally to ensure a continual-
ly safe and secure installation. Additional rack ears are provided on the rear of the amplifier for connection to an additional support brack-
et. It is highly recommended that this additional support be used when rack mounting the amplifier.
Ampeg Rock:
Jazz:
Country:
Funk:
Funk Popping:
