1-5.

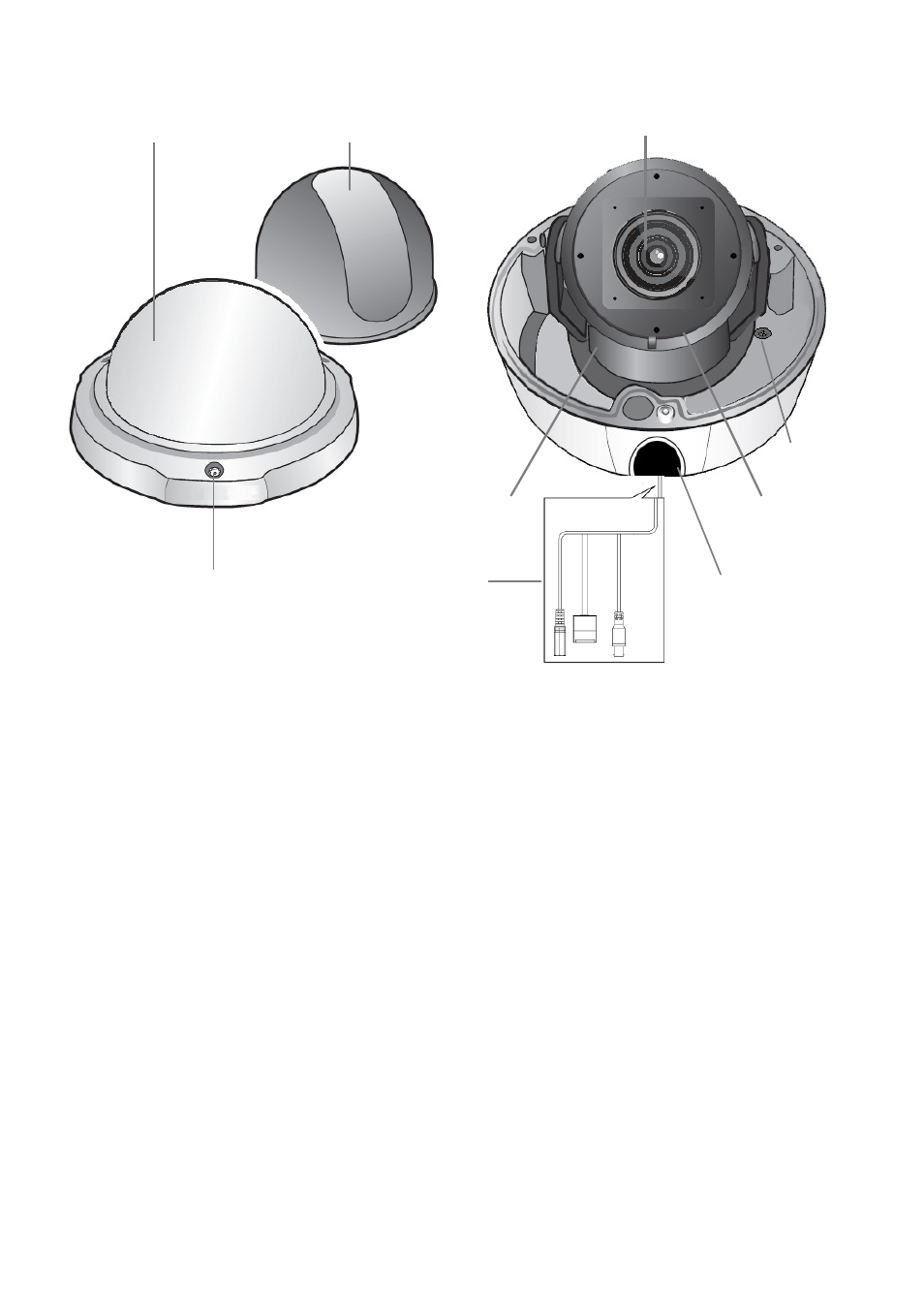

Product Parts Description
Cover: Dome cover support vandal resistance function.
Shield cover: To cover inside of IP camera.
Hexagon screw: Loosen 3 ea screws to take off the cover to adjust the view angle.
Pan / Tilt base: Control panning/ tilting angle of camera.
Pan screw: Loosen 2 ea screws to adjust the pan position.
Lens: 3.6mm (F1.4) fix megapixels Lens module.
Cable hole: Cable output port for wall/ceiling application.
Cables:
a.
Power cable: Connect to DC12V power adapter when use none POE Hub.
b.
Network port: Plug the RJ-45 LAN cable of POE switch Hub. The Green LED on
for power OK; Green LED flash for communication.
c.
BNC cable: Provide analog video signal for lens focus & view angle adjustment.
Pan base
Tilt base
Cover
Lens
Hexagon screw
Cable hole
Shield case
Cable
Pan Screw
