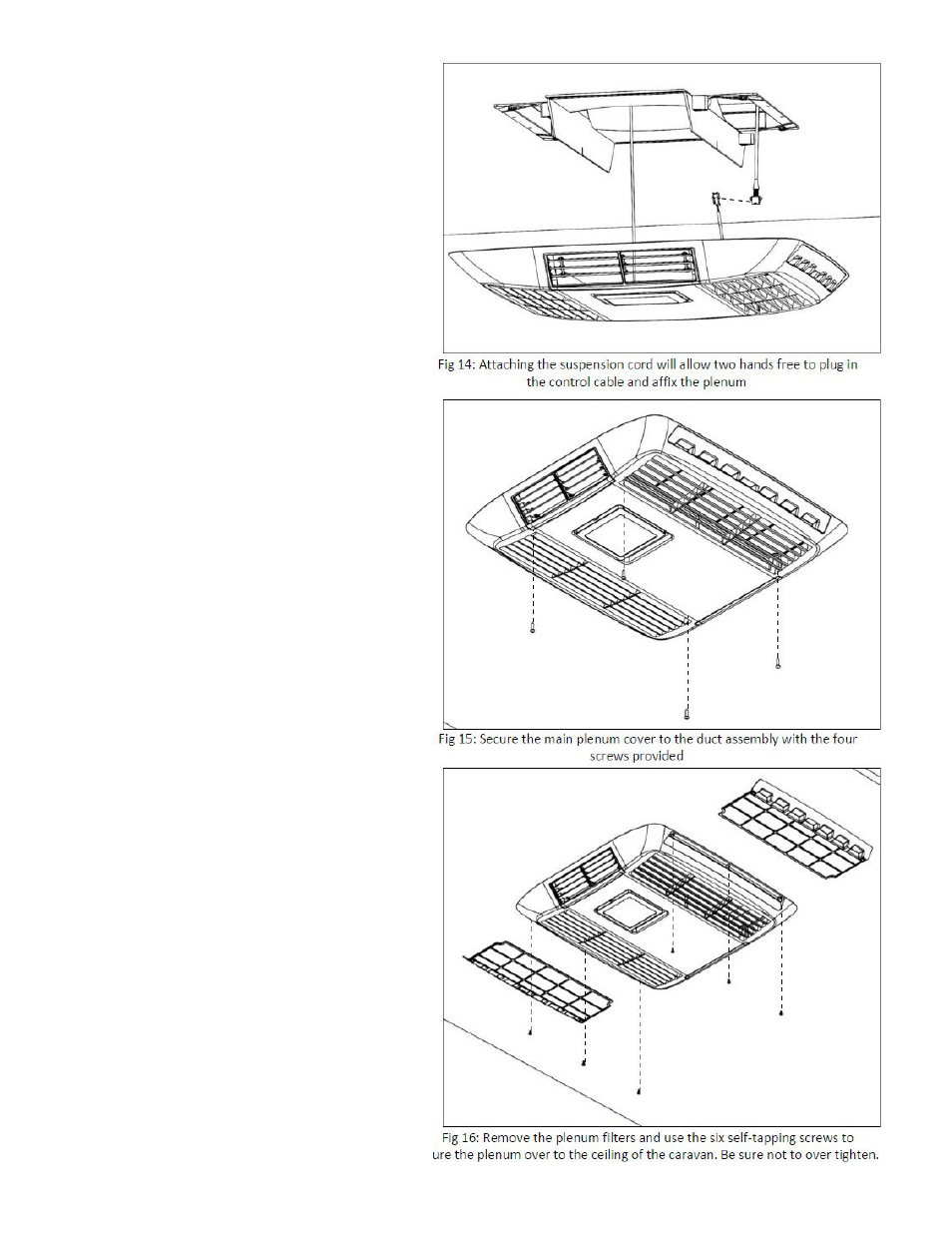

ATTACH PLENUM COVER

- Secure the main plenum cover to the duct
assembly with the 4 screws provided (Fig
15).
TIP: It is important that these screws are
not over tightened otherwise the plenum
may crack.
- Remove the filter elements by pulling
them out of the plenum, and use the six
self-tapping counter sunk screws to secure
the covers edges to the vehicle ceiling (Fig
16). In some instances a very small pilot hole
may need to be drilled to guide the screws
into place.
- Replace the return air filters by sliding them
into the plenum until they click into place
-Your installation is now complete.












































INSTALLATION IS NOW
COMPLETE
