Technical Specifications
General 815PL 880PL-10MA
Input Voltage
120 V, 50/60 Hz for -A version
230 V, 50/60 Hz for -B version
Output Voltage 0 -15 kV 0 - 80 kV
Output Current 5 mA 10 mA
Polarity Negative output, positive ground
Metering + 2% full scale accuracy
Ripple
0.5% per mA with rated resistance
Weights and Dimensions (W x H x D, net weight, ship weight)
815PL 17” x 14” x 15” (43 x 36 x 38 cm) 49 lbs (22 kg) 64 lbs (29 kg)
880PL-10MA 17” x 14” x 15” (43 x 36 x 38 cm) 78 lbs (35 kg) 90 lbs (41 kg)
Scope of Supply
Qty. 1 DC Power Supply (815PL or 880PL-10MA)
Qty. 1 Input Line Cord, wire & plug, grounded type 6 feet (1.8 m)
Qty. 1 Return Cable, 25 feet (7.6 m)
Qty. 1 High Voltage Output cable, shielded RG34/U with alligator
clip and rubber insulated boot, 25 feet (7.6 m)
Qty. 1 Interlock Plug
Qty. 1 Calibration Certificate
Qty. 1 User’s Manual
Ordering Information
System
15 kV, 5 mA DC Hipot 815PL-A or 815PL-B
80 kV, 10 mA DC Hipot 880PL-10MA-A or
880PL-10MA-B
Accessories
Spare Parts Kits SPK1-815PL or
SPK1-880PL-10MA

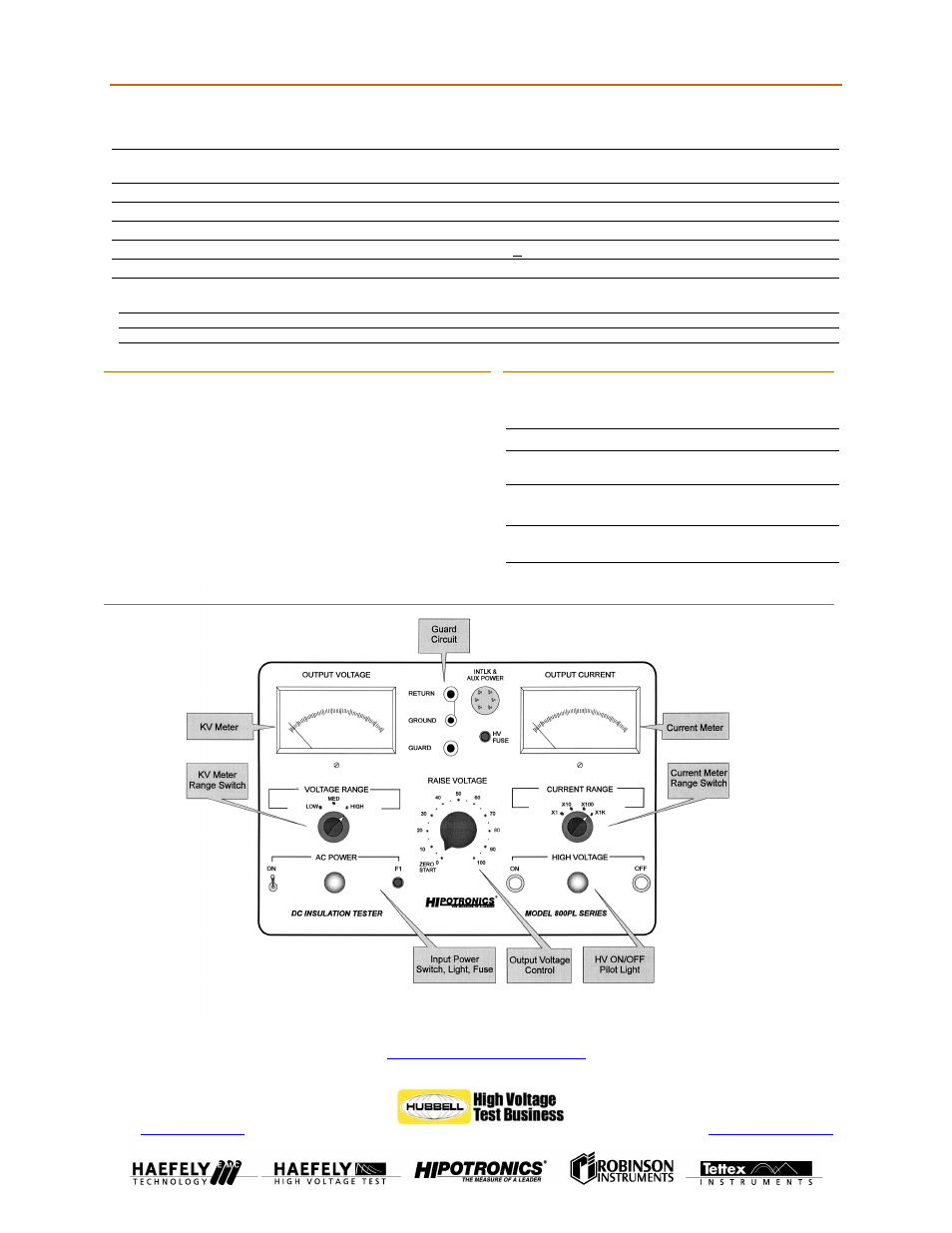

Control Panel
